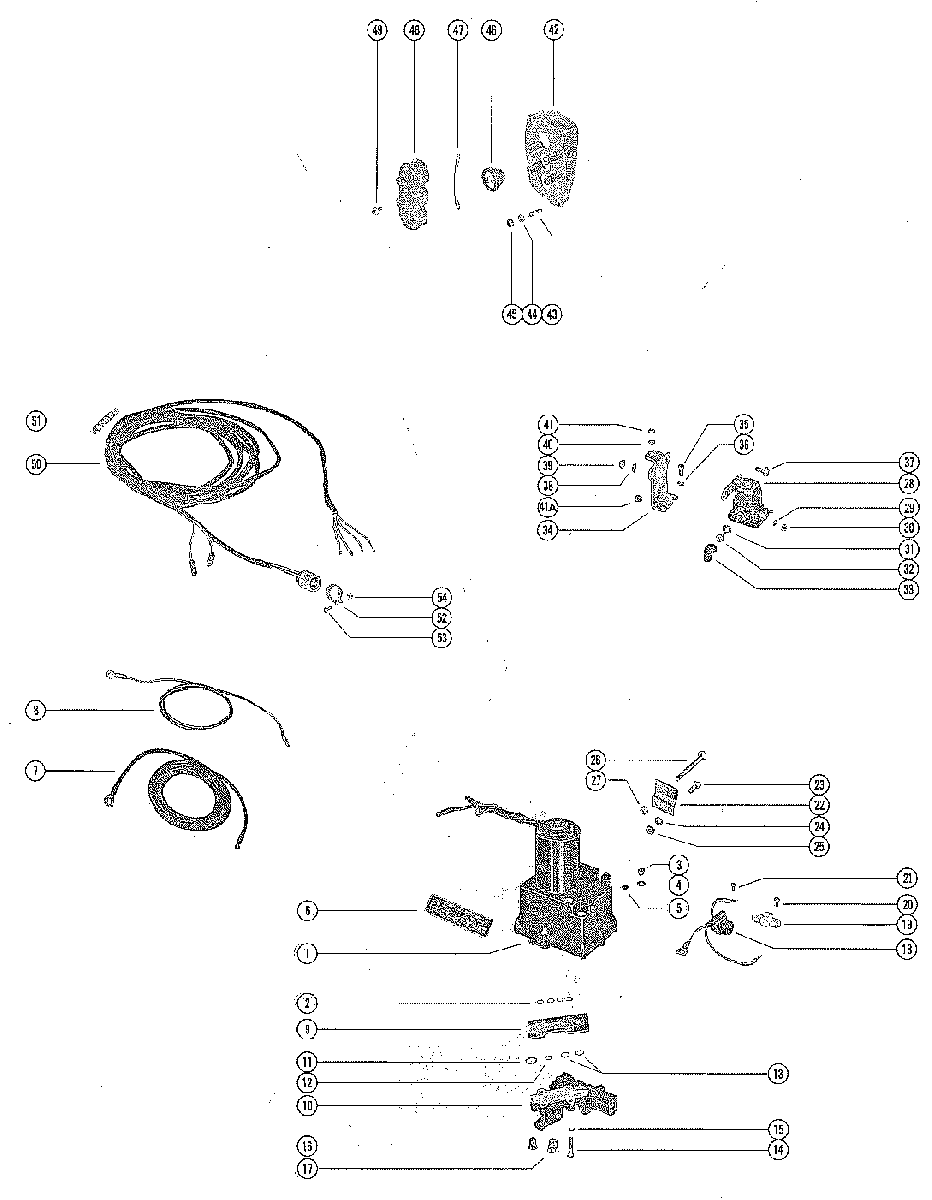

HYDRAULIC PUMP AND CONTROL PANEL для Mercury - 1500 8005615 THRU 8052649
-
№АртикулНазвание
-
192975A32 HYDRAULIC PUMP ASSEMBLYHYDRAULIC PUMP ASSEMBLY
-
225-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
-
310-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
412-191833 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREWWASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
-
510-62269 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
637-55901 DECAL, INSTRUCTION - HYDRAULIC PUMPDECAL, INSTRUCTION - HYDRAULIC PUMP
-
732979 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
832988 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
-
945336 PLATE, MANIFOLDPLATE, MANIFOLD
-
1045197A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
--25-48171 "O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE"O" RING, HYDRAULIC PUMP TO MANIFOLD PLATE
-
1125-45254 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4"O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE (3/4"O.D.)
-
1225-48171 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE (1/2"O.D.)
-
1325-45253 "O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8"O.D.)"O" RING, CONTROL VALVE TO MANIFOLD PLATE (5/8"O.D.)
-
1410-56500 SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP
(1 1/4")SCREW, CONTROL VALVE AND MANIFOLD PLATE TO HYDRAULIC PUMP
(1 1/4") -
1513-26992 LOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREWLOCKWASHER, CONTROL VALVE AND MANIFOLD PLATE SCREW
-
1622-38609 PLUG, CONTROL VALVE (3/8-24")PLUG, CONTROL VALVE (3/8-24")
-
1722-46008 PLUG, CONTROL VALVE (1/2-20")PLUG, CONTROL VALVE (1/2-20")
-
1845325A1 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
1945559 TERMINAL BLOCK, HYDRAULIC PUMPTERMINAL BLOCK, HYDRAULIC PUMP
-
2010-35519 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
-
2110-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
-
2245377T BRACKET, MOUNTING - HYDRAULIC PUMP TO BOATBRACKET, MOUNTING - HYDRAULIC PUMP TO BOAT
-
2310-35386 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1")
-
2413-39107 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
2511-21908 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
2610-68298 BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")BOLT, HYDRAULIC PUMP TO BOAT (3 1/4")
-
2711-35304 NUT, HYDRAULIC PUMP BOLTNUT, HYDRAULIC PUMP BOLT
-
2825661T1 STARTER SOLENOIDSTARTER SOLENOID
-
2913-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
3011-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3113-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
3211-22053 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
3346265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
3474407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3510-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
-
3613-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3710-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
-
3813-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
3911-21825 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
4013-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLTLOCKWASHER, HYDRAULIC PUMP THRU BOLT
-
4111-68219 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
41A49342 BUMPER, RUBBER - SOLENOID BRACKETBUMPER, RUBBER - SOLENOID BRACKET
-
--55642A13 CONTROL PANEL ASSEMBLY, COMPLETECONTROL PANEL ASSEMBLY, COMPLETE
-
4255642A17 PANEL, CONTROLPANEL, CONTROL
-
4316-55422 STUD, CONTROL PANEL TO BAOT (2")STUD, CONTROL PANEL TO BAOT (2")
-
4412-24676 WASHER, CONTROL PANEL STUDWASHER, CONTROL PANEL STUD
-
4511-27164 NUT, CONTROL PANEL STUDNUT, CONTROL PANEL STUD
-
4655738A1 SWITCH, PUSH BUTTON - CONTROL PANELSWITCH, PUSH BUTTON - CONTROL PANEL
-
4748078 JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4")JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3-1/4")
-
4753107 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
-
4855641 RETAINER, PUSH BUTTON SWITCHRETAINER, PUSH BUTTON SWITCH
-
4910-62568 SCREW, SWITCH RETAINER TO CONTROL PANEL (3/8")SCREW, SWITCH RETAINER TO CONTROL PANEL (3/8")
-
5084-87394A20 HARNESS, CONTROL PANEL (20 FEET)HARNESS, CONTROL PANEL (20 FEET)
-
5133865 BINDER, NYLON - CONTROL PANEL HARNESSBINDER, NYLON - CONTROL PANEL HARNESS
-
5295814 CLAMP, HARNESS FASTENINGCLAMP, HARNESS FASTENING
-
5310-29227 SCREW, HARNESS FASTENING CLAMP (1/2")SCREW, HARNESS FASTENING CLAMP (1/2")
-
5411-34388 NUT, HARNESS FASTENING SCREWNUT, HARNESS FASTENING SCREW
