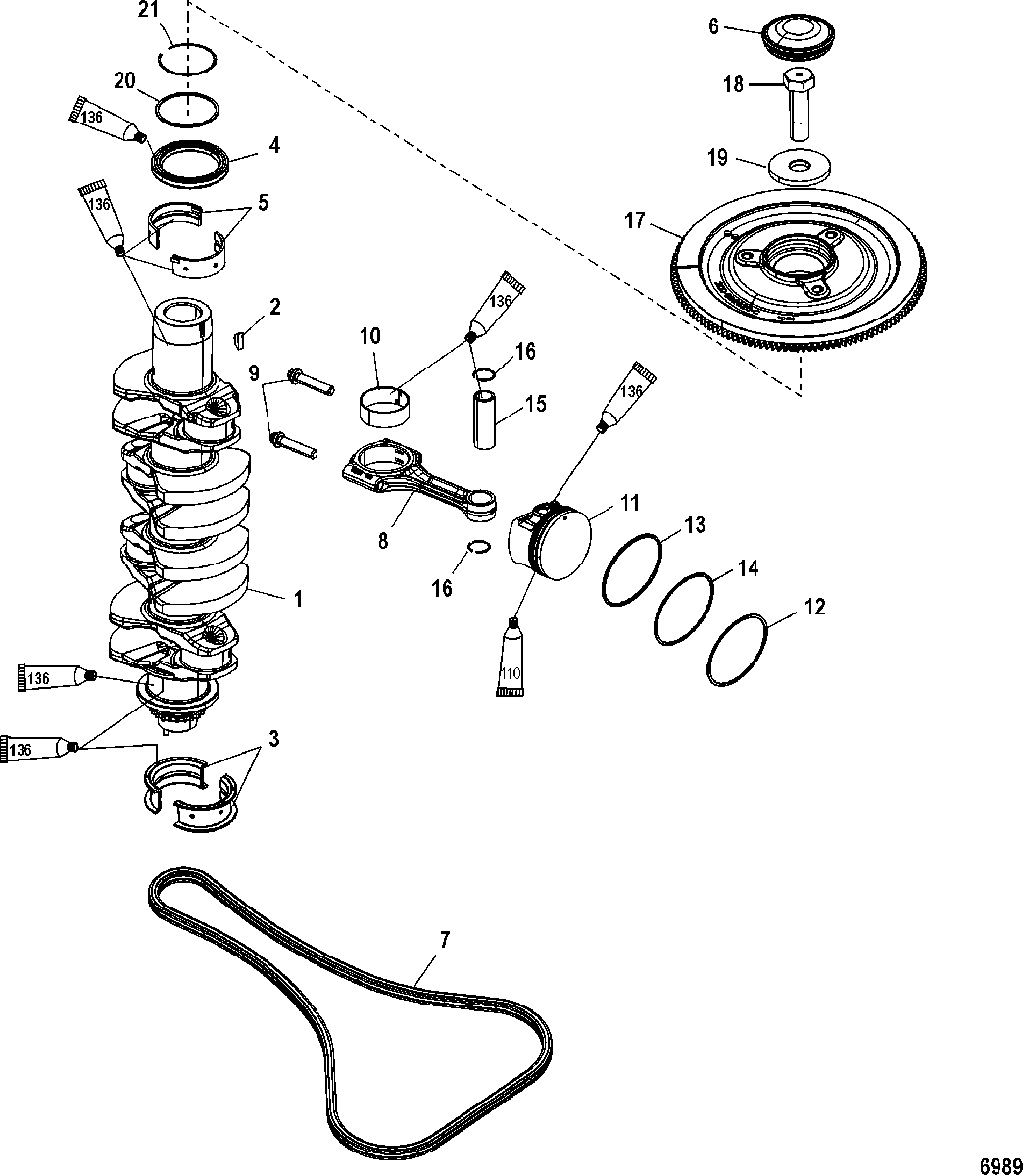

Crankshaft, Pistons and Connecting Rods для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 0P464488 THRU 0P514868
-
№АртикулНазвание
-
1400-880514A02 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
228-91800 KEY, WoodruffKEY, Woodruff
-
323-8M0117003 BEARING, Thrust - Green, Crankshaft-Lower
(Green)BEARING, Thrust - Green, Crankshaft-Lower
(Green) -
323-8M0117001 BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue)BEARING, Thrust - Navy Blue, Crankshaft-Lower
(Navy Blue) -
323-8M0117002 BEARING, Thrust - White, Crankshaft-Lower
(White)BEARING, Thrust - White, Crankshaft-Lower
(White) -
323-8M0117004 BEARING, Thrust - Orange, Crankshaft-Lower
(Orange)BEARING, Thrust - Orange, Crankshaft-Lower
(Orange) -
426-8M0032912 SEAL, Top Main BearingSEAL, Top Main Bearing
-
523-897498T01 BEARING, Main - Green, Crankshaft-Upper
(Green)BEARING, Main - Green, Crankshaft-Upper
(Green) -
523-897498T02 BEARING, Main - Navy Blue, Crankshaft-Upper
(Navy Blue)BEARING, Main - Navy Blue, Crankshaft-Upper
(Navy Blue) -
523-897498T03 BEARING, Main - White, Crankshaft-Upper
(White)BEARING, Main - White, Crankshaft-Upper
(White) -
523-897498T04 BEARING, Main - Orange, Crankshaft-Upper
(Orange)BEARING, Main - Orange, Crankshaft-Upper
(Orange) -
619-885348 CAP, Flywheel BoltCAP, Flywheel Bolt
-
78M0103398 CHAIN, Roller Cam DriveCHAIN, Roller Cam Drive
-
8662-8M0103285 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
910-884441 BOLTBOLT
-
1023-892005A01 BEARING, Connecting Rod - Blue
(Blue)BEARING, Connecting Rod - Blue
(Blue) -
1023-892005A02 BEARING, Connecting Rod - White
(White)BEARING, Connecting Rod - White
(White) -
1023-892005A03 BEARING, Connecting Rod - Orange
(Orange)BEARING, Connecting Rod - Orange
(Orange) -
11700-897737A04 PISTON ASSEMBLYPISTON ASSEMBLY
-
1239-881180A02 RING SET, PistonRING SET, Piston
-
13NSS NOT SOLD SEPARATE, Oil RingNOT SOLD SEPARATE, Oil Ring
-
14NSS NOT SOLD SEPARATE, Piston Ring-SecondNOT SOLD SEPARATE, Piston Ring-Second
-
15NSS NOT SOLD SEPARATE, Piston PinNOT SOLD SEPARATE, Piston Pin
-
1640-896594 CIRCLIPCIRCLIP
-
17200-892920T03 FLYWHEEL ASSEMBLYFLYWHEEL ASSEMBLY
-
1810-880515 BOLT, (M20 x 68 MM)BOLT, (M20 x 68 MM)
-
1912-8M0090010 WASHERWASHER
-
2023-896883 SPACERSPACER
-
2153-896882 RING, RetainingRING, Retaining
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-8M0055433 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
