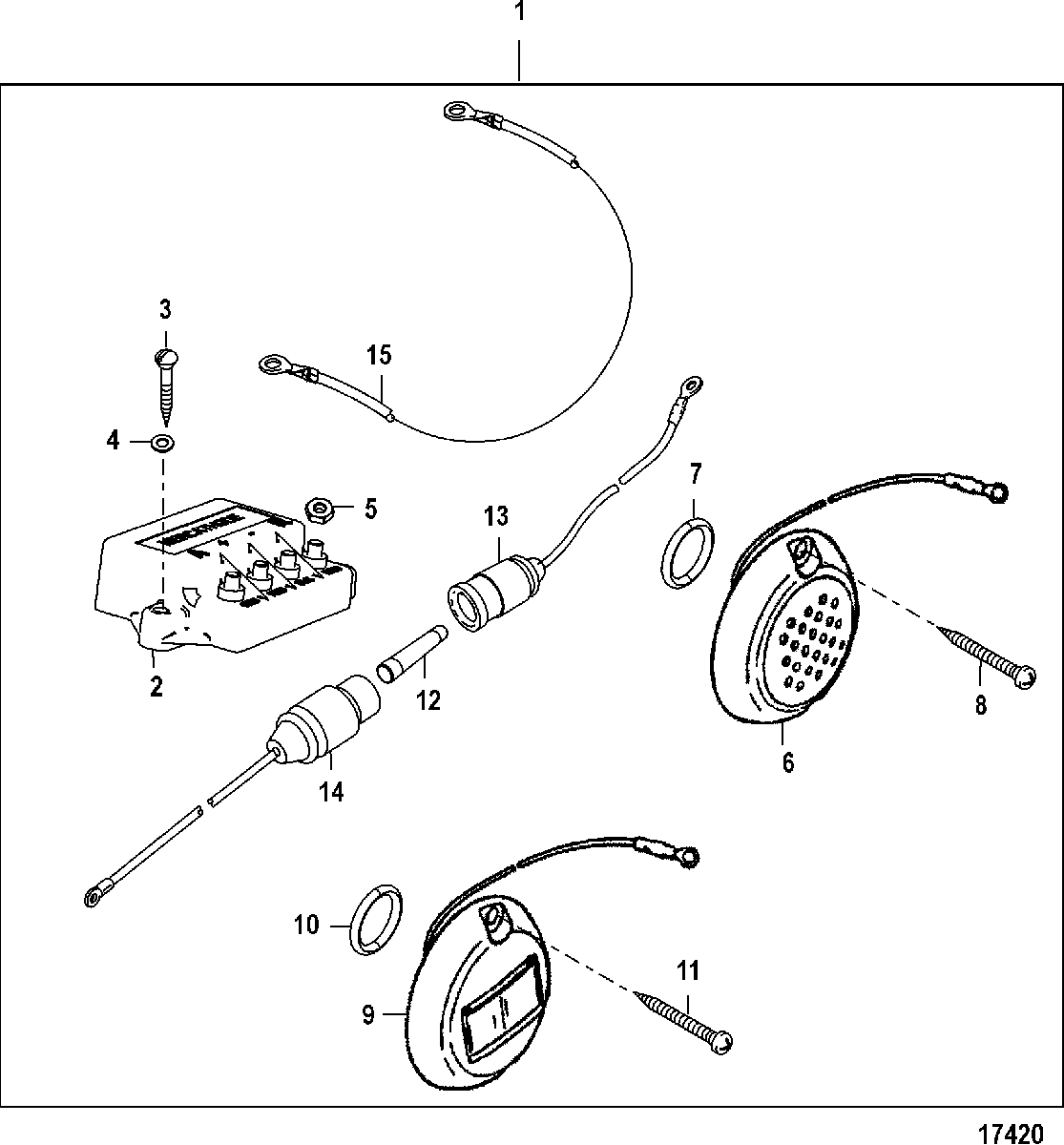

Mercathode Kit для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 0P514869 & Up
-
№АртикулНазвание
-
188334A2 MERCATHODE KITMERCATHODE KIT
-
242600A09 MERCATHODE ASSEMBLYMERCATHODE ASSEMBLY
-
310-22793 SCREW, (#9-14 x .875)SCREW, (#9-14 x .875)
-
412-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
511-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
672958A5 ELECTRODE ASSEMBLYELECTRODE ASSEMBLY
-
725-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
810-87698 SCREW, (#10-16 x 1.250) Stainless SteelSCREW, (#10-16 x 1.250) Stainless Steel
-
997-72957A5 ANODE ASSEMBLYANODE ASSEMBLY
-
1025-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
1110-87698 SCREW, (#10-16 x 1.250) Stainless SteelSCREW, (#10-16 x 1.250) Stainless Steel
-
1288-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1384-95084A10 CABLE ASSEMBLY, (5.00 Inches) RedCABLE ASSEMBLY, (5.00 Inches) Red
-
1484-95084A13 CABLE ASSEMBLY, (64.00 Inches)CABLE ASSEMBLY, (64.00 Inches)
-
1584-79138A8 CABLE ASSEMBLY, (72.00 Inches) BlackCABLE ASSEMBLY, (72.00 Inches) Black
