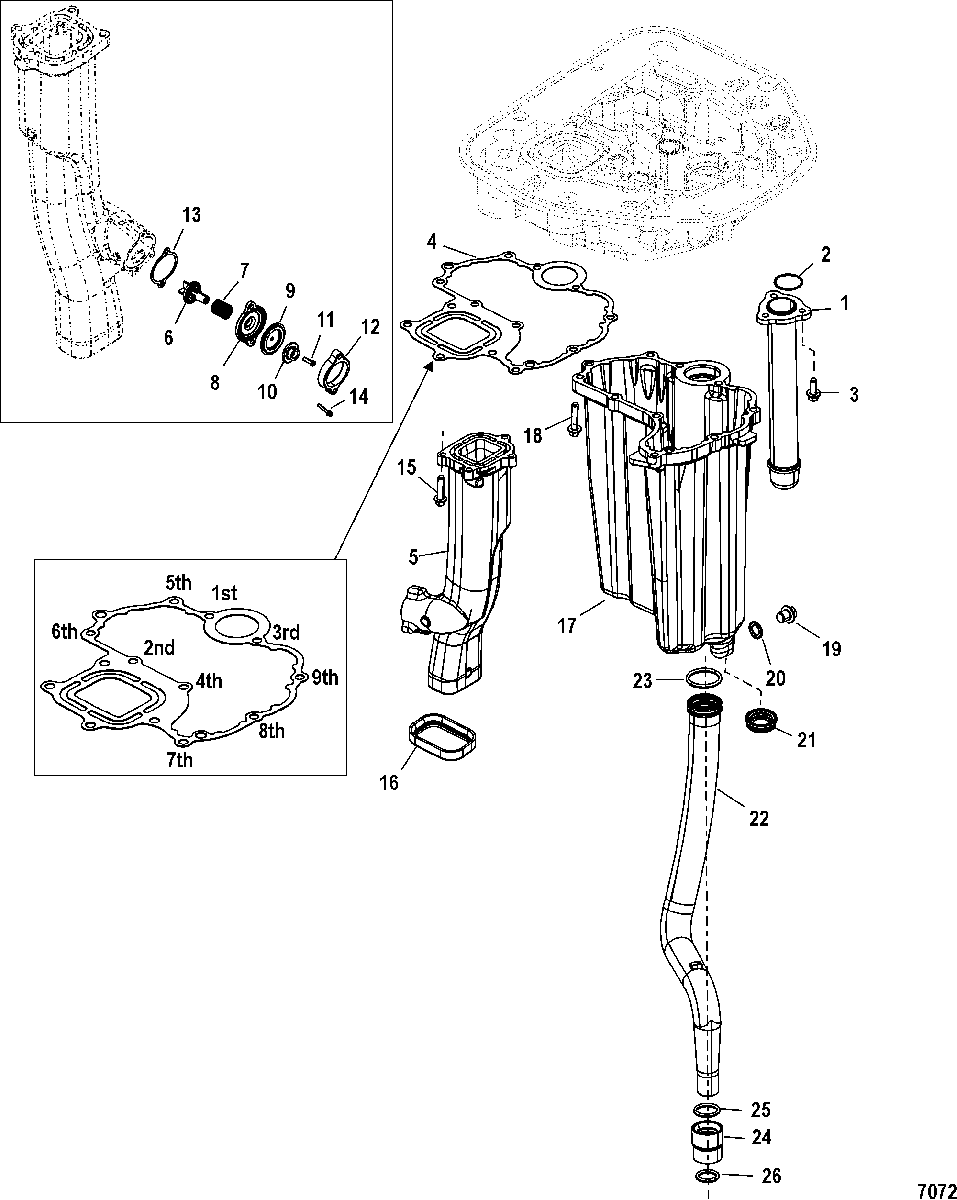

Adaptor Plate-Lower для Mercury - 175 VERADO (4-STROKE)(4 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
1896241 TUBE, Oil PickupTUBE, Oil Pickup
-
225-38780 O-RINGO-RING
-
310-8M0103807 SCREW, (M6 x 25) Stainless SteelSCREW, (M6 x 25) Stainless Steel
-
427-895822 GASKET, Oil SumpGASKET, Oil Sump
-
5895825T01 TUBE ASSEMBLY, ExhaustTUBE ASSEMBLY, Exhaust
-
68M0114707 POPPET ASSEMBLYPOPPET ASSEMBLY
-
724-64878 SPRING, (Black)SPRING, (Black)
-
8893385001 RETAINERRETAINER
-
9648771 DIAPHRAGMDIAPHRAGM
-
10889706 WASHERWASHER
-
1110-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
12893384001 COVER, PoppetCOVER, Poppet
-
1327-889561 GASKET, PoppetGASKET, Poppet
-
1410-88552535 SCREW, (M6 x 35) Stainless SteelSCREW, (M6 x 35) Stainless Steel
-
1510-8M0103814 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1626-880629 SEAL, Exhaust TubeSEAL, Exhaust Tube
-
17895821T SUMP ASSEMBLY, OilSUMP ASSEMBLY, Oil
-
1810-8M0103808 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
19888592005 PLUG ASSEMBLY, Oil DrainPLUG ASSEMBLY, Oil Drain
-
2026-888593 SEALSEAL
-
21896242 SEALSEAL
-
2232-896107A01 TUBE ASSEMBLY, Water
(Long)TUBE ASSEMBLY, Water
(Long) -
2232-896107A02 TUBE ASSEMBLY, Water
(X-Long)TUBE ASSEMBLY, Water
(X-Long) -
2325-892445 O-RINGO-RING
-
2422-887987A1 COUPLINGCOUPLING
-
2525-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
2625-21836 O-RING, (.796 x .139)O-RING, (.796 x .139)
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-8M0055433 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
