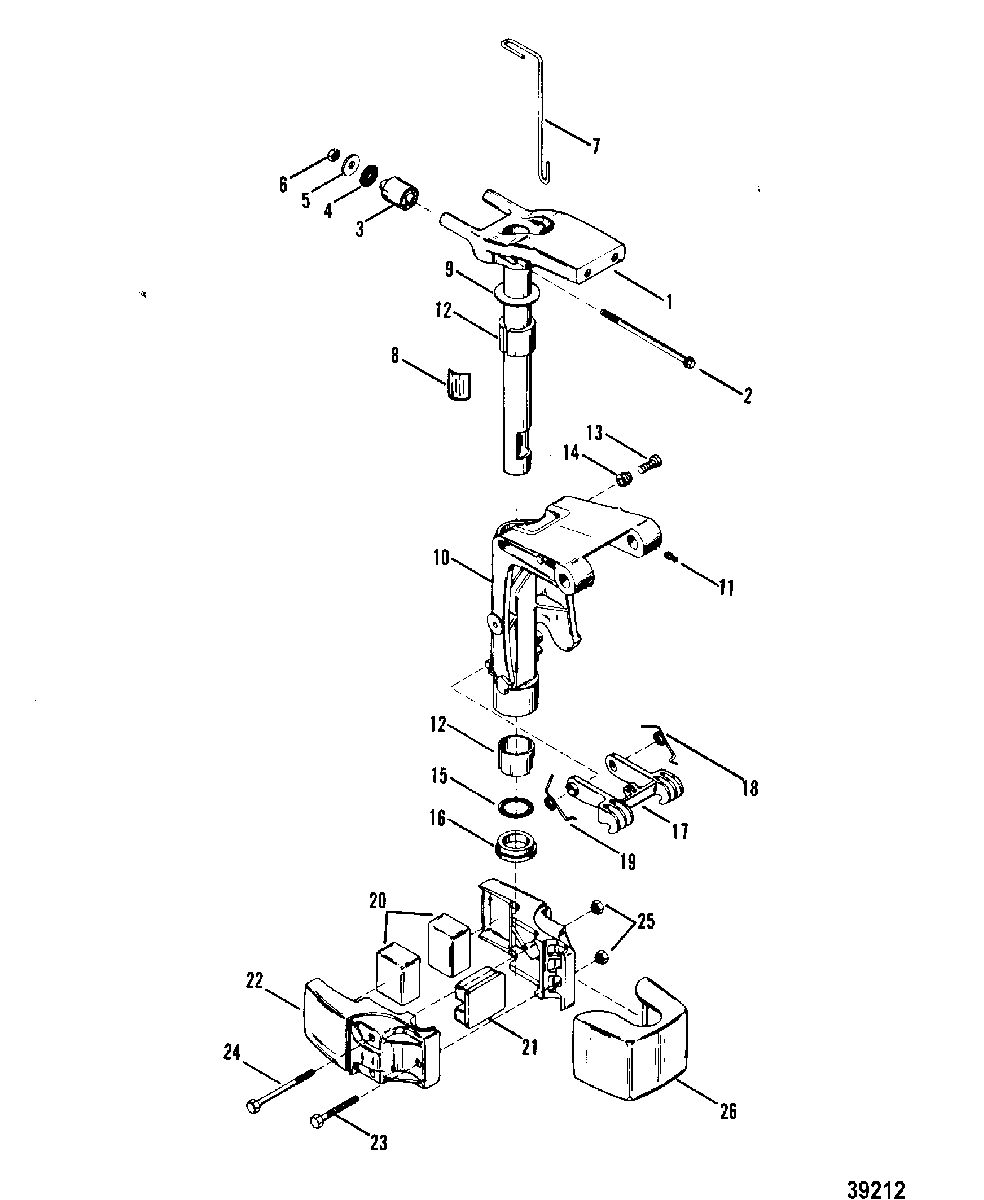

SWIVEL BRACKET ASSEMBLY для Mercury - 18 7173723 THRU 7207857
-
№АртикулНазвание
-
197544A5 SWIVEL TUBE ASSEMBLYSWIVEL TUBE ASSEMBLY
-
210-125161 SCREW, UPPER MOUNT (133MM)SCREW, UPPER MOUNT (133MM)
-
314894 MOUNT, UPPERMOUNT, UPPER
-
412-85172 WASHER, RUBBER - UPPER MOUNT SCREWWASHER, RUBBER - UPPER MOUNT SCREW
-
512-85106 WASHER, UPPER MOUNT SCREWWASHER, UPPER MOUNT SCREW
-
611-400213 NUT, (M8) Stainless Steel, UPPER MOUNT SCREWNUT, (M8) Stainless Steel, UPPER MOUNT SCREW
-
785157 ROD, REVERSE HOOKROD, REVERSE HOOK
-
885173 PLATE, PILOT CONTROLPLATE, PILOT CONTROL
-
912-85104 WASHER, SWIVEL TUBEWASHER, SWIVEL TUBE
-
103415-822237A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1122-74036 FITTING, GreaseFITTING, Grease
-
1223-95949 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
1310-91807 SCREW, PILOT CONTROLSCREW, PILOT CONTROL
-
1424-96203 SPRING, PILOT CONTROL SCREWSPRING, PILOT CONTROL SCREW
-
1525-86993 O-RING, SWIVEL TUBEO-RING, SWIVEL TUBE
-
1623-85154 BUSHING, SWIVEL TUBE (LOWER)BUSHING, SWIVEL TUBE (LOWER)
-
1798830A2 HOOK ASSEMBLY, REVERSE LOCKHOOK ASSEMBLY, REVERSE LOCK
-
1824-96018 SPRING, REVERSE HOOK - PORTSPRING, REVERSE HOOK - PORT
-
1924-97427 SPRING, REVERSE HOOK - STARBOARDSPRING, REVERSE HOOK - STARBOARD
-
2085122001 MOUNT, LOWERMOUNT, LOWER
-
2185123001 BUMPER, FrontBUMPER, Front
-
2295068A1 COVER, LOWER MOUNT
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowCOVER, LOWER MOUNT
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
2310-1994360 SCREW, LOWER MOUNT COVER (55MM)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowSCREW, LOWER MOUNT COVER (55MM)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
2410-4000362 SCREW, LOWER MOUNT COVER (90MM)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowSCREW, LOWER MOUNT COVER (90MM)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
2295068A1 COVER, LOWER MOUNT
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpCOVER, LOWER MOUNT
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
2310-1994360 SCREW, LOWER MOUNT COVER (60MM)
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpSCREW, LOWER MOUNT COVER (60MM)
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
2410-19943100 SCREW, LOWER MOUNT COVER (100MM)
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpSCREW, LOWER MOUNT COVER (100MM)
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
2511-400213 NUT, (M8) Stainless Steel, LOWER MOUNT COVER SCREWNUT, (M8) Stainless Steel, LOWER MOUNT COVER SCREW
-
2685547 COVER, LOWER MOUNT (PLASTIC)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowCOVER, LOWER MOUNT (PLASTIC)
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
-27-85168A80 GASKET SETGASKET SET
