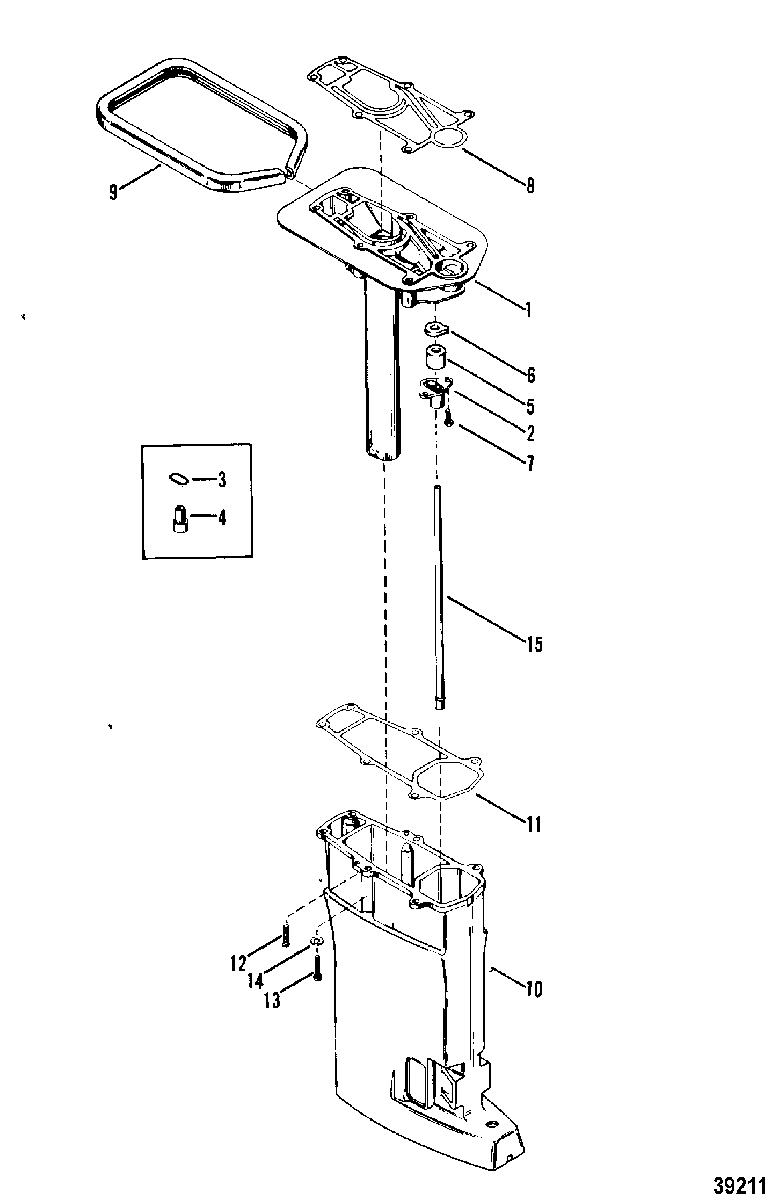

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 18 8071973 & Up
-
№АртикулНазвание
-
199702A3 PLATE ASSEMBLYPLATE ASSEMBLY
-
296248A1 HOUSING, WATER TUBE
USED WITH REF. #3HOUSING, WATER TUBE
USED WITH REF. #3 -
325-36390 O-RING, WATER TUBE HOUSING
USED WITH REF. #3O-RING, WATER TUBE HOUSING
USED WITH REF. #3 -
485164 SEAL, WATER TUBE
USED WITH REF. #3SEAL, WATER TUBE
USED WITH REF. #3 -
296248A1 HOUSING ASSEMBLY, WATER TUBE
NOT USED WITH REF. #3HOUSING ASSEMBLY, WATER TUBE
NOT USED WITH REF. #3 -
526-25329 SEAL, WATER TUBE
NOT USED WITH REF. #3SEAL, WATER TUBE
NOT USED WITH REF. #3 -
623-889715 SPACER, WATER TUBE
NOT USED WITH REF. #3SPACER, WATER TUBE
NOT USED WITH REF. #3 -
710-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATESCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
-
827-41670006 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
9158662 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
101588-8747A1 HOUSING ASSEMBLY, Driveshaft
SHORT SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowHOUSING ASSEMBLY, Driveshaft
SHORT SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
101591-8749A1 HOUSING ASSEMBLY, Driveshaft
LONG SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowHOUSING ASSEMBLY, Driveshaft
LONG SHAFT SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
101588-8747A1 HOUSING ASSEMBLY
SHORT SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpHOUSING ASSEMBLY
SHORT SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
101591-8749A1 HOUSING ASSEMBLY
LONG SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpHOUSING ASSEMBLY
LONG SHAFT SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
1127-85109 GASKET, DRIVESHAFT HOUSING
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowGASKET, DRIVESHAFT HOUSING
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
1127-433374 GASKET, DRIVESHAFT HOUSING
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpGASKET, DRIVESHAFT HOUSING
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
1210-400035 SCREW, (M5 x 16), DRIVESHAFT HOUSING TO PLATESCREW, (M5 x 16), DRIVESHAFT HOUSING TO PLATE
-
1310-1993870 SCREW, DRIVESHAFT HOUSING TO PLATE (60MM)SCREW, DRIVESHAFT HOUSING TO PLATE (60MM)
-
1412-4002317 WASHER, DRIVESHAFT HOUSING SCREWWASHER, DRIVESHAFT HOUSING SCREW
-
1532-85116 TUBE, Water
SHORT SHAFTTUBE, Water
SHORT SHAFT -
1532-86292 TUBE, Water
LONG SHAFTTUBE, Water
LONG SHAFT -
-27-85168A80 GASKET SETGASKET SET
