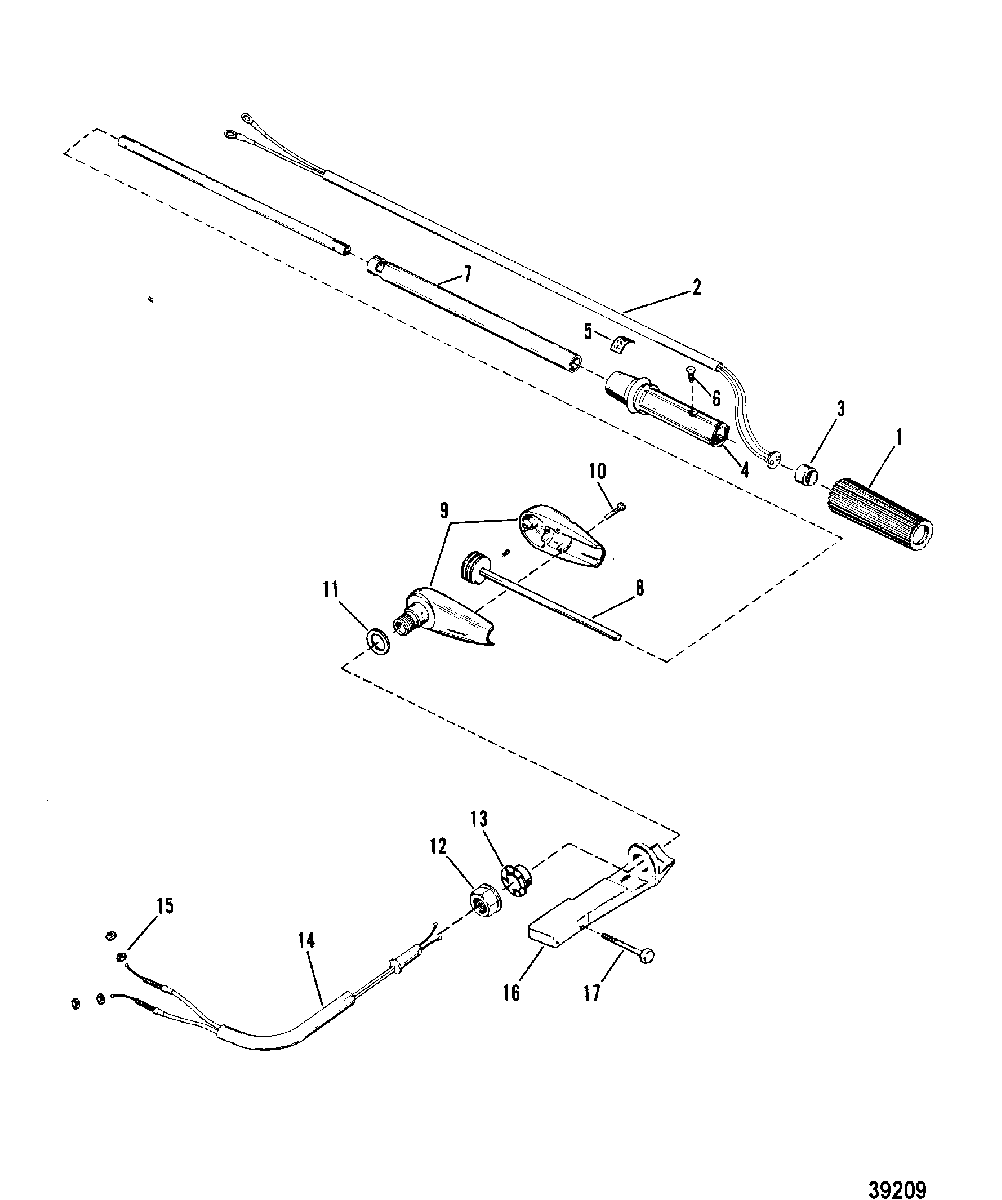

STEERING HANDLE ASSEMBLY(MANUAL) для Mercury - 18 9308306 THRU 9378115
-
№АртикулНазвание
-
-94185A16 HANDLE ASSEMBLY, SteeringHANDLE ASSEMBLY, Steering
-
199589003 GRIP, RUBBERGRIP, RUBBER
-
284-89591A5 HARNESS ASSEMBLY, STOP SWITCHHARNESS ASSEMBLY, STOP SWITCH
-
311099A1 BOOT ASSEMBLYBOOT ASSEMBLY
-
487-823609A10 HANDLE ASSEMBLY, THROTTLEHANDLE ASSEMBLY, THROTTLE
-
537-13239 DECAL, THROTTLE HANDLEDECAL, THROTTLE HANDLE
-
610-62568 SCREW, (#10-16 x .375), THROTTLE HANDLESCREW, (#10-16 x .375), THROTTLE HANDLE
-
799333A2 TUBE ASSEMBLY, STEERINGTUBE ASSEMBLY, STEERING
-
8975501 TUBE ASSEMBLY
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & BelowTUBE ASSEMBLY
SN# USA-6043400/Australia-8073792/Belgium-9340115/Canada-7185897 & Below -
8975501 TUBE ASSEMBLY
SN# USA-6043401/Belgium-9340116/Canada-7185898 & UpTUBE ASSEMBLY
SN# USA-6043401/Belgium-9340116/Canada-7185898 & Up -
943447A3 BRACKEY ASSEMBLYBRACKEY ASSEMBLY
-
1010-4005688 SCREW, (M4 x 20), BRACKET CLAMPINGSCREW, (M4 x 20), BRACKET CLAMPING
-
1112-57860 WASHER, NYLON - BRACKETWASHER, NYLON - BRACKET
-
1211-82671327 NUT, BRACKETNUT, BRACKET
-
1323-85973 BUSHING, BRACKETBUSHING, BRACKET
-
1443242 CABLE, THROTTLECABLE, THROTTLE
-
1511-400212 NUT, (M6) Stainless Steel, THROTTLE CABLENUT, (M6) Stainless Steel, THROTTLE CABLE
-
1643447A3 BRACKET ASSEMBLY, STEERINGBRACKET ASSEMBLY, STEERING
-
1710-4000384 SCREW, (M10 x 80), BRACKET TO SWIVEL TUBESCREW, (M10 x 80), BRACKET TO SWIVEL TUBE
