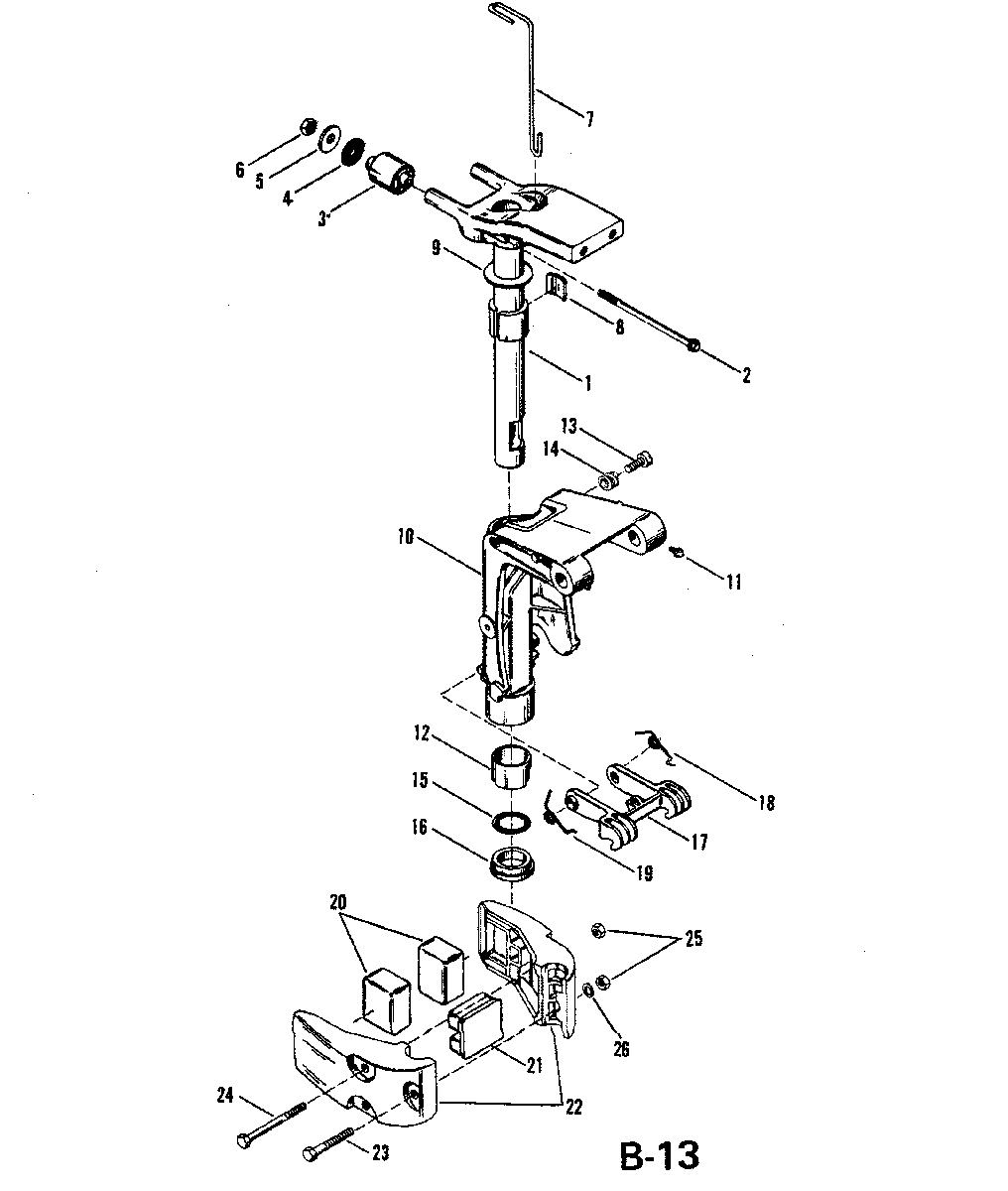

SWIVEL BRACKET ASSEMBLY для Mercury - 18 9332837X THRU 9390058X
-
№АртикулНазвание
-
197544A5 SWIVEL TUBE ASSEMBLYSWIVEL TUBE ASSEMBLY
-
210-125161 SCREW,UPPER MOUNT(133MM)SCREW,UPPER MOUNT(133MM)
-
314894 MOUNT,UPPERMOUNT,UPPER
-
412-85172 WASHER,RUBBER-UPPER MOUNT SCREWWASHER,RUBBER-UPPER MOUNT SCREW
-
512-85106 WASHER,UPPER MOUNT SCREWWASHER,UPPER MOUNT SCREW
-
611-400213 NUT,UPPER MOUNT SCREWNUT,UPPER MOUNT SCREW
-
785157 ROD,REVERSE HOOKROD,REVERSE HOOK
-
885173 PLATE,PILOT CONTROLPLATE,PILOT CONTROL
-
912-85104 WASHER,SWIVEL TUBEWASHER,SWIVEL TUBE
-
103415-822237A1 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
1122-74036 GREASE FITTINGGREASE FITTING
-
1223-95949 BUSHING,SWIVEL BRACKETBUSHING,SWIVEL BRACKET
-
1310-91807 SCREW,PILOT CONTROLSCREW,PILOT CONTROL
-
1424-96203 SPRING,PILOT CONTROL SCREWSPRING,PILOT CONTROL SCREW
-
1525-86993 "O" RING SWIVEL TUBE"O" RING SWIVEL TUBE
-
1623-85154 BUSHING,SWIVEL TUBE(LOWER)BUSHING,SWIVEL TUBE(LOWER)
-
1798830A2 HOOK ASSEMBLY,REVERSE LOCKHOOK ASSEMBLY,REVERSE LOCK
-
1824-96018 SPRING,REVERSE HOOK-PORTSPRING,REVERSE HOOK-PORT
-
1924-97427 SPRING,REVERSE HOOK-STARBOARDSPRING,REVERSE HOOK-STARBOARD
-
2085122001 MOUNT,LOWERMOUNT,LOWER
-
2185123001 BUMPER,FRONTBUMPER,FRONT
-
2295068A1 COVER,LOWER MOUNTCOVER,LOWER MOUNT
-
2310-1994360 SCREW,LOWRE MOUNT COVER(60MM)SCREW,LOWRE MOUNT COVER(60MM)
-
2410-19943100 SCREW,LOWER MOUNT COVER(100MM)SCREW,LOWER MOUNT COVER(100MM)
-
2511-400213 NUT,LOWER MOUNT COVER SCREWNUT,LOWER MOUNT COVER SCREW
-
2612-36001 WASHER,LOWER MOUNT COVER SCREWWASHER,LOWER MOUNT COVER SCREW
