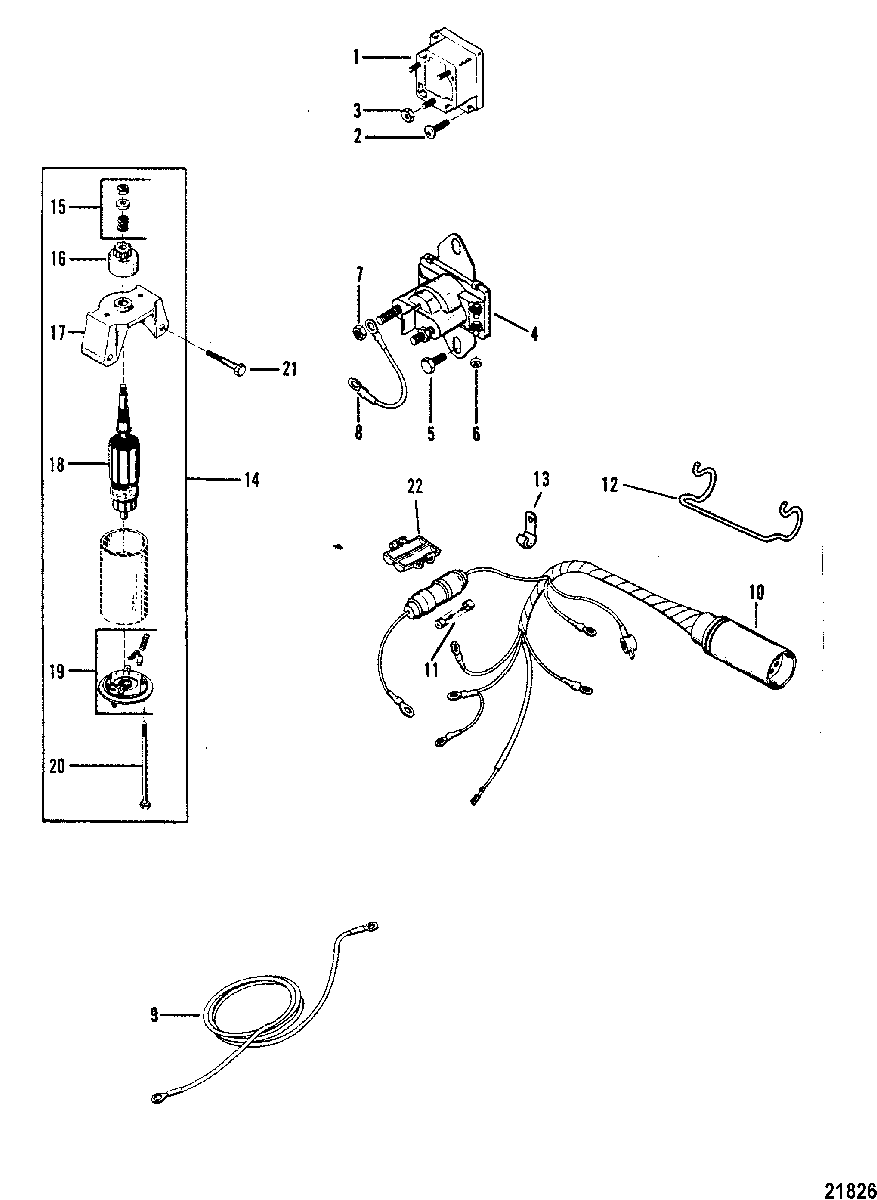

Electric Start Components для Mercury - 20 (2 CYL.) 0A730007 & Up
-
№АртикулНазвание
-
18M0058226 RECTIFIERRECTIFIER
-
210-48409 SCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCKSCREW, (#10-16 x .625) Stainless Steel, RECTIFIER TO CYLINDER BLOCK
-
311-45076 NUT, (#10-32) Brass, RECTIFIER TERMINALSNUT, (#10-32) Brass, RECTIFIER TERMINALS
-
489-96054T SOLENOID ASSEMBLY, StarterSOLENOID ASSEMBLY, Starter
-
510-4000327 SCREW, (M6 x 14), STARTER SOLENOID TO CRANKCASESCREW, (M6 x 14), STARTER SOLENOID TO CRANKCASE
-
611-26419 NUT, (#8-32) Brass, STARTER SOLENOID TERMINALNUT, (#8-32) Brass, STARTER SOLENOID TERMINAL
-
711-64015 NUT, (.250-20), STARTER SOLENOID TERMINALNUT, (.250-20), STARTER SOLENOID TERMINAL
-
884-88809A5 WIRE ASSEMBLY (YELLOW)WIRE ASSEMBLY (YELLOW)
-
984-88439A27 CABLE ASSEMBLY, Battery (RED)CABLE ASSEMBLY, Battery (RED)
-
984-88439A28 CABLE ASSEMBLY, Battery (BLACK)CABLE ASSEMBLY, Battery (BLACK)
-
1084-92436A5 HARNESS ASSEMBLY, ENGINEHARNESS ASSEMBLY, ENGINE
-
1188-79091 FUSE, 20 AmpereFUSE, 20 Ampere
-
1292753 RETAINERRETAINER
-
1354-55098 J CLIPJ CLIP
-
1450-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
1596561 DRIVE KITDRIVE KIT
-
1696562 DRIVEDRIVE
-
1796563T END CAPEND CAP
-
1896565 ARMATUREARMATURE
-
1996564T END CAPEND CAP
-
2010-96566 THRU BOLTTHRU BOLT
-
2110-421251 SCREW, (M8 x 55), STARTER MOTOR ATTACHINGSCREW, (M8 x 55), STARTER MOTOR ATTACHING
-
22134731 HOLDER, Fuse (OLD DESIGN)HOLDER, Fuse (OLD DESIGN)
