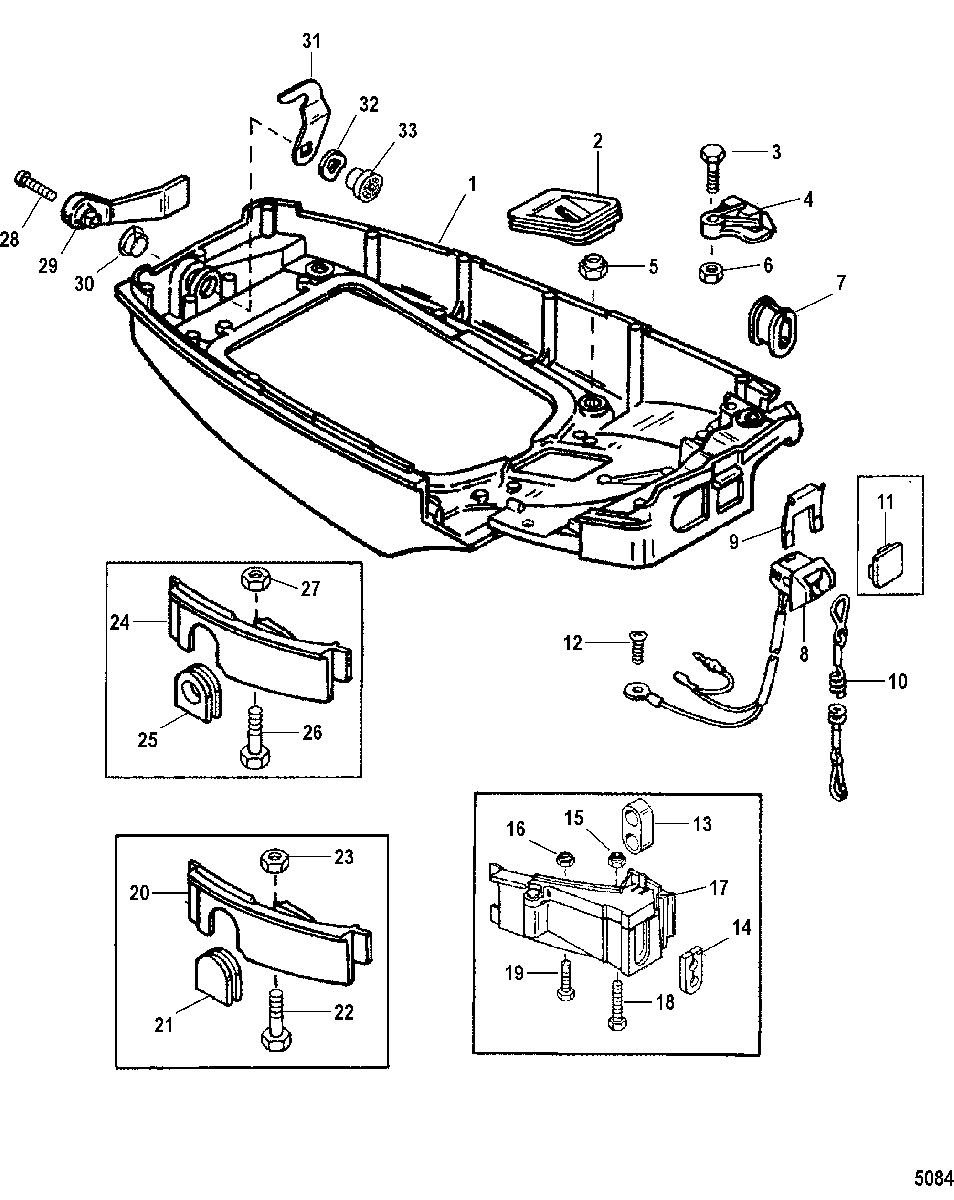

Bottom Cowl для Mercury - 20 (2 CYL.) 0G044027 THRU 0G760299
-
№АртикулНазвание
-
12193-9682A8 BOTTOM COWL
(BLACK)BOTTOM COWL
(BLACK) -
12193-9682A9 BOTTOM COWL
(GRAY)BOTTOM COWL
(GRAY) -
12193-9682A10 BOTTOM COWL
(TRACKER GRAPHITE GRAY)BOTTOM COWL
(TRACKER GRAPHITE GRAY) -
225-17231 GROMMET, Shift ShaftGROMMET, Shift Shaft
-
310-4000332 SCREW, (M6 x 35)SCREW, (M6 x 35)
-
417223 COVER, HarnessCOVER, Harness
-
511-401196 NUT, (M6)NUT, (M6)
-
611-401196 NUT, (M6)NUT, (M6)
-
725-17226 GROMMET, Wire HarnessGROMMET, Wire Harness
-
887-11083A6 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
98M0032846 RETAINER, BrassRETAINER, Brass
-
108M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
1119-17230 PLUGPLUG
-
1210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1339519 CUPCUP
-
1425-8243641 GROMMET, Side CoverGROMMET, Side Cover
-
1511-401196 NUT, (M6)NUT, (M6)
-
1611-401196 NUT, (M6)NUT, (M6)
-
178M0053899 SIDE COVER
(Black) SN# USA-0G438000/BEL-9927000 & UpSIDE COVER
(Black) SN# USA-0G438000/BEL-9927000 & Up -
178M0053899 SIDE COVER
(Gray) SN# USA-0G438000/BEL-9927000 & UpSIDE COVER
(Gray) SN# USA-0G438000/BEL-9927000 & Up -
178M0053899 SIDE COVER
(Tracker Graphite Gray) SN# USA-0G438000/BEL-9927000 & UpSIDE COVER
(Tracker Graphite Gray) SN# USA-0G438000/BEL-9927000 & Up -
178M0053899 SIDE COVER
(Black) SN# USA-0G437999/BEL-9926999 & BelowSIDE COVER
(Black) SN# USA-0G437999/BEL-9926999 & Below -
178M0053899 SIDE COVER
(Gray) SN# USA-0G437999/BEL-9926999 & BelowSIDE COVER
(Gray) SN# USA-0G437999/BEL-9926999 & Below -
178M0053899 SIDE COVER
(Tracker Graphite Gray) SN# USA-0G437999/BEL-9926999 & BelowSIDE COVER
(Tracker Graphite Gray) SN# USA-0G437999/BEL-9926999 & Below -
1810-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
1910-4000328 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
208M0054857 SIDE COVER
(MANUAL - BLACK)SIDE COVER
(MANUAL - BLACK) -
208M0054857 SIDE COVER
(MANUAL - GRAY)SIDE COVER
(MANUAL - GRAY) -
208M0054857 SIDE COVER
(MANUAL - TRACKER GRAPHITE GRAY)SIDE COVER
(MANUAL - TRACKER GRAPHITE GRAY) -
2125-824362 GROMMETGROMMET
-
2210-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2311-401366 NUT, (M6)NUT, (M6)
-
248M0054857 SIDE COVER
(MANUAL - BLACK)SIDE COVER
(MANUAL - BLACK) -
248M0054857 SIDE COVER
(MANUAL - GRAY)SIDE COVER
(MANUAL - GRAY) -
2525-824361 GROMMETGROMMET
-
2610-4000329 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2711-401366 NUT, (M6)NUT, (M6)
-
2810-852530 SCREW, (.250-20 x 1.50)SCREW, (.250-20 x 1.50)
-
2917220 LEVER, Cowl LatchLEVER, Cowl Latch
-
3023-812707 BUSHINGBUSHING
-
31816202 HOOK, LatchHOOK, Latch
-
3213-37642 WAVE WASHERWAVE WASHER
-
3311-17224 NUT, Latch RetainingNUT, Latch Retaining
