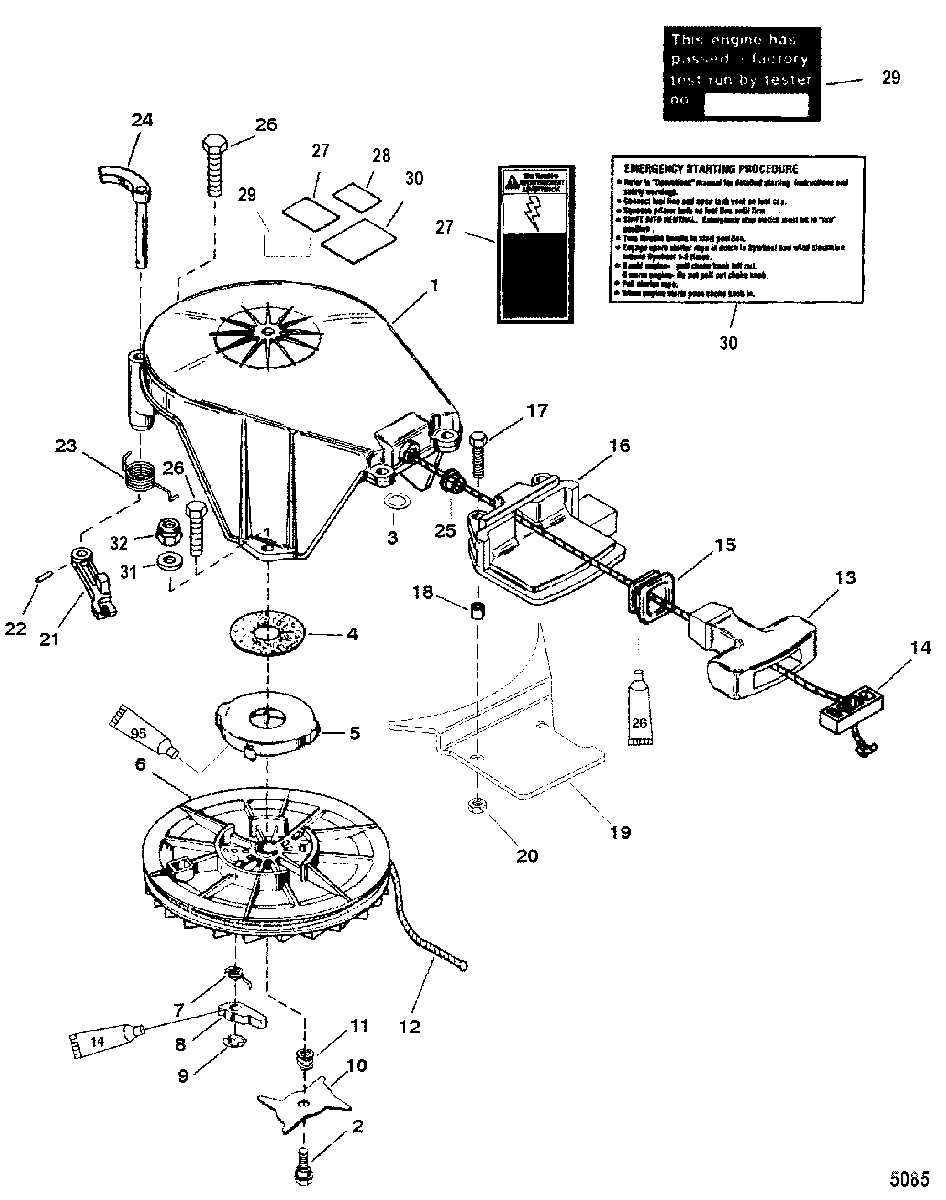

Starter Assembly(Manual) для Mercury - 20 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
-90906A23 STARTER ASSEMBLY, Recoil
SN# 0G845347/0P038443 & BelowSTARTER ASSEMBLY, Recoil
SN# 0G845347/0P038443 & Below -
-90906A23 STARTER ASSEMBLY, Recoil
SN# 0G845348/0P0384444 & UpSTARTER ASSEMBLY, Recoil
SN# 0G845348/0P0384444 & Up -
186689A5 HOUSING ASSEMBLY, StarterHOUSING ASSEMBLY, Starter
-
210-826253 SCREW, (.250-20 x .625)SCREW, (.250-20 x .625)
-
353-818853 RING, RetainingRING, Retaining
-
4833161T FELT PADFELT PAD
-
524-86857T01 SPRINGSPRING
-
650-825269T01 SHEAVE, StarterSHEAVE, Starter
-
724-86851T02 SPRINGSPRING
-
8868501 CAMCAM
-
953-86849T01 RING, RetainingRING, Retaining
-
1086853T01 CAMCAM
-
1124-868523 SPRINGSPRING
-
1250-12066Q10 ROPEROPE
-
1385174A1 HANDLE ASSEMBLYHANDLE ASSEMBLY
-
14NSS NOT SOLD SEPARATE, RetainerNOT SOLD SEPARATE, Retainer
-
1544180 BUSHING, RopeBUSHING, Rope
-
16426264 SUPPORTSUPPORT
-
1710-40019111 SCREW, (M5 x 35)SCREW, (M5 x 35)
-
1823-309772 SPACERSPACER
-
19856154T01 SUPPORTSUPPORT
-
2011-401385 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
2193876T02 LEVER, LowerLEVER, Lower
-
2217-38489 PIN, RollPIN, Roll
-
2324-823778 SPRING, Upper Lock LeverSPRING, Upper Lock Lever
-
24858925 LEVER, UpperLEVER, Upper
-
2542690 BUSHINGBUSHING
-
2610-1993735 SCREW, (M6 x 35), Non-Seapro/Marathon
SN# 0G845348/0P038444 & UpSCREW, (M6 x 35), Non-Seapro/Marathon
SN# 0G845348/0P038444 & Up -
2610-8M4503518 SCREW, (M6 x 20) Stainless Steel, Non-Seapro/Marathon
SN# 0G845347/0P038443 & BelowSCREW, (M6 x 20) Stainless Steel, Non-Seapro/Marathon
SN# 0G845347/0P038443 & Below -
2610-1993735 SCREW, (M6 x 35), Non-Seapro/Marathon
SN# 0G845347/0P038443 & BelowSCREW, (M6 x 35), Non-Seapro/Marathon
SN# 0G845347/0P038443 & Below -
2737-8272822 DECAL, Warning, High VoltageDECAL, Warning, High Voltage
-
28NSS NOT SOLD SEPARATE, Decal-Servicing ReferrralNOT SOLD SEPARATE, Decal-Servicing Referrral
-
2937-881865 DECAL, Caution-Start in Gear
(Start In Gear) (Remote Control)DECAL, Caution-Start in Gear
(Start In Gear) (Remote Control) -
30NSS NOT SOLD SEPARATE, Decal-Emergency Start ProcedureNOT SOLD SEPARATE, Decal-Emergency Start Procedure
-
3112-69056 WASHER, (.255 x .620 x .030) Stainless Steel
(Commercial Engines)WASHER, (.255 x .620 x .030) Stainless Steel
(Commercial Engines) -
3211-401386 NUT, (M6)
(Commercial Engines)NUT, (M6)
(Commercial Engines)
