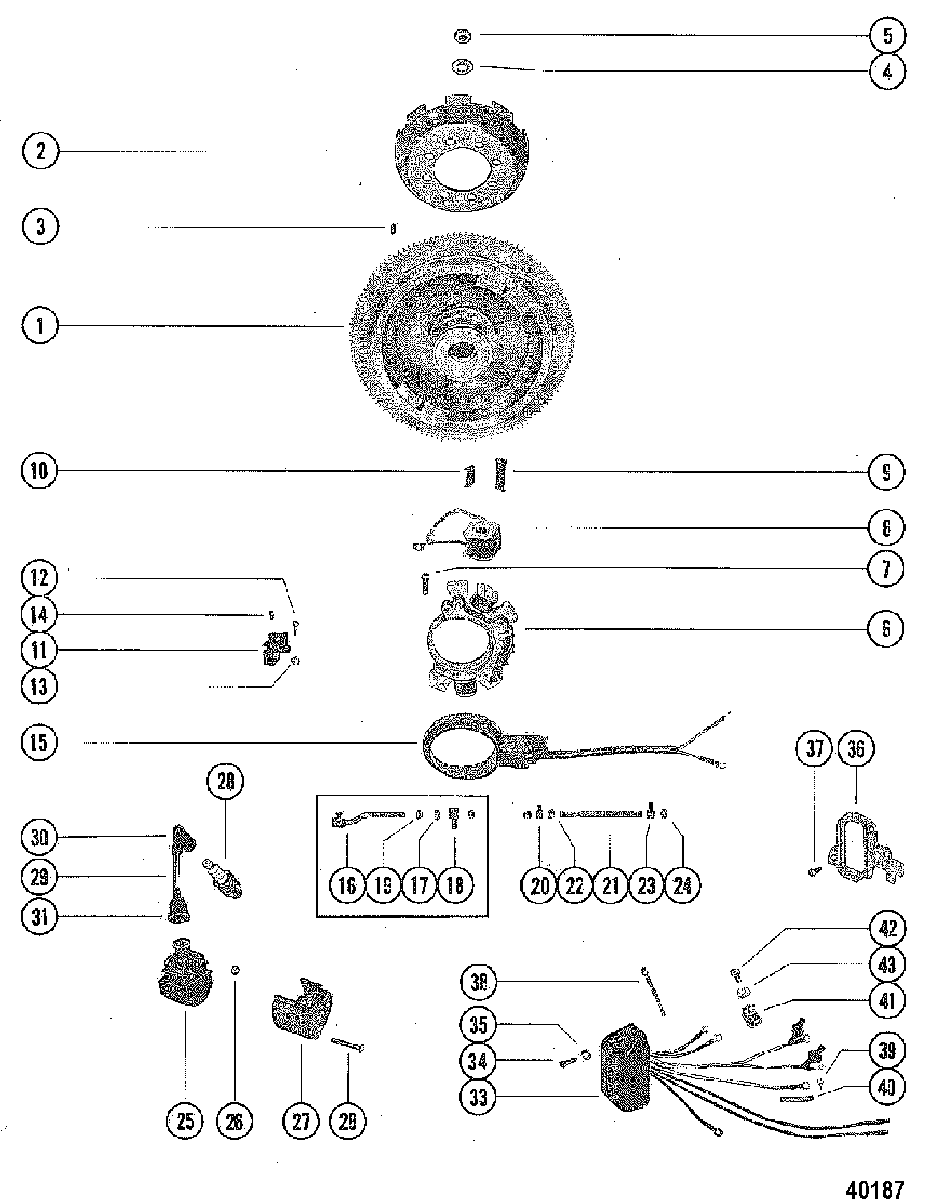

FLYWHEEL, IGNITION COIL AND SWITCH BOX для Mercury - 200, 20 4709593 & Up
-
№АртикулНазвание
-
1244-6601A2 FLYWHEEL ASSEMBLY
(MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947FLYWHEEL ASSEMBLY
(MANUAL) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
1244-6598A2 FLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947FLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
1244-6601A2 FLYWHEEL ASSEMBLY
(BELGIUM) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947FLYWHEEL ASSEMBLY
(BELGIUM) SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
1244-6601A2 FLYWHEEL ASSEMBLY
(MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpFLYWHEEL ASSEMBLY
(MANUAL) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
1244-6598A2 FLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpFLYWHEEL ASSEMBLY
(ELECTRIC) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
1244-6601A2 FLYWHEEL ASSEMBLY
(BELGIUM) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpFLYWHEEL ASSEMBLY
(BELGIUM) SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
250-65721 RATCHET ASSEMBLY, FLYWHEEL
(MANUAL)RATCHET ASSEMBLY, FLYWHEEL
(MANUAL) -
328-20094 KEY, Woodruff, FLYWHEEL DRIVEKEY, Woodruff, FLYWHEEL DRIVE
-
412-65891 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
511-22339 NUT, (.625-18), FLYWHEELNUT, (.625-18), FLYWHEEL
-
6339-5209A9 STATOR ASSEMBLYSTATOR ASSEMBLY
-
710-66707 SCREW, STATOR TO END CAP (7/8")SCREW, STATOR TO END CAP (7/8")
-
710-35400 SCREW, STATOR TO END CAP (3/8")SCREW, STATOR TO END CAP (3/8")
-
8339-6119A1 COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)COIL ASSEMBLY (5-1/2" AND 6-3/8" LEADS)
-
8339-6120A1 COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)COIL ASSEMBLY (1-3/4" AND 3-1/2" LEADS)
-
954-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1056927 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1186-85365 TERMINAL BLOCK, STATORTERMINAL BLOCK, STATOR
-
1210-38055 SCREW, (.190-32 x .62), TERMINAL BLOCK TO STATORSCREW, (.190-32 x .62), TERMINAL BLOCK TO STATOR
-
1311-46438 NUT, (#10-32), TERMINAL BLOCK SCREWNUT, (#10-32), TERMINAL BLOCK SCREW
-
1410-22654 SCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCKSCREW, (.190-32 x .38), LEADS TO TERMINAL BLOCK
-
1589312A3 TRIGGER ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowTRIGGER ASSEMBLY
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
1589312A3 TRIGGER ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpTRIGGER ASSEMBLY
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
1674454 SWIVEL, LINK TO TRIGGER
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowSWIVEL, LINK TO TRIGGER
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
1712-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowWASHER, (.192 x .375 x .0312) Stainless Steel, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
1833973 SWIVEL, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowSWIVEL, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
1911-859124 NUT, (#10-32) Stainless Steel, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & BelowNUT, (#10-32) Stainless Steel, THROTTLE LINK
SN# USA-4954680/Australia-8053029/Belgium-9192860/Canada-7114672 & Below -
2079364 SWIVEL, LINK TO TRIGGER
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpSWIVEL, LINK TO TRIGGER
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
2179365 LINK, SPARK ADVANCE
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpLINK, SPARK ADVANCE
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
2253-79366 RING, Retaining, SWIVEL TO LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpRING, Retaining, SWIVEL TO LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
2379363 SWIVEL, SPARK ADVANCE LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpSWIVEL, SPARK ADVANCE LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
2411-68219 NUT, (#10-32) Stainless Steel, SPARK ADVANCE LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & UpNUT, (#10-32) Stainless Steel, SPARK ADVANCE LINK
SN# USA-4954681/Australia-8053030/Belgium-9192861/Canada-7114673 & Up -
25339-5288T2 COIL ASSEMBLY, IGNITIONCOIL ASSEMBLY, IGNITION
-
2611-45076 NUT, (#10-32) Brass, IGNITION COIL TERMINALNUT, (#10-32) Brass, IGNITION COIL TERMINAL
-
2776254 COVER, IGNITION COILCOVER, IGNITION COIL
-
2810-60464 SCREW (2")SCREW (2")
-
2984-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
3085-63709A1 PROTECTOR, SPARK PLUGPROTECTOR, SPARK PLUG
-
31332-2854T01 BOOT, IGNITION COILBOOT, IGNITION COIL
-
3233-97182Q SPARK PLUG (ACV#70FFK)SPARK PLUG (ACV#70FFK)
-
3233-14103Q SPARK PLUG
BELGIUM AND CANADASPARK PLUG
BELGIUM AND CANADA -
33899883229 SWITCHBOX ASSEMBLYSWITCHBOX ASSEMBLY
-
3410-48409 SCREW, (#10-16 x .625) Stainless Steel, SWITCH BOX TO PLATESCREW, (#10-16 x .625) Stainless Steel, SWITCH BOX TO PLATE
-
3512-56681 WASHER, (.203 x .500 x .032), SWITCH BOX SCREWWASHER, (.203 x .500 x .032), SWITCH BOX SCREW
-
3675899 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
3710-98256 SCREW, SWITCH BOX PLATE ATTACHING (1/2")SCREW, SWITCH BOX PLATE ATTACHING (1/2")
-
3861990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
3910-45218 SCREW, (#10-32 x .380), SWITCH BOX LEADSSCREW, (#10-32 x .380), SWITCH BOX LEADS
-
405790811 SLEEVE, SWITCH BOX LEADSSLEEVE, SWITCH BOX LEADS
-
4154-23567 CLIP, SWITCH BOX WIRESCLIP, SWITCH BOX WIRES
-
4210-62568 SCREW, (#10-16 x .375), CLIP ATTACHINGSCREW, (#10-16 x .375), CLIP ATTACHING
-
438M0084613 C WASHER, CLIP ATTACHING SCREWC WASHER, CLIP ATTACHING SCREW
