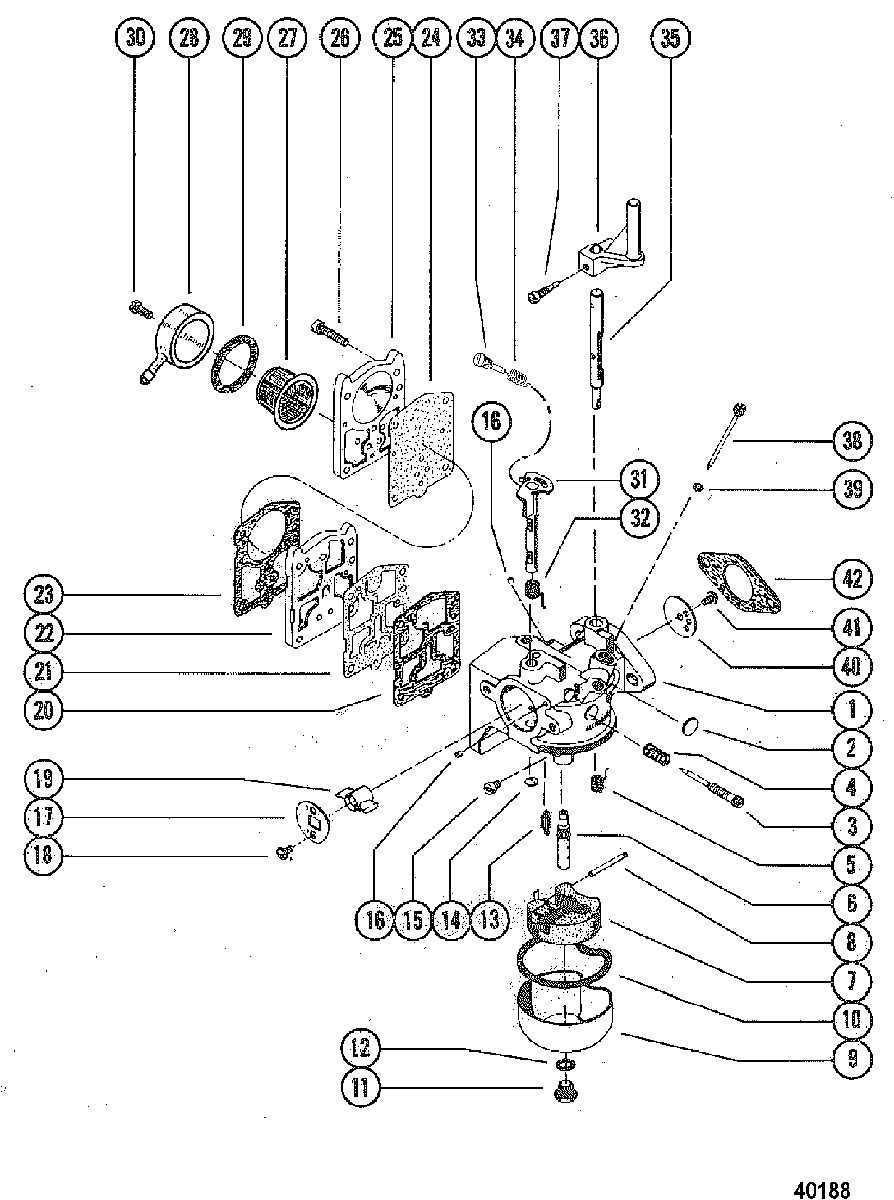

CARBURETOR ASSEMBLY для Mercury - 200, 20 7098523 & Up
-
№АртикулНазвание
-
11367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523/ THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523/ THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
11367-6650A3 CARBURETOR ASSEMBLY, COMPLETE
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpCARBURETOR ASSEMBLY, COMPLETE
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
2NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (LARGE)
-
31399-1713 SCREW, IDLE MIXTURESSCREW, IDLE MIXTURES
-
424-27160 SPRING, IDLE MIXTURE SCREWSPRING, IDLE MIXTURE SCREW
-
5NSS NOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - THROTTLE SHAFT
-
6NSS NOT SOLD SEPARATE, MAIN NOZZLENOT SOLD SEPARATE, MAIN NOZZLE
-
71395-9293 FLOATFLOAT
-
8NSS NOT SOLD SEPARATE, PIN, FLOAT RETAININGNOT SOLD SEPARATE, PIN, FLOAT RETAINING
-
91399-5127 BOWL, FuelBOWL, Fuel
-
10NSS NOT SOLD SEPARATE, GASKET, FUEL BOWLNOT SOLD SEPARATE, GASKET, FUEL BOWL
-
111399-5415 SCREW, FUEL BOWL TO CARBURETORSCREW, FUEL BOWL TO CARBURETOR
-
12NSS NOT SOLD SEPARATE, GASKET, FUEL BOWL SCREWNOT SOLD SEPARATE, GASKET, FUEL BOWL SCREW
-
131395-9022 NEEDLE AND SEAT, InletNEEDLE AND SEAT, Inlet
-
14NSS NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (SMALL)NOT SOLD SEPARATE, WELCH PLUG, BODY CHANNEL (SMALL)
-
151399-1457 JET, MAIN FUEL (.057)JET, MAIN FUEL (.057)
-
16NSS NOT SOLD SEPARATE, PLUG, BODY CHANNELNOT SOLD SEPARATE, PLUG, BODY CHANNEL
-
171399-2577 SHUTTER, ChokeSHUTTER, Choke
-
1810-23035 SCREW AND LOCKWASHER, CHOKE SHUTTER TO CHOKE SHAFTSCREW AND LOCKWASHER, CHOKE SHUTTER TO CHOKE SHAFT
-
1969692 VENTURI
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947VENTURI
SN# USA-4709593/Australia-8045199/Belgium-9157230/Canada-7098523 THRU USA-4819248/Australia-8049299/Belgium-9171005/Canada-7108947 -
1964677 VENTURI
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & UpVENTURI
SN# USA-4819249/Australia-8049300/Belgium-9171006/Canada-7108948 & Up -
20NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
21NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
221399-5129 BODY, FUEL PUMPBODY, FUEL PUMP
-
23NSS NOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGMNOT SOLD SEPARATE, GASKET, FUEL PUMP DIAPHRAGM
-
24NSS NOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMPNOT SOLD SEPARATE, DIAPHRAGM, FUEL PUMP
-
251364-5585 BODY STRAINER, STRAINERBODY STRAINER, STRAINER
-
261395-808612 SCREW, STRAINER BODY TO CARBURETORSCREW, STRAINER BODY TO CARBURETOR
-
2735-70349 FILTER, PUMPFILTER, PUMP
-
2835-91078A1 COVER, INLETCOVER, INLET
-
291399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3010-25822 SCREW, STRAINER COVER TO BODYSCREW, STRAINER COVER TO BODY
-
311399-5809 SHAFT, ChokeSHAFT, Choke
-
32NSS NOT SOLD SEPARATE, SPRING, RETURN - CHOKE SHAFTNOT SOLD SEPARATE, SPRING, RETURN - CHOKE SHAFT
-
33NSS NOT SOLD SEPARATE, SCREW, CHOKE ADJUSTMENTNOT SOLD SEPARATE, SCREW, CHOKE ADJUSTMENT
-
34NSS NOT SOLD SEPARATE, SPRING, CHOKE ADJUSTMENTNOT SOLD SEPARATE, SPRING, CHOKE ADJUSTMENT
-
351399-2012 SHAFT, ThrottleSHAFT, Throttle
-
3646387 CLUSTER, THROTTLECLUSTER, THROTTLE
-
371395-6027 SCREW, THROTTLE LEVER ATTACHINGSCREW, THROTTLE LEVER ATTACHING
-
38NSS NOT SOLD SEPARATE, IDLE TUBENOT SOLD SEPARATE, IDLE TUBE
-
39NSS NOT SOLD SEPARATE, GASKET, IDLE TUBENOT SOLD SEPARATE, GASKET, IDLE TUBE
-
401399-6225 SHUTTER, ThrottleSHUTTER, Throttle
-
41NSS NOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFTNOT SOLD SEPARATE, SCREW, THROTTLE SHUTTER TO THROTTLE SHAFT
-
4227-757911 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
--1399-5198 GASKET SETGASKET SET
-
--1399-51991 REPAIR PARTS KITREPAIR PARTS KIT
-
--1399-5137 DIAPHRAGM/GASKET KITDIAPHRAGM/GASKET KIT
