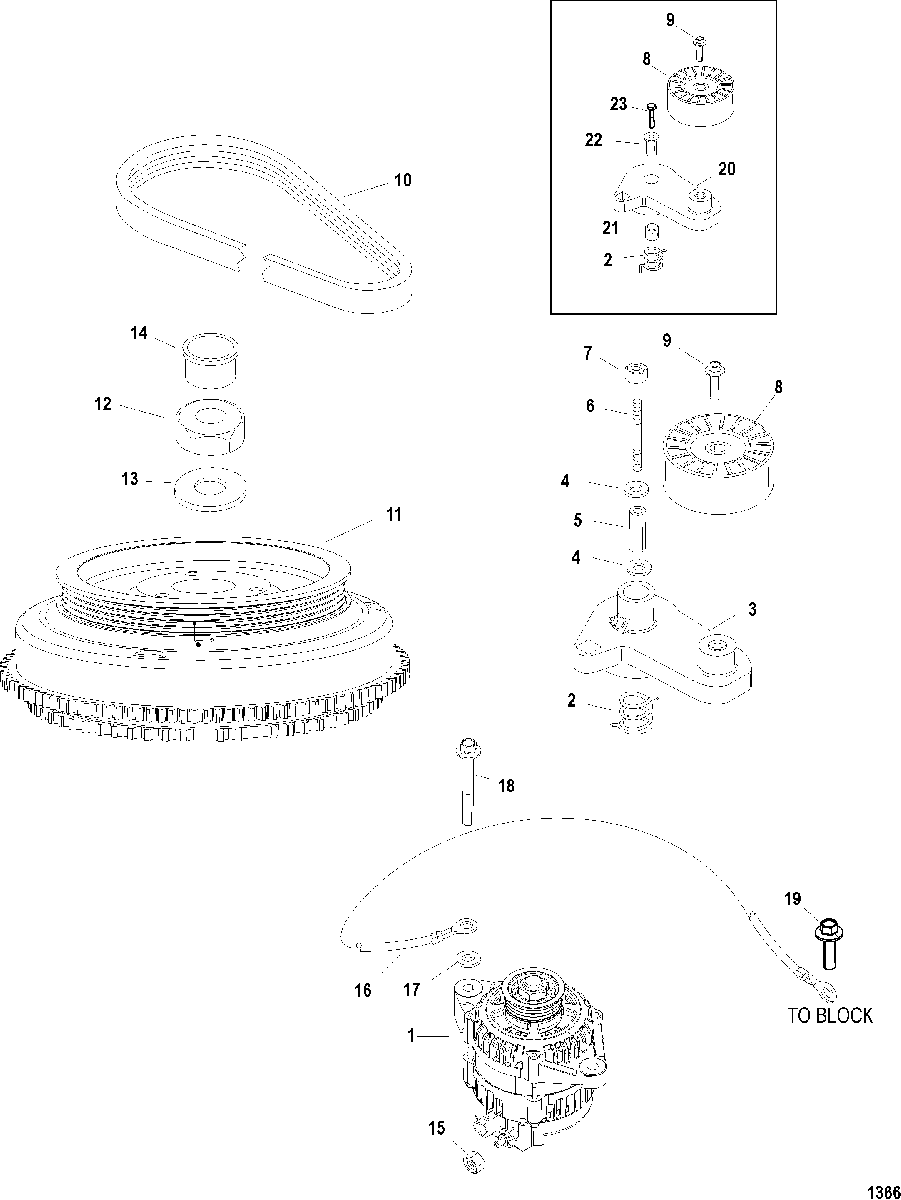

FLYWHEEL/ALTERNATOR для Mercury - 200 (3.0L EFI) 0T750164 THRU 0T800999
-
№АртикулНазвание
-
18M0064020 ALTERNATOR
SN# 0T598999 & BelowALTERNATOR
SN# 0T598999 & Below -
18M0064020 ALTERNATOR
SN# 0T599000 & UpALTERNATOR
SN# 0T599000 & Up -
224-8523742 SPRINGSPRING
-
3856815T2 ARM TENSIONER ASSEMBLY
SN# 0T599000 & UpARM TENSIONER ASSEMBLY
SN# 0T599000 & Up -
412-4002320 WASHER
SN# 0T599000 & UpWASHER
SN# 0T599000 & Up -
523-8568941 BUSHING
SN# 0T599000 & UpBUSHING
SN# 0T599000 & Up -
616-8M0034457 STUD, (M10 x 85)
SN# 0T599000 & UpSTUD, (M10 x 85)
SN# 0T599000 & Up -
711-826292 NUT, (M10) Brass/Nickel Plated
SN# 0T599000 & UpNUT, (M10) Brass/Nickel Plated
SN# 0T599000 & Up -
88M6005030 PULLEY ASSEMBLYPULLEY ASSEMBLY
-
910-4010835 SCREW, (M10 x 35) Hex Flange - Stainless SteelSCREW, (M10 x 35) Hex Flange - Stainless Steel
-
1057-828507Q11 BELTBELT
-
11283-859619T1 FLYWHEEL
(225) SN# 0T467442 & UpFLYWHEEL
(225) SN# 0T467442 & Up -
11283-859619T1 FLYWHEEL
(250) SN# 0T467335 & UpFLYWHEEL
(250) SN# 0T467335 & Up -
11283-859619T3 FLYWHEEL
(225) SN# 0T467441 & BelowFLYWHEEL
(225) SN# 0T467441 & Below -
11283-859619T3 FLYWHEEL
(250) SN# 0T467334 & BelowFLYWHEEL
(250) SN# 0T467334 & Below -
1211-42979 NUT, (M16)NUT, (M16)
-
1312-33001 WASHER, (.641 x 1.250 x .190)WASHER, (.641 x 1.250 x .190)
-
1419-45907 PLUG, YellowPLUG, Yellow
-
1511-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1684-856583A4 CABLE ASSEMBLY
(7-1/4)CABLE ASSEMBLY
(7-1/4) -
1684-856583A5 CABLE ASSEMBLY
(6-1/4)CABLE ASSEMBLY
(6-1/4) -
1712-4002319 WASHERWASHER
-
1810-82130150 SCREW, (M10 x 50)SCREW, (M10 x 50)
-
1910-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
20850291T3 BELT TENSIONER
SN# 0T598999 & BelowBELT TENSIONER
SN# 0T598999 & Below -
2123-42139 BUSHING
SN# 0T598999 & BelowBUSHING
SN# 0T598999 & Below -
2223-8525622 BUSHING
SN# 0T598999 & BelowBUSHING
SN# 0T598999 & Below -
2310-4007180 SCREW, (M10 x 45)
SN# 0T598999 & BelowSCREW, (M10 x 45)
SN# 0T598999 & Below
