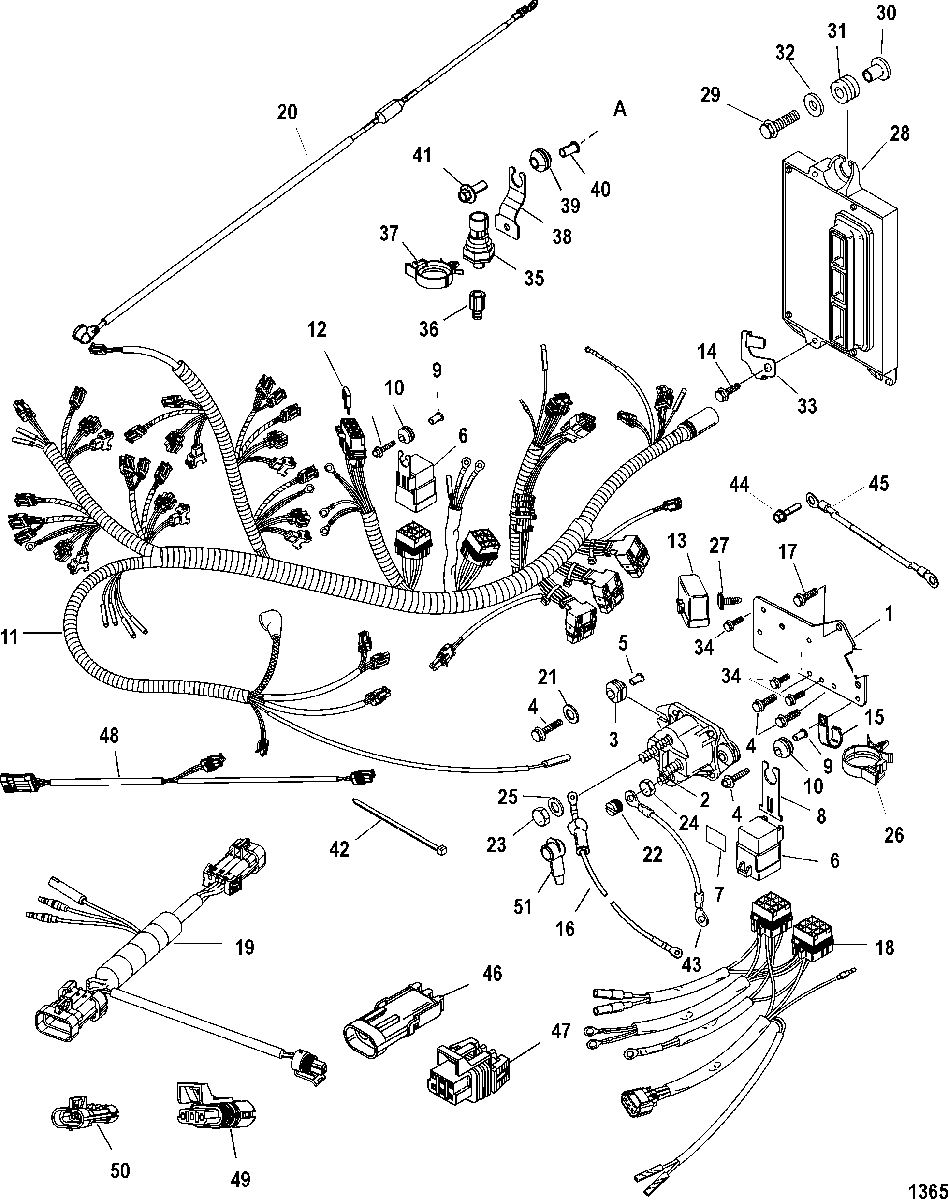

Solenoid Plate(Serial Number 1B226999 & Below) для Mercury - 200 (3.0L EFI) 0T801000 THRU 1B417701
-
№АртикулНазвание
-
1858366T2 PLATEPLATE
-
289-817109A2 SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)SOLENOID ASSEMBLY, (#10-32 / .3125-18 Terminals)
-
325-822179 GROMMETGROMMET
-
410-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
523-818968 BUSHINGBUSHING
-
6882751A1 RELAY ASSEMBLYRELAY ASSEMBLY
-
7NSS NOT SOLD SEPARATE, DecalNOT SOLD SEPARATE, Decal
-
8828102 BRACKETBRACKET
-
923-818968 BUSHINGBUSHING
-
1025-818967 GROMMETGROMMET
-
1184-880005T2 HARNESS ASSEMBLY, Engine WiringHARNESS ASSEMBLY, Engine Wiring
-
1288-832969T20 FUSE, Mini - Yellow - 20 Ampere
(20 AMP)FUSE, Mini - Yellow - 20 Ampere
(20 AMP) -
1288-832969T05 FUSE, Mini - Tan - 5 Ampere
(5 AMP)FUSE, Mini - Tan - 5 Ampere
(5 AMP) -
13858754 COVER, FuseCOVER, Fuse
-
-879346A41 HARNESS ASSEMBLY (TPS)HARNESS ASSEMBLY (TPS)
-
-879346A52 HARNESS ASSEMBLY, Encoder, Crank Position SensorHARNESS ASSEMBLY, Encoder, Crank Position Sensor
-
-84-881262A2 HARNESS ASSEMBLY, Alternator, AlternatorHARNESS ASSEMBLY, Alternator, Alternator
-
1410-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
1554-55098 J CLIPJ CLIP
-
1684-882830A1 CABLE ASSEMBLYCABLE ASSEMBLY
-
1710-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
1884-819514T18 HARNESS ASSEMBLY, TrimHARNESS ASSEMBLY, Trim
-
1984-859244T1 HARNESS ASSEMBLY, Digital AdaptorHARNESS ASSEMBLY, Digital Adaptor
-
2084-878231A6 HARNESS ASSEMBLY, Fuse - 100 AmpereHARNESS ASSEMBLY, Fuse - 100 Ampere
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-813938 CAP NUT, (#10-32)CAP NUT, (#10-32)
-
2311-68292 NUT, (.312-18)NUT, (.312-18)
-
2411-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2513-53166 LOCKWASHER, (.312)LOCKWASHER, (.312)
-
2654-858755 CLIP, (1.00)CLIP, (1.00)
-
2754-828991T CLIPCLIP
-
2889790644T PCM, Propulsion Control Module
(200) SN# 0T920996 & BelowPCM, Propulsion Control Module
(200) SN# 0T920996 & Below -
2889790644T PCM, Propulsion Control Module
(200) SN# 0T920997 & UpPCM, Propulsion Control Module
(200) SN# 0T920997 & Up -
2889790645T PCM, Propulsion Control Module
(225) SN# 0T920531 & BelowPCM, Propulsion Control Module
(225) SN# 0T920531 & Below -
2889790645T PCM, Propulsion Control Module
(225) SN# 0T920532 & UpPCM, Propulsion Control Module
(225) SN# 0T920532 & Up -
2889790647T PCM, Propulsion Control Module
(3L Work) SN# 0T920531 & BelowPCM, Propulsion Control Module
(3L Work) SN# 0T920531 & Below -
2889790647T PCM, Propulsion Control Module
(3L Work) SN# 0T920532 & UpPCM, Propulsion Control Module
(3L Work) SN# 0T920532 & Up -
2889790646T PCM, Propulsion Control Module
(250) SN# 0T920525 & BelowPCM, Propulsion Control Module
(250) SN# 0T920525 & Below -
2889790646T PCM, Propulsion Control Module
(250) SN# 0T920526 & UpPCM, Propulsion Control Module
(250) SN# 0T920526 & Up -
2910-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3023-856954 BUSHINGBUSHING
-
3125-834985 GROMMETGROMMET
-
3212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
338590881 CLIPCLIP
-
3410-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
35881879A2 SENSOR KIT, (100 PSI)SENSOR KIT, (100 PSI)
-
3622-892403 FITTING
SN# 0T979999 & BelowFITTING
SN# 0T979999 & Below -
3622-892403 FITTING
SN# 0T980000 & UpFITTING
SN# 0T980000 & Up -
3754-883066 CLIP, (.865)CLIP, (.865)
-
38859313 BRACKETBRACKET
-
3925-818967 GROMMETGROMMET
-
4023-818968 BUSHING, To BlockBUSHING, To Block
-
4110-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
4254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
4384-88807A16 CABLE ASSEMBLY, (4.00 Inches) BlackCABLE ASSEMBLY, (4.00 Inches) Black
-
4410-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
4584-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
4584-88439A25 CABLE ASSEMBLY, Battery - PositiveCABLE ASSEMBLY, Battery - Positive
-
46832948A1 CONNECTOR ASSEMBLYCONNECTOR ASSEMBLY
-
47881065A1 CONNECTOR, 6 Pin PlugCONNECTOR, 6 Pin Plug
-
4884-882815A1 HARNESS ASSEMBLY (200/3.0L Work)HARNESS ASSEMBLY (200/3.0L Work)
-
49881175A1 CAP ASSEMBLY, 3 Position-Female Connector (Counter Rotation)CAP ASSEMBLY, 3 Position-Female Connector (Counter Rotation)
-
50881176A1 CAP ASSEMBLY, 3 Position-Male Connector (Counter Rotation)CAP ASSEMBLY, 3 Position-Male Connector (Counter Rotation)
-
5185-8500671 BOOT, Insulator - RedBOOT, Insulator - Red
-
-13540 CAP, FemaleCAP, Female
