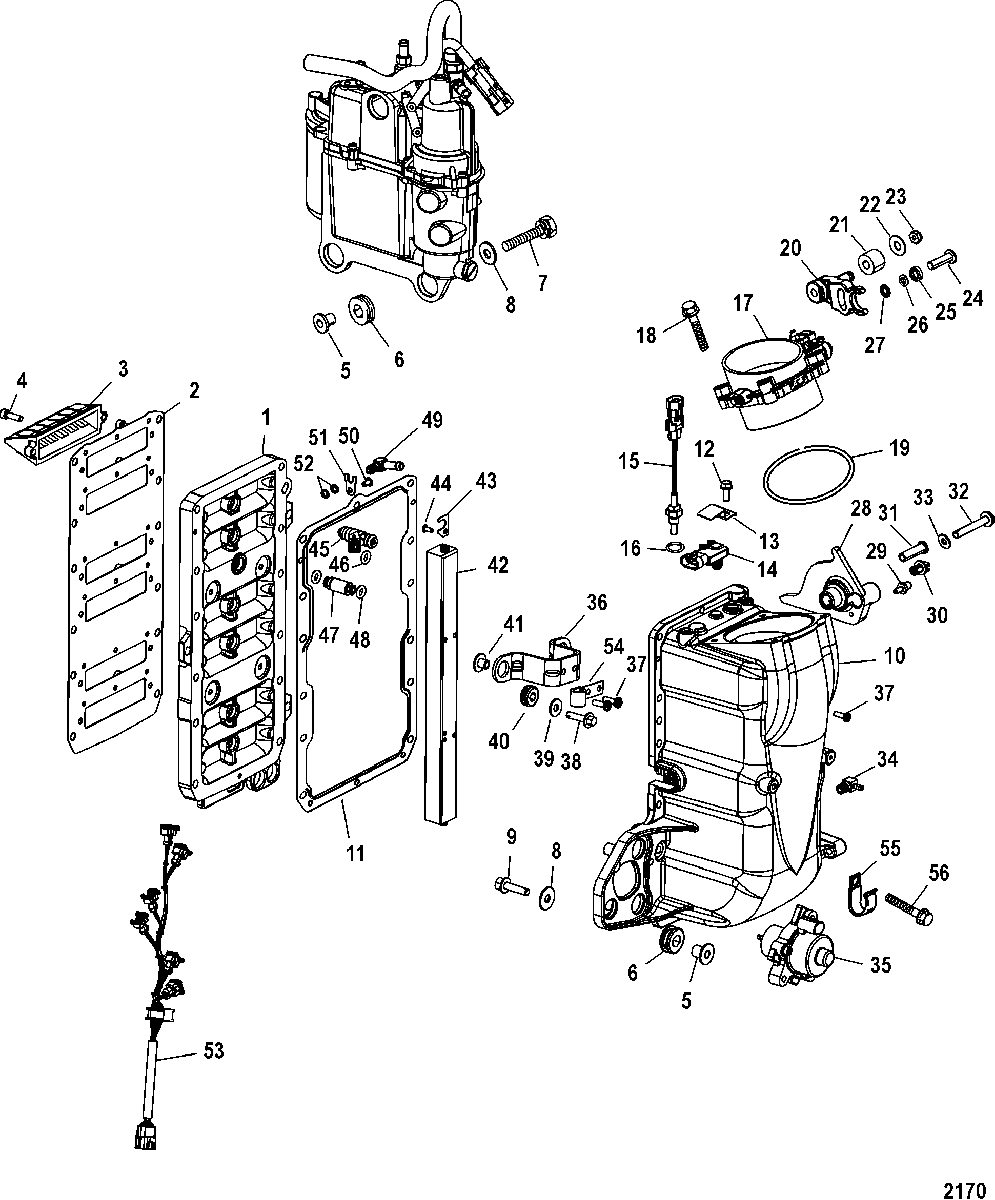

Fuel Management для Mercury - 200 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
-880004T08 MANAGEMENT ASSEMBLY, FuelMANAGEMENT ASSEMBLY, Fuel
-
1883951T1 ADAPTOR PLATEADAPTOR PLATE
-
227-804680 GASKETGASKET
-
3828623T4 REED BLOCKREED BLOCK
-
410-8555252 SCREW, (M6)SCREW, (M6)
-
523-855364 BUSHINGBUSHING
-
625-855362001 GROMMETGROMMET
-
710-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
812-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
910-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
10883950T1 PLENUM KIT, AirPLENUM KIT, Air
-
1127-804679004 GASKETGASKET
-
1210-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
13884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
14854445 SENSOR, MAPSENSOR, MAP
-
15885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
17883949T1 THROTTLE BODY KITTHROTTLE BODY KIT
-
1810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1925-855426 O-RINGO-RING
-
20858851A03 LEVER ASSEMBLY, ThrottleLEVER ASSEMBLY, Throttle
-
218M0072162 ROLLERROLLER
-
2212-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2311-826709104 NUT, (#8-32) Stainless SteelNUT, (#8-32) Stainless Steel
-
2410-889354 SCREW, SpecialSCREW, Special
-
258M0095734 WASHER, CuppedWASHER, Cupped
-
268M0095734 WASHER, SpoolWASHER, Spool
-
2713-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
28858353A08 CAM ASSEMBLYCAM ASSEMBLY
-
298235694 BALL, ThreadedBALL, Threaded
-
3023-932481 BUSHINGBUSHING
-
3123-8807371 BUSHINGBUSHING
-
3210-40011155 SCREW, (M8 x 55) Stainless SteelSCREW, (M8 x 55) Stainless Steel
-
3312-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
3422-993211 FITTINGFITTING
-
358M0128081 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
36883926 BRACKETBRACKET
-
3710-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
3810-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3912-4002316 WASHERWASHER
-
4025-834985 GROMMETGROMMET
-
4123-822003 BUSHINGBUSHING
-
42883952T1 FUEL RAILFUEL RAIL
-
438833821 RETAINERRETAINER
-
4410-840118 SCREW, (#8-32 x .380)SCREW, (#8-32 x .380)
-
45840481T01 INJECTOR ASSEMBLYINJECTOR ASSEMBLY
-
4625-895239A01 O-RING KITO-RING KIT
-
478832151 TUBETUBE
-
4825-883355 O-RINGO-RING
-
4922-883940 FITTINGFITTING
-
5010-883376 SCREW, (#10-24 x .375)SCREW, (#10-24 x .375)
-
51883382 RETAINERRETAINER
-
5225-20385 O-RING, (.239 x .070)O-RING, (.239 x .070)
-
5384-880745T1 HARNESS ASSEMBLY, Fuel RailHARNESS ASSEMBLY, Fuel Rail
-
5454-883941 CLAMPCLAMP
-
5554-65292 J CLIP (Use where Applicable)J CLIP (Use where Applicable)
-
5610-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-883892A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-883894A07 POWERHEAD ASSEMBLY
(250)POWERHEAD ASSEMBLY
(250)
