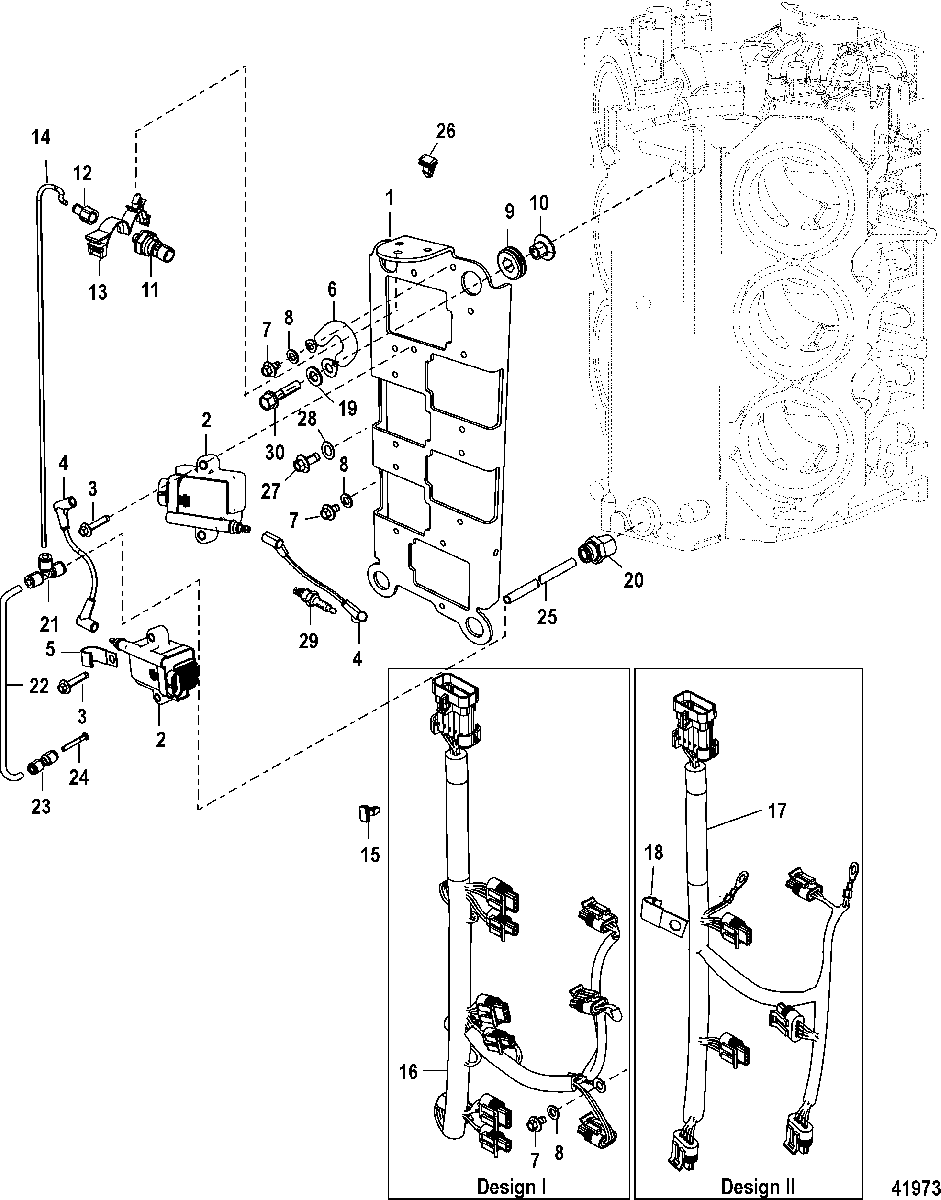

Coil Plate для Mercury - 200 (DFI) 3.0L 1B912786 & Up
-
№АртикулНазвание
-
1884272T PLATE, Coil MountingPLATE, Coil Mounting
-
2339-8M0077473 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
310-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
484-881908T CABLE SETCABLE SET
-
554-55098 J CLIPJ CLIP
-
684-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
710-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
925-833155 GROMMETGROMMET
-
1023-8502341 BUSHINGBUSHING
-
11881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
1222-892403 FITTINGFITTING
-
1354-883066 CLIP, (.865)CLIP, (.865)
-
1432-85978571 TUBING, (52.00 Inches Bulk), Cut to 18 InchesTUBING, (52.00 Inches Bulk), Cut to 18 Inches
-
1554-879962 CLIPCLIP
-
-879346A51 HARNESS REPAIR KITHARNESS REPAIR KIT
-
1684-892972T05 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
1754-54457 J CLIPJ CLIP
-
1812-4002318 WASHERWASHER
-
1922-881866 FITTINGFITTING
-
2022-875207 TEE, FittingTEE, Fitting
-
2132-85978571 TUBING, (52.00 Inches Bulk), Cut to 44 InchesTUBING, (52.00 Inches Bulk), Cut to 44 Inches
-
2222-859747 COUPLERCOUPLER
-
2322-859732 PLUGPLUG
-
2432-85978571 TUBING, (52.00 Inches Bulk), Cut to 5 InchesTUBING, (52.00 Inches Bulk), Cut to 5 Inches
-
2554-879962 CLIPCLIP
-
2610-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
2712-36001 WASHERWASHER
-
2833-843220Q SPARK PLUGSPARK PLUG
-
2910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
