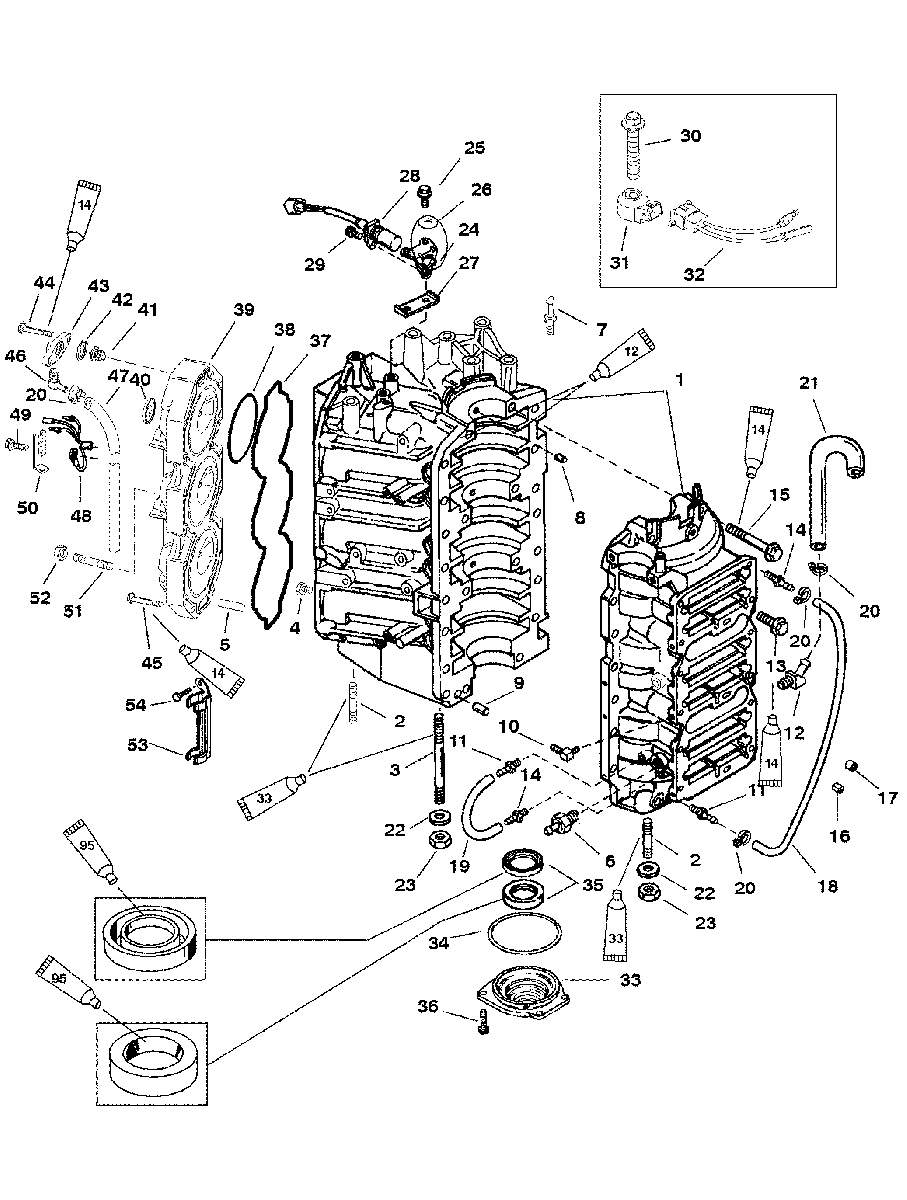

CYLINDER BLOCK AND END CAP для Mercury - 200 (DFI) 0G386496 THRU 0G589999
-
№АртикулНазвание
-
331171-9787A4 LOWER END CAPLOWER END CAP
-
3425-62700 O RINGO RING
-
3526-8308981 OIL SEALOIL SEAL
-
3610-82130020 SCREW (M6 X 1)SCREW (M6 X 1)
-
37818574 SEAL- CYLINDER HEADSEAL- CYLINDER HEAD
-
3825-818573 O RINGO RING
-
39902-835431A1 CYLINDER HEAD
(STARBOARD)CYLINDER HEAD
(STARBOARD) -
39902-835432A1 CYLINDER HEAD
(PORT)CYLINDER HEAD
(PORT) -
4012-828694A1 WAHER-CUPPEDWAHER-CUPPED
-
41833072003 THERMOSTAT (143 DEGREES)THERMOSTAT (143 DEGREES)
-
4227-62386001 GASKET- THERMOSTATGASKET- THERMOSTAT
-
438M0039353 COVER- THERMOSTATCOVER- THERMOSTAT
-
4410-82130025 SCREW (M6 X 25)SCREW (M6 X 25)
-
4510-8M0045380 SCREW (M8 X 50)SCREW (M8 X 50)
-
4622-8167811 ELBOWELBOW
-
4732-77653101 TUBING (21-1/2 IN. & 23 IN.)TUBING (21-1/2 IN. & 23 IN.)
-
4813536A14 TEMPERATURE SENSORTEMPERATURE SENSOR
-
4910-81893412 SCREW (M8 X 12)SCREW (M8 X 12)
-
50828523 SENSOR RETAINERSENSOR RETAINER
-
5116-903509 STUDSTUD
-
5211-826292 NUTNUT
-
538266241 CLAMPCLAMP
-
5410-82130012 SCREW (M6 X 1)SCREW (M6 X 1)
-
-27-814195A97 GASKET SETGASKET SET
-
-809973A97 POWERHEADPOWERHEAD
