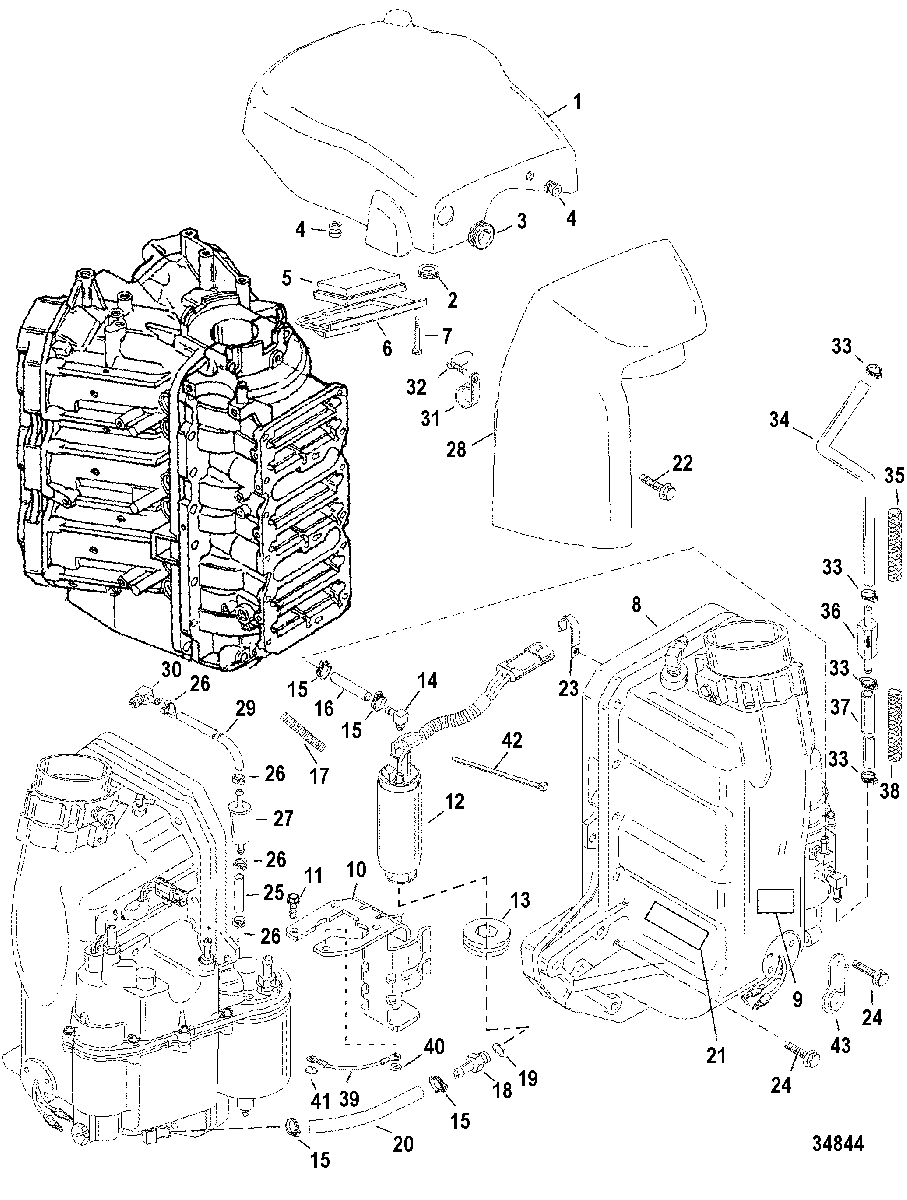

Air Handler для Mercury - 200 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
18M0111168 COVERCOVER
-
225-86361 GROMMETGROMMET
-
325-13467 GROMMET, (.88 Inside Diameter)GROMMET, (.88 Inside Diameter)
-
425-821555001 GROMMETGROMMET
-
535-853333T FILTERFILTER
-
68544932 COVERCOVER
-
710-40056106 SCREW, (M5 x 13)SCREW, (M5 x 13)
-
8850287T10 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
937-881865 DECAL, Caution, Start In GearDECAL, Caution, Start In Gear
-
10855756A1 BRACKETBRACKET
-
1110-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
128M0047624 PUMP ASSEMBLYPUMP ASSEMBLY
-
1325-856928 GROMMETGROMMET
-
1422-855802A1 ELBOWELBOW
-
1554-13791 CLAMP, (15.7)CLAMP, (15.7)
-
1632-856825 HOSEHOSE
-
1723-85686953 SLEEVE, (27.00 Inches Bulk)SLEEVE, (27.00 Inches Bulk)
-
1822-880862A1 FITTINGFITTING
-
1925-805062 O-RING, (.530 x .082)O-RING, (.530 x .082)
-
2032-856778 HOSEHOSE
-
2137-856985A14 DECAL, EPA Label InformationDECAL, EPA Label Information
-
2210-82130050 SCREW, (M6 x 50)SCREW, (M6 x 50)
-
2354-55098 J CLIP (STARBOARD)J CLIP (STARBOARD)
-
2410-82130045 SCREW, (M6 x 45)SCREW, (M6 x 45)
-
2532-8M0108355 HOSE, (57.00 Inches Bulk) (1-1/4 IN.)HOSE, (57.00 Inches Bulk) (1-1/4 IN.)
-
2654-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2735-855896T FILTERFILTER
-
28854343T7 ATTENUATOR ASSEMBLY, AirATTENUATOR ASSEMBLY, Air
-
2932-8M0108355 HOSE, (57.00 Inches Bulk) (15 IN.)HOSE, (57.00 Inches Bulk) (15 IN.)
-
3022-196881 FITTING, (90 Degree), To Air AttenuatorFITTING, (90 Degree), To Air Attenuator
-
3154-23567 CLIPCLIP
-
3210-69570 SCREW, (#10-16 x .750)SCREW, (#10-16 x .750)
-
3354-856880 CLAMP, Hose (15.3)CLAMP, Hose (15.3)
-
3432-8568261 HOSE, To Fuel CoolerHOSE, To Fuel Cooler
-
3523-85686953 SLEEVE, (27.00 Inches Bulk) (9-1/2 IN.)SLEEVE, (27.00 Inches Bulk) (9-1/2 IN.)
-
3621-8557611 CHECK VALVECHECK VALVE
-
3732-85682239 TUBING, (17.00 Inches Bulk) (14 IN.)TUBING, (17.00 Inches Bulk) (14 IN.)
-
3823-85686953 SLEEVE, (27.00 Inches Bulk) (14 IN.)SLEEVE, (27.00 Inches Bulk) (14 IN.)
-
3984-88807A27 CABLE ASSEMBLYCABLE ASSEMBLY
-
4012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4112-12038 WASHERWASHER
-
4261990 TIE STRAP, (14.00 Inches)TIE STRAP, (14.00 Inches)
-
438275072 RETAINERRETAINER
