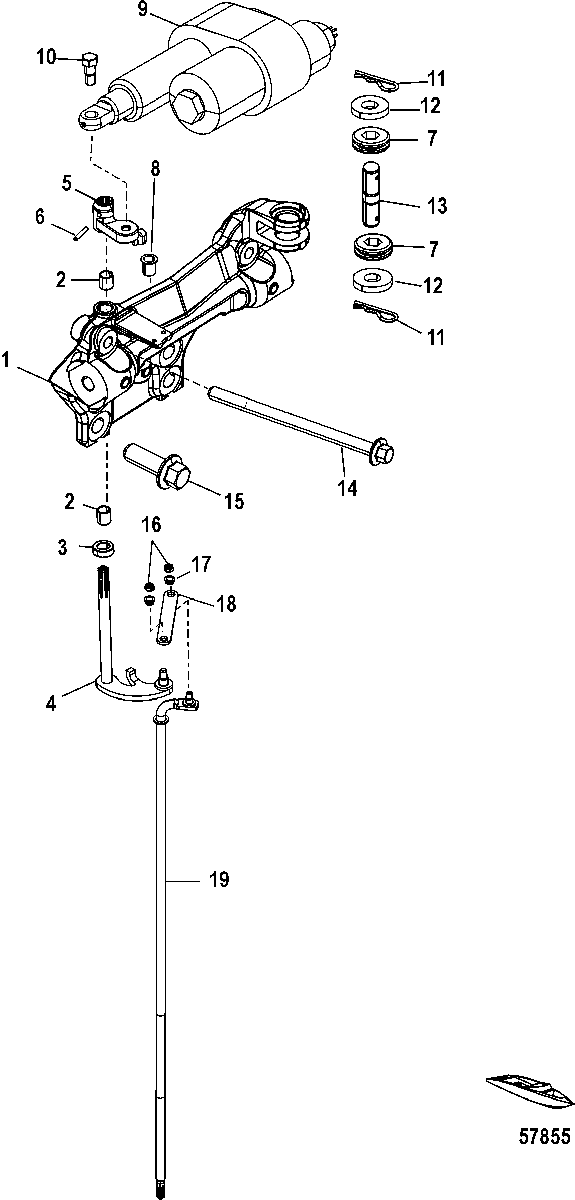

Upper Shift Components для Mercury - 200 PRO VERADO (4-Stroke)(6 CYL.) 2B144123 & Up
-
№АртикулНазвание
-
-8M0103311 BRACKET ASSEMBLY, Front MountBRACKET ASSEMBLY, Front Mount
-
1NSS NOT SOLD SEPARATE, BracketNOT SOLD SEPARATE, Bracket
-
223-892417 BUSHINGBUSHING
-
323-8M0047763 SPACERSPACER
-
48M0047949 SHIFT SHAFTSHIFT SHAFT
-
5889727001 BELL CRANKBELL CRANK
-
617-25319 PIN, (.125 x 0.75 Inches)PIN, (.125 x 0.75 Inches)
-
725-833155 GROMMETGROMMET
-
823-85999 BUSHINGBUSHING
-
98M0124413 SHIFT ACTUATORSHIFT ACTUATOR
-
1010-8855091 SCREWSCREW
-
1118-885512 COTTER PINCOTTER PIN
-
1212-885511003 WASHERWASHER
-
1317-895770 Pin, PivotPin, Pivot
-
1410-895811155 SCREW, (M10 x 155)SCREW, (M10 x 155)
-
1510-8M0103802 SCREW, (M14)SCREW, (M14)
-
1611-8M0045046 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1723-97896 BUSHINGBUSHING
-
18885505 LINK, Shift ShaftLINK, Shift Shaft
-
198M0048178 SHAFT, Shift, (Long)SHAFT, Shift, (Long)
-
198M0048179 SHAFT, Shift (X-Long)SHAFT, Shift (X-Long)
