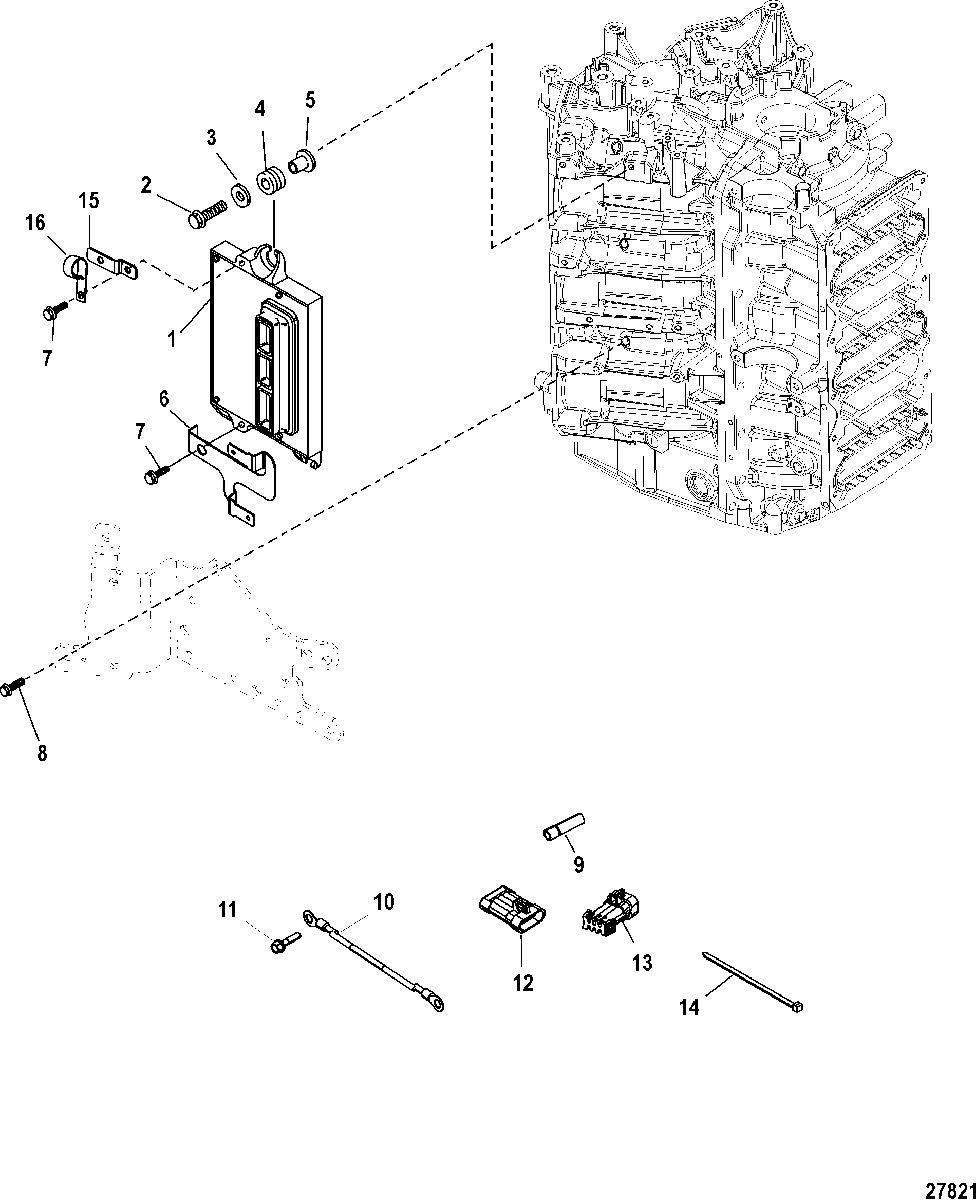

PCM Mounting для Mercury - 200 PRO XS (DFI) 3.0L 1B912786 & Up
-
№АртикулНазвание
-
18M0063455 PROPULSION CONTROL MODULEPROPULSION CONTROL MODULE
-
210-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
312-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
425-834985 GROMMETGROMMET
-
523-856954 BUSHINGBUSHING
-
654-891520001 CLIPCLIP
-
710-82129114 SCREW, (M6 x 14)SCREW, (M6 x 14)
-
810-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
913540 CAP, FemaleCAP, Female
-
1084-88439A26 CABLE ASSEMBLY, Battery - NegativeCABLE ASSEMBLY, Battery - Negative
-
1110-81893420 SCREW, (M8 x 20)SCREW, (M8 x 20)
-
12830796A04 CONNECTOR ASSEMBLY, Weather Cap - MaleCONNECTOR ASSEMBLY, Weather Cap - Male
-
13877613A02 CONNECTOR ASSEMBLY, Weather Cap 6 PinCONNECTOR ASSEMBLY, Weather Cap 6 Pin
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
15858953 BRACKETBRACKET
-
1654-65292 J CLIPJ CLIP
