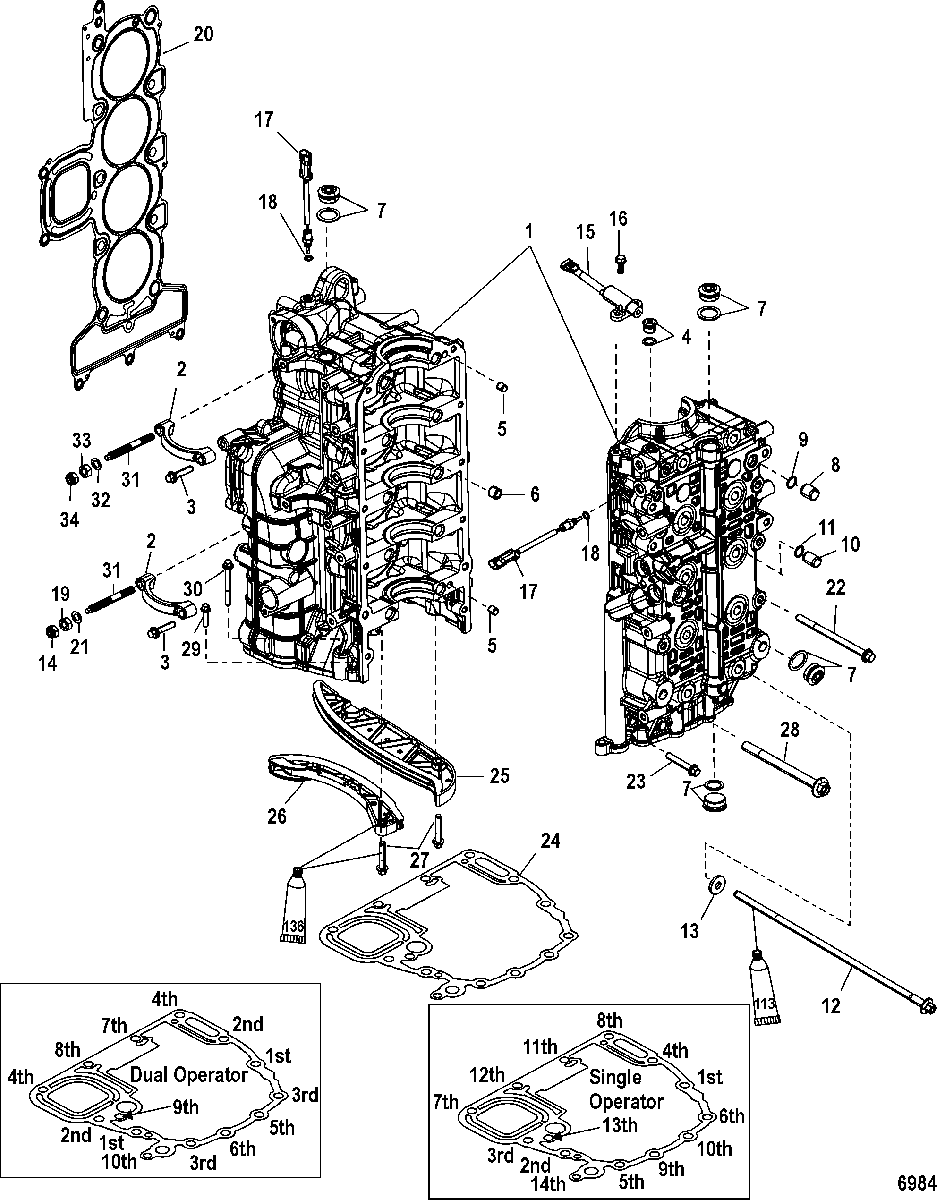

Cylinder Block для Mercury - 200 VERADO (4-STROKE)(4 CYL.) 1B517159 & Up
-
№АртикулНазвание
-
1800-880504A13 CYLINDER BLOCK ASSEMBLYCYLINDER BLOCK ASSEMBLY
-
28M0111325 BRACKET, Mounting-Starter MotorBRACKET, Mounting-Starter Motor
-
310-8M0103815 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
419-889767 PLUG, (12 mm)PLUG, (12 mm)
-
517-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
623-893392001 DAMPERDAMPER
-
719-896951 PLUG, (24 mm)PLUG, (24 mm)
-
719-891953 PLUG, (18 mm)PLUG, (18 mm)
-
817-880524 PIN, Dowel (14 mm)PIN, Dowel (14 mm)
-
925-884409 O-RINGO-RING
-
1017-884424 PIN, Dowel (11 mm)PIN, Dowel (11 mm)
-
1125-884423 O-RINGO-RING
-
1210-8M4501000 SCREW, (M10 x 342)SCREW, (M10 x 342)
-
1312-892573001 WASHERWASHER
-
1411-401388 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
158M0082988 SENSORSENSOR
-
1610-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
178M0142542 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1825-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
1911-400213 NUT, (M8) Stainless SteelNUT, (M8) Stainless Steel
-
2027-8M0024565 GASKET, HeadGASKET, Head
-
2112-36001 WASHERWASHER
-
2210-895810115 SCREW, (M8 x 115)SCREW, (M8 x 115)
-
2310-895810050 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2427-896142 GASKET, Block to AdaptorGASKET, Block to Adaptor
-
25880559 GUIDE, FixedGUIDE, Fixed
-
26880557 GUIDE, MoveableGUIDE, Moveable
-
2710-892456045 SCREWSCREW
-
2810-8M0103829 SCREW, (M10 x 120)SCREW, (M10 x 120)
-
2910-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3010-8M0103818 SCREW, (M8 x 75)SCREW, (M8 x 75)
-
3116-8M0022161 STUD, (M8 x 1.5)STUD, (M8 x 1.5)
-
-27-896142A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-896499A08 LONG BLOCK ASSEMBLYLONG BLOCK ASSEMBLY
