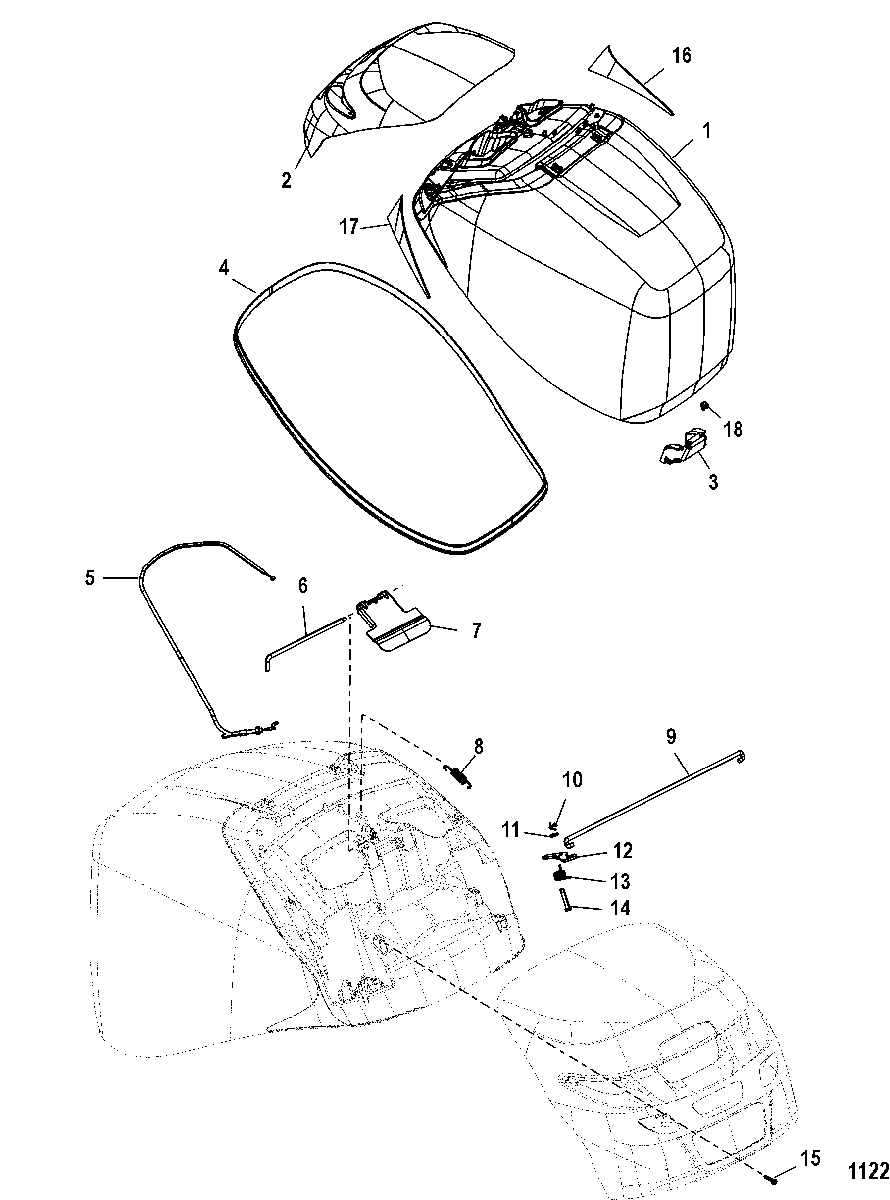

Top Cowl для Mercury - 200 VERADO (4-STROKE)(6 CYL.) 0P409357 THRU 0P464487
-
№АртикулНазвание
-
1100-8M0063711 TOP COWL ASSEMBLY
(Mercury)TOP COWL ASSEMBLY
(Mercury) -
1100-8M0050000 TOP COWL ASSEMBLY
(Mariner)TOP COWL ASSEMBLY
(Mariner) -
2885354T01 CAP, Air Dam
(Mercury)CAP, Air Dam
(Mercury) -
2895838T01 CAP, Air Dam
(Mariner)CAP, Air Dam
(Mariner) -
3888971 FRONT LATCH RECEIVERFRONT LATCH RECEIVER
-
48M0111178 SEAL, Top CowlSEAL, Top Cowl
-
58M0127199 CABLECABLE
-
617-888959 PIN, HingePIN, Hinge
-
7888956 LATCH, Hand LeverLATCH, Hand Lever
-
824-895373 SPRINGSPRING
-
9888955 LINK, Latch ConnectingLINK, Latch Connecting
-
1018-26953 COTTER PINCOTTER PIN
-
1112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
12888952 LINKAGE ARMLINKAGE ARM
-
1324-888953 SPRINGSPRING
-
1417-822417 PINPIN
-
1510-888950020 SCREW, (M4 x 20 mm) (M4 x 1.75)SCREW, (M4 x 20 mm) (M4 x 1.75)
-
16888970A01 APPLIQUE, Port (Port)
(Mercury)APPLIQUE, Port (Port)
(Mercury) -
16895839A01 APPLIQUE, Port (Port)
(Mariner)APPLIQUE, Port (Port)
(Mariner) -
17888969 APPLIQUE, Starboard (Starboard)
(Mercury)APPLIQUE, Starboard (Starboard)
(Mercury) -
17895840 APPLIQUE, Starboard (Starboard)
(Mariner)APPLIQUE, Starboard (Starboard)
(Mariner) -
1810-4010610 SCREW, (M6 x 10) Stainless SteelSCREW, (M6 x 10) Stainless Steel
-
-37-892564A05 DECAL SET
(Mercury 200)DECAL SET
(Mercury 200) -
-37-859271A05 DECAL SET
(Mercury 225)DECAL SET
(Mercury 225) -
-37-895252A05 DECAL SET
(Mercury 250)DECAL SET
(Mercury 250) -
-37-895253A05 DECAL SET
(Mercury 275)DECAL SET
(Mercury 275) -
-37-892571A07 DECAL SET
(Mariner 200)DECAL SET
(Mariner 200) -
-37-892871A07 DECAL SET
(Mariner 225)DECAL SET
(Mariner 225) -
-37-895254A07 DECAL SET
(Mariner 250)DECAL SET
(Mariner 250) -
-37-895255A07 DECAL SET
(Mariner 275)DECAL SET
(Mariner 275)
