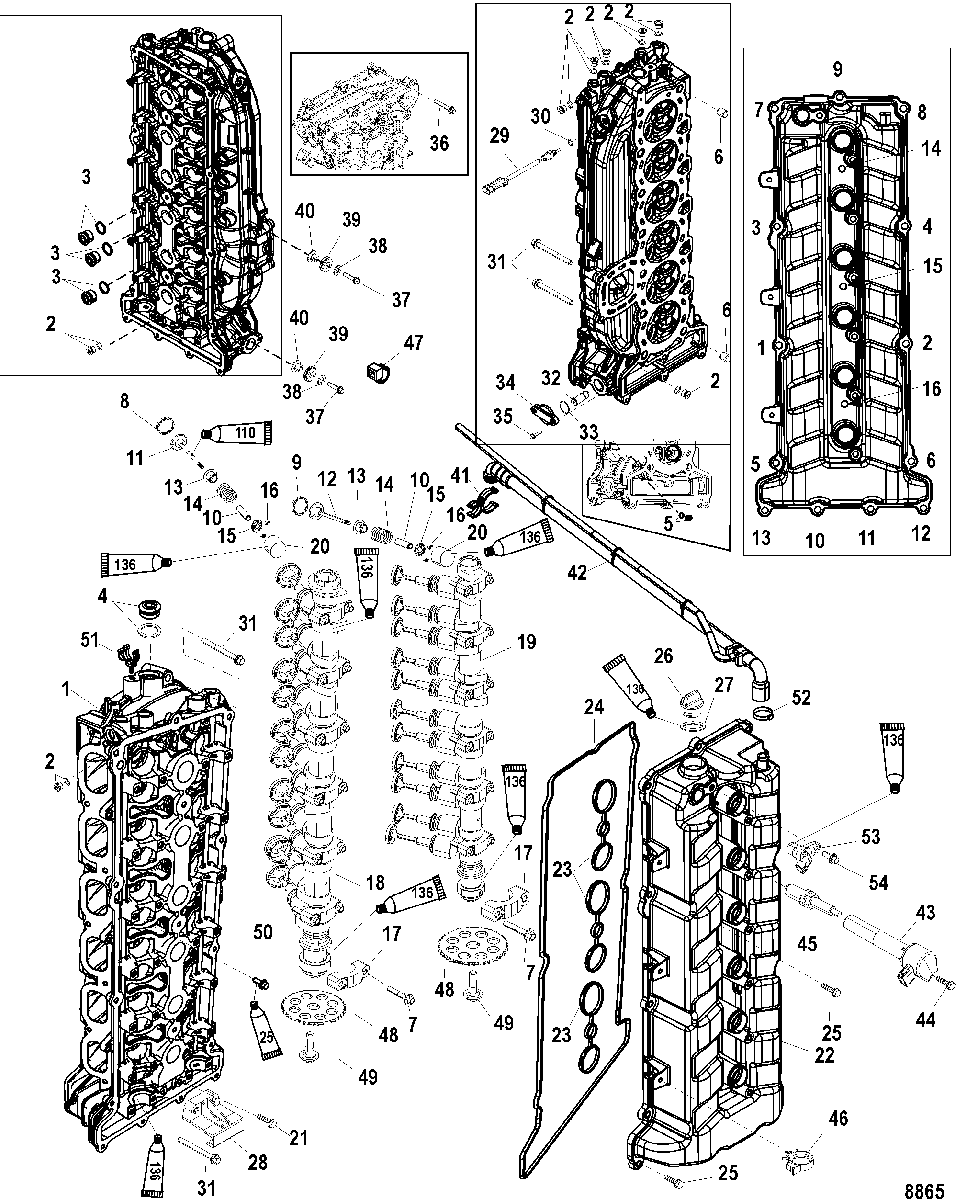

Cylinder Head and Camshaft для Mercury - 200 VERADO (4-STROKE)(6 CYL.) 1B227000 THRU 1B381711
-
№АртикулНазвание
-
-900-880536A10 CYLINDER HEAD ASSEMBLY, CompleteCYLINDER HEAD ASSEMBLY, Complete
-
1900-8M0103282 CYLINDER HEAD ASSEMBLYCYLINDER HEAD ASSEMBLY
-
219-889767 PLUG, (12 mm)PLUG, (12 mm)
-
319-891953 PLUG, (18 mm)PLUG, (18 mm)
-
419-896951 PLUG, (24 mm)PLUG, (24 mm)
-
519-8M0087446 PLUG, (10 mm)PLUG, (10 mm)
-
617-880524 PIN, Dowel (14 mm)PIN, Dowel (14 mm)
-
710-892454035 BOLT, (M6 x 36 MM)BOLT, (M6 x 36 MM)
-
8880533 SEAT, Intake ValveSEAT, Intake Valve
-
98M0089477 SEAT, Exhaust ValveSEAT, Exhaust Valve
-
10880537 GUIDE, Intake and Exhaust ValvesGUIDE, Intake and Exhaust Valves
-
1120-898907 VALVE, IntakeVALVE, Intake
-
1220-898908 VALVE, ExhaustVALVE, Exhaust
-
1326-896880 SEAL, ValveSEAL, Valve
-
1424-8M0103092 SPRING, Intake and Exhaust ValveSPRING, Intake and Exhaust Valve
-
158M0908500 RETAINER ASSEMBLY, ValvesRETAINER ASSEMBLY, Valves
-
1628-880543 KEYKEY
-
17NSS NOT SOLD SEPARATE, CAPNOT SOLD SEPARATE, CAP
-
18400-892112T02 CAMSHAFT, IntakeCAMSHAFT, Intake
-
19400-892113T04 CAMSHAFT, ExhaustCAMSHAFT, Exhaust
-
20899912001 TAPPET
(2.996)TAPPET
(2.996) -
20899912002 TAPPET
(3.021)TAPPET
(3.021) -
20899912003 TAPPET
(3.046)TAPPET
(3.046) -
20899912004 TAPPET
(3.071)TAPPET
(3.071) -
20899912005 TAPPET
(3.096)TAPPET
(3.096) -
20899912006 TAPPET
(3.118)TAPPET
(3.118) -
20899912007 TAPPET
(3.138)TAPPET
(3.138) -
20899912008 TAPPET
(3.158)TAPPET
(3.158) -
20899912009 TAPPET
(3.178)TAPPET
(3.178) -
20899912010 TAPPET
(3.198)TAPPET
(3.198) -
20899912011 TAPPET
(3.218)TAPPET
(3.218) -
20899912012 TAPPET
(3.238)TAPPET
(3.238) -
20899912013 TAPPET
(3.258)TAPPET
(3.258) -
20899912014 TAPPET
(3.278)TAPPET
(3.278) -
20899912015 TAPPET
(3.298)TAPPET
(3.298) -
20899912016 TAPPET
(3.318)TAPPET
(3.318) -
20899912017 TAPPET
(3.338)TAPPET
(3.338) -
20899912018 TAPPET
(3.358)TAPPET
(3.358) -
20899912019 TAPPET
(3.378)TAPPET
(3.378) -
20899912020 TAPPET
(3.398)TAPPET
(3.398) -
20899912021 TAPPET
(3.418)TAPPET
(3.418) -
20899912022 TAPPET
(3.438)TAPPET
(3.438) -
20899912023 TAPPET
(3.458)TAPPET
(3.458) -
20899912024 TAPPET
(3.478)TAPPET
(3.478) -
20899912025 TAPPET
(3.498)TAPPET
(3.498) -
20899912026 TAPPET
(3.518)TAPPET
(3.518) -
20899912027 TAPPET
(3.538)TAPPET
(3.538) -
20899912028 TAPPET
(3.558)TAPPET
(3.558) -
20899912029 TAPPET
(3.578)TAPPET
(3.578) -
20899912030 TAPPET
(3.598)TAPPET
(3.598) -
20899912031 TAPPET
(3.621)TAPPET
(3.621) -
20899912032 TAPPET
(3.646)TAPPET
(3.646) -
20899912033 TAPPET
(3.671)TAPPET
(3.671) -
20899912034 TAPPET
(3.696)TAPPET
(3.696) -
20899912035 TAPPET
(3.721)TAPPET
(3.721) -
2110-892454030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
22892596T04 COVER, CamshaftCOVER, Camshaft
-
23892584 SEALSEAL
-
24892585 SEALSEAL
-
2510-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
26859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
2725-90196 O-RING, (.921 x .139)O-RING, (.921 x .139)
-
28880558 GUIDE, ShortGUIDE, Short
-
29885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
3025-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
3110-8M0103817 SCREW, (M8 x 60)SCREW, (M8 x 60)
-
32898463A01 TENSIONER ASSEMBLYTENSIONER ASSEMBLY
-
3325-898836 O-RING, OrangeO-RING, Orange
-
341100-8M0064752 END CAP, TensionerEND CAP, Tensioner
-
3510-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
3610-8M0103809 SCREW, (M6 x 40 MM) Stainless SteelSCREW, (M6 x 40 MM) Stainless Steel
-
3710-8M0103814 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
3812-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
3925-833155 GROMMETGROMMET
-
4023-8502341 BUSHINGBUSHING
-
4154-892833 CLIPCLIP
-
4232-889591A05 HOSE ASSEMBLY, BreatherHOSE ASSEMBLY, Breather
-
43339-880615T01 COIL ASSEMBLYCOIL ASSEMBLY
-
4410-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
4533-889246Q39 SPARK PLUG, NGK-ILFR6GSPARK PLUG, NGK-ILFR6G
-
4654-858954 CLIP, (.625)CLIP, (.625)
-
4754-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
4843-880550 SPROCKET, Cam DriveSPROCKET, Cam Drive
-
4910-8M0021532 SCREW, (M12 x 40)
(Left Hand)SCREW, (M12 x 40)
(Left Hand) -
5010-8M0103804 SCREW, (M6 x 12 MM) Stainless SteelSCREW, (M6 x 12 MM) Stainless Steel
-
5154-889746001 CLIPCLIP
-
5254-888988019 CLAMP, (22.6 mm)CLAMP, (22.6 mm)
-
538M0011987 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
5410-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
