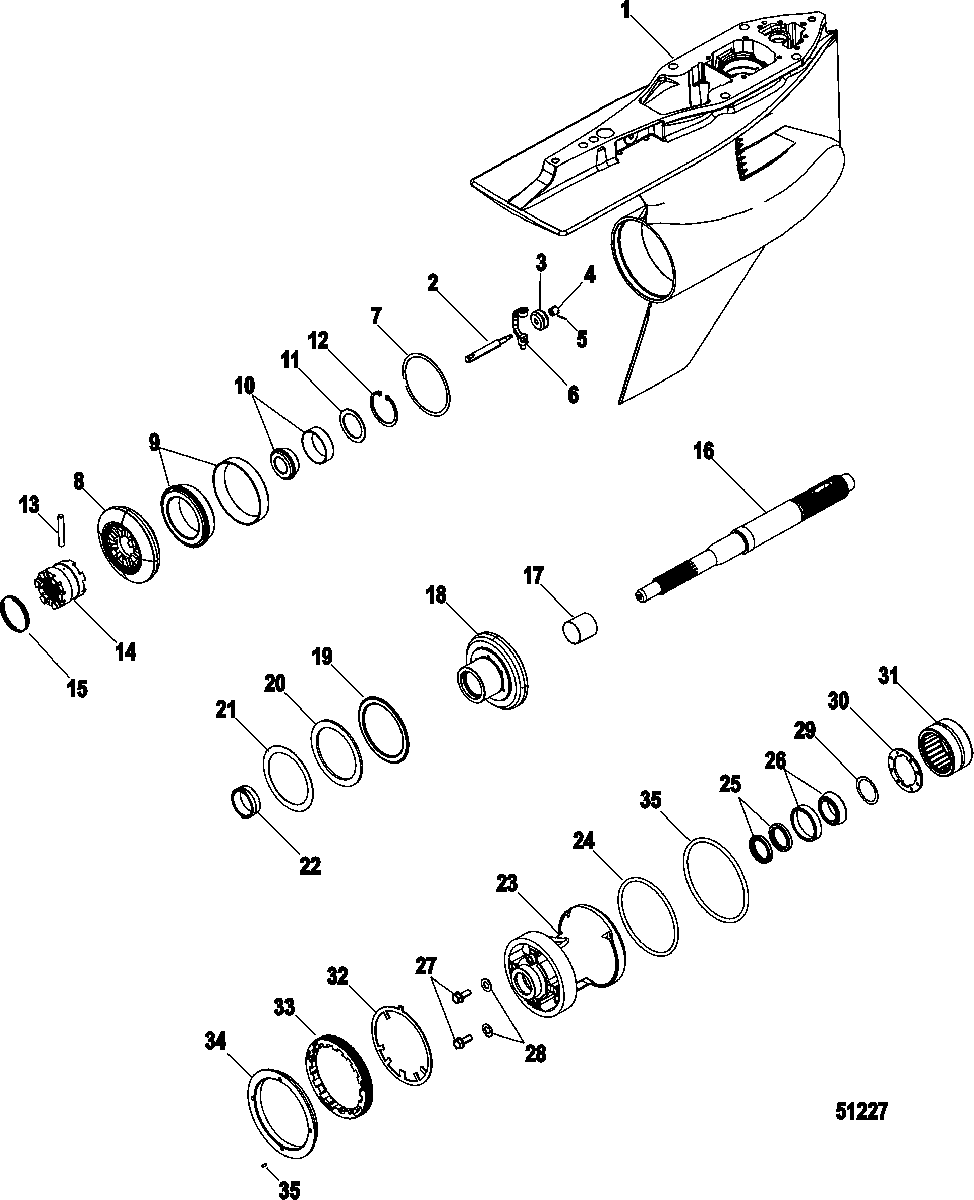

Gear Housing,, Prop Shaft-Standard Rotation, 5.44 Torpedo для Mercury - 200 VERADO (4-STROKE)(6 CYL.) 1B517434 THRU 2B144122
-
№АртикулНазвание
-
-1600-8M0117252 GEAR HOUSING ASSEMBLY, Complete, Black (Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Black (Long)(1.85:1)
300 -
-1600-8M0117239 GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (Long)(1.85:1)
300 -
-1600-8M0117253 GEAR HOUSING ASSEMBLY, Complete, Black (X-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (X-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117241 GEAR HOUSING ASSEMBLY, Complete, Silver (X-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (X-Long)(1.85:1)
300 -
-1600-8M0117255 GEAR HOUSING ASSEMBLY, Complete, Black (XX-Long)(1.85:1)
200/225/250/275/300GEAR HOUSING ASSEMBLY, Complete, Black (XX-Long)(1.85:1)
200/225/250/275/300 -
-1600-8M0117243 GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long)(1.85:1)
300GEAR HOUSING ASSEMBLY, Complete, Silver (XX-Long)(1.85:1)
300 -
-1600-8M0078252 GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (Long)(1.75:1)
300 -
-1600-8M0117246 GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (X-Long)(1.75:1)
300 -
-1600-8M0117247 GEAR HOUSING ASSEMBLY, Complete (XX-Long)(1.75:1)
300GEAR HOUSING ASSEMBLY, Complete (XX-Long)(1.75:1)
300 -
11600-8M0117258 GEAR HOUSING ASSEMBLY, Basic, BlackGEAR HOUSING ASSEMBLY, Basic, Black
-
11600-8M0117251 GEAR HOUSING ASSEMBLY, Basic, SilverGEAR HOUSING ASSEMBLY, Basic, Silver
-
28M0053114 SPOOL ASSEMBLYSPOOL ASSEMBLY
-
3NSS NOT SOLD SEPARATE, SPOOLNOT SOLD SEPARATE, SPOOL
-
4NSS NOT SOLD SEPARATE, SLEEVENOT SOLD SEPARATE, SLEEVE
-
518-469501 COTTER PINCOTTER PIN
-
68M0046215 CRANK, Shifter, 1/4 Pivot PinCRANK, Shifter, 1/4 Pivot Pin
-
715-8M0063270 SHIM SETSHIM SET
-
843-8M0078259 GEAR SET, 13/24 (1.85:1), Forward
1.85:1 RatioGEAR SET, 13/24 (1.85:1), Forward
1.85:1 Ratio -
843-8M0078258 GEAR SET, 12/21(1.75:1), Forward
1.75:1 RatioGEAR SET, 12/21(1.75:1), Forward
1.75:1 Ratio -
931-884323T01 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1031-884325T01 BEARING ASSEMBLY, Roller-TapperedBEARING ASSEMBLY, Roller-Tappered
-
1112-8M0053823 THRUST WASHERTHRUST WASHER
-
1253-8M0051043 RETAINING RINGRETAINING RING
-
1317-8M0045493 PINPIN
-
1452-8M0142871 CLUTCHCLUTCH
-
1524-8M0050575 SPRINGSPRING
-
1644-8M0073657 PROPELLER SHAFT, 1 Inch (1B921719 and below)
1.85:1 RatioPROPELLER SHAFT, 1 Inch (1B921719 and below)
1.85:1 Ratio -
1644-8M0073657 PROPELLER SHAFT, 1 Inch (1B921720 and above)
1.85:1 RatioPROPELLER SHAFT, 1 Inch (1B921720 and above)
1.85:1 Ratio -
1644-8M0142764 PROPELLER SHAFT, 1.25 Inch (1B921719 and below)
1.75:1 RatioPROPELLER SHAFT, 1.25 Inch (1B921719 and below)
1.75:1 Ratio -
1644-8M0142764 PROPELLER SHAFT, 1.25 Inch (1B9217120 and above)
1.75:1 RatioPROPELLER SHAFT, 1.25 Inch (1B9217120 and above)
1.75:1 Ratio -
1723-8M0064306 SPACERSPACER
-
1843-8M0053123 GEAR KIT, Reverse
1.85:1 RatioGEAR KIT, Reverse
1.85:1 Ratio -
1843-8M0053124 GEAR KIT, Reverse
1.75:1 RatioGEAR KIT, Reverse
1.75:1 Ratio -
1931-8M0050692 BEARINGBEARING
-
2012-8M0050688 WASHERWASHER
-
2115-8M0053116 SHIM SETSHIM SET
-
228M0053183 ADAPTORADAPTOR
-
238M0097323 CARRIER ASSEMBLYCARRIER ASSEMBLY
-
2425-8M0000190 O-RING, (4.475 x .210)O-RING, (4.475 x .210)
-
2526-888483 SEAL, OilSEAL, Oil
-
2631-884330T01 BEARING ASSEMBLY, TaperedBEARING ASSEMBLY, Tapered
-
2710-8M0071653 SCREWSCREW
-
2826-830749 SEALSEAL
-
2915-8M0076745 SHIM SETSHIM SET
-
2912-8M0050423 WASHER, .020WASHER, .020
-
2912-8M0050424 WASHER, .022WASHER, .022
-
2912-8M0050425 WASHER, .024WASHER, .024
-
2912-8M0050427 WASHER, .026WASHER, .026
-
2912-8M0050428 WASHER, .028WASHER, .028
-
2912-8M0050429 WASHER, .030WASHER, .030
-
2912-8M0050430 WASHER, .032WASHER, .032
-
2912-8M0050431 WASHER, .034WASHER, .034
-
2912-8M0050432 WASHER, .036WASHER, .036
-
2912-8M0050433 WASHER, .038WASHER, .038
-
2912-8M0050434 WASHER, .040WASHER, .040
-
2912-8M0050435 WASHER, .042WASHER, .042
-
2912-8M0050436 WASHER, .044WASHER, .044
-
2912-8M0050437 WASHER, .046WASHER, .046
-
2912-8M0050438 WASHER, .048WASHER, .048
-
2912-8M0050439 WASHER, .050WASHER, .050
-
3053-8M0056639 RETAINING RINGRETAINING RING
-
3131-8M0050704 BEARING, NeedleBEARING, Needle
-
3214-8M0108527 TAB WASHERTAB WASHER
-
3311-8M0111653 NUT, RetainerNUT, Retainer
-
348M0050726 COVER KITCOVER KIT
-
348M0050821 COVER KIT, Flush, StandardCOVER KIT, Flush, Standard
-
3510-8M0036819 SET SCREW, (10-32)SET SCREW, (10-32)
-
3612-8M0046569 RING, ThrustRING, Thrust
