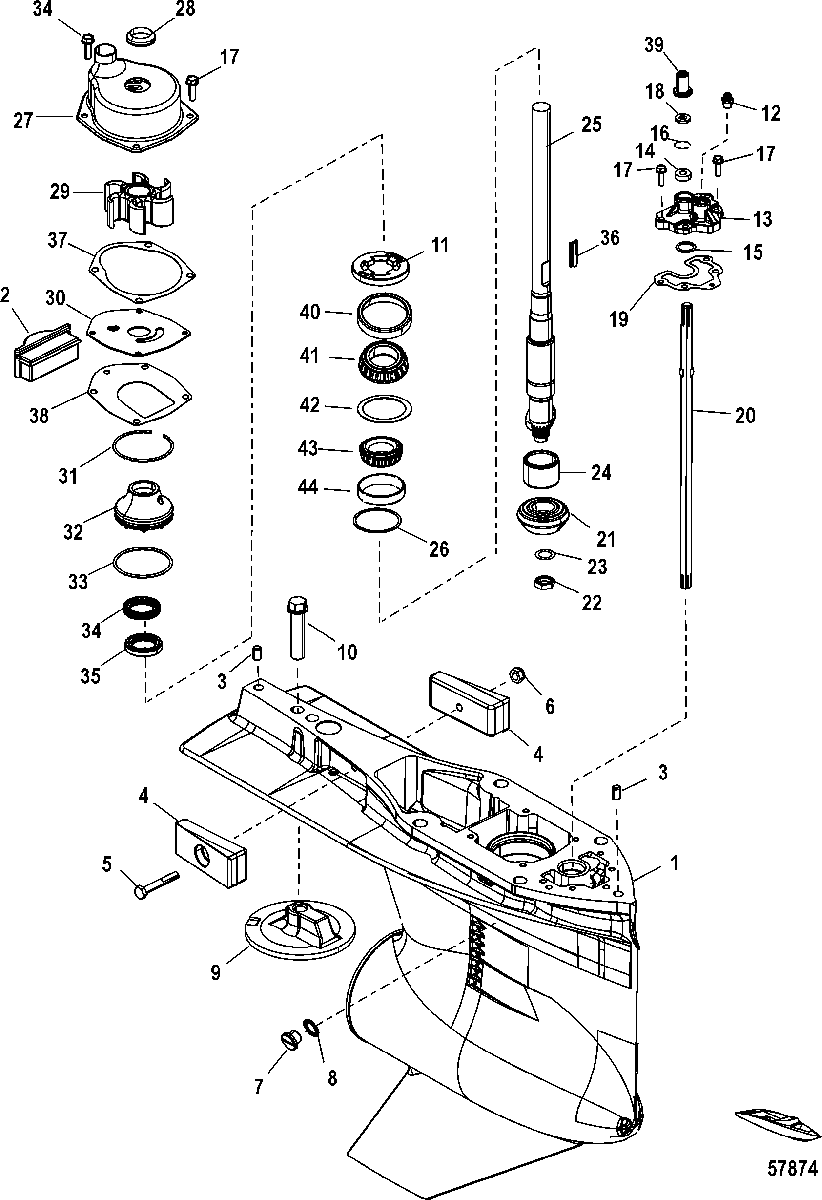

Gear Housing, Driveshaft, 4.80 Torpedo для Mercury - 200 VERADO (4-STROKE)(6 CYL.) 2B144123 & Up
-
№АртикулНазвание
-
-1600-880686T13 GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(200-275)GEAR HOUSING ASSEMBLY, Complete
(Standard-Long)(1.85:1)(200-275) -
-1600-880686T14 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(200-275)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.85:1)(200-275) -
-1600-880686T16 GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long)(1.85:1)(200-275)GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long)(1.85:1)(200-275) -
-1600-880686T15 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long)(1.85:1)(200 thru 275)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long)(1.85:1)(200 thru 275) -
-1600-880686T17 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long)(1.85:1)(200 thru 275)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long)(1.85:1)(200 thru 275) -
-1600-880686T54 GEAR HOUSING ASSEMBLY, Complete
(Standard- Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Standard- Long)(1.75:1)(300) -
-1600-880686T55 GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Standard-X-Long)(1.75:1)(300) -
-1600-880686T56 GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Standard-XX-Long)(1.75:1)(300) -
-1600-880686T57 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-Long)(1.75:1)(300) -
-1600-880686T58 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-X-Long)(1.75:1)(300) -
-1600-880686T59 GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long)(1.75:1)(300)GEAR HOUSING ASSEMBLY, Complete
(Counter Rotation-XX-Long)(1.75:1)(300) -
11600-8M0056631 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
28M0010459 FILLER BLOCKFILLER BLOCK
-
317-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
497-826134Q ANODEANODE
-
510-4000333 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
611-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
710-79953A04 PLUG ASSEMBLY, (.375-16 x .250)PLUG ASSEMBLY, (.375-16 x .250)
-
826-830749 SEALSEAL
-
997-76214Q5 ANODE KIT
(Quicksilver)ANODE KIT
(Quicksilver) -
1010-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
118245191 RETAINERRETAINER
-
1222-881866 FITTINGFITTING
-
138M0047129 COVER ASSEMBLYCOVER ASSEMBLY
-
1426-8164641 SEAL, OilSEAL, Oil
-
1525-896522 O-RING, (799 x .103)O-RING, (799 x .103)
-
1653-8M0046563 RETAINING RINGRETAINING RING
-
1710-8M4503518 SCREW , (M6 X 1.0 X 20)SCREW , (M6 X 1.0 X 20)
-
1812-77674 WASHERWASHER
-
1927-880729 GASKETGASKET
-
20824145 SHIFT SHAFTSHIFT SHAFT
-
21NSS NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of Forward/Pinion Gear Set)NOT SOLD SEPARATE, Pinion Gear 13 Teeth
(Part of Forward/Pinion Gear Set) -
2211-35921 NUT, (.625-18)NUT, (.625-18)
-
2312-92721 WASHERWASHER
-
2431-42647A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
2545-888572 DRIVESHAFT
(Long)DRIVESHAFT
(Long) -
2545-888573 DRIVESHAFT
(X-Long)DRIVESHAFT
(X-Long) -
2545-888574 DRIVESHAFT
(XX-Long)DRIVESHAFT
(XX-Long) -
2615-8M0063268 SHIM SETSHIM SET
-
27817275A09 HOUSING, Water Pump-CompleteHOUSING, Water Pump-Complete
-
2826-861415A1 SEAL KITSEAL KIT
-
2947-43026T2 IMPELLERIMPELLER
-
308172761 FACEPLATEFACEPLATE
-
3153-880719 RING, RetainingRING, Retaining
-
328M0007131 CARRIER ASSEMBLY, Oil SealCARRIER ASSEMBLY, Oil Seal
-
3325-896523 O-RING, (2.175 x .103)O-RING, (2.175 x .103)
-
34NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
35NSS NOT SOLD SEPARATE, Oil SealNOT SOLD SEPARATE, Oil Seal
-
3628-8M0032833 KEYKEY
-
3727-8172771 GASKETGASKET
-
3827-430331 GASKETGASKET
-
3943585 COUPLINGCOUPLING
-
4031-36387A1 BEARING ASSEMBLY, Roller/CupBEARING ASSEMBLY, Roller/Cup
-
41NSS NOT SOLD SEPARATE, Roller BearingNOT SOLD SEPARATE, Roller Bearing
-
4215-8M0063267 SHIM SETSHIM SET
-
4331-48939A2 BEARING, Tapered RollerBEARING, Tapered Roller
-
44NSS NOT SOLD SEPARATE, CUPNOT SOLD SEPARATE, CUP
-
-26-830749A01 SEAL KIT, Gear HousingSEAL KIT, Gear Housing
-
-47-8M0100526 REPAIR KIT, Water Pump ImpellerREPAIR KIT, Water Pump Impeller
-
-817275A08 REPAIR KIT, Water Pump-UpperREPAIR KIT, Water Pump-Upper
