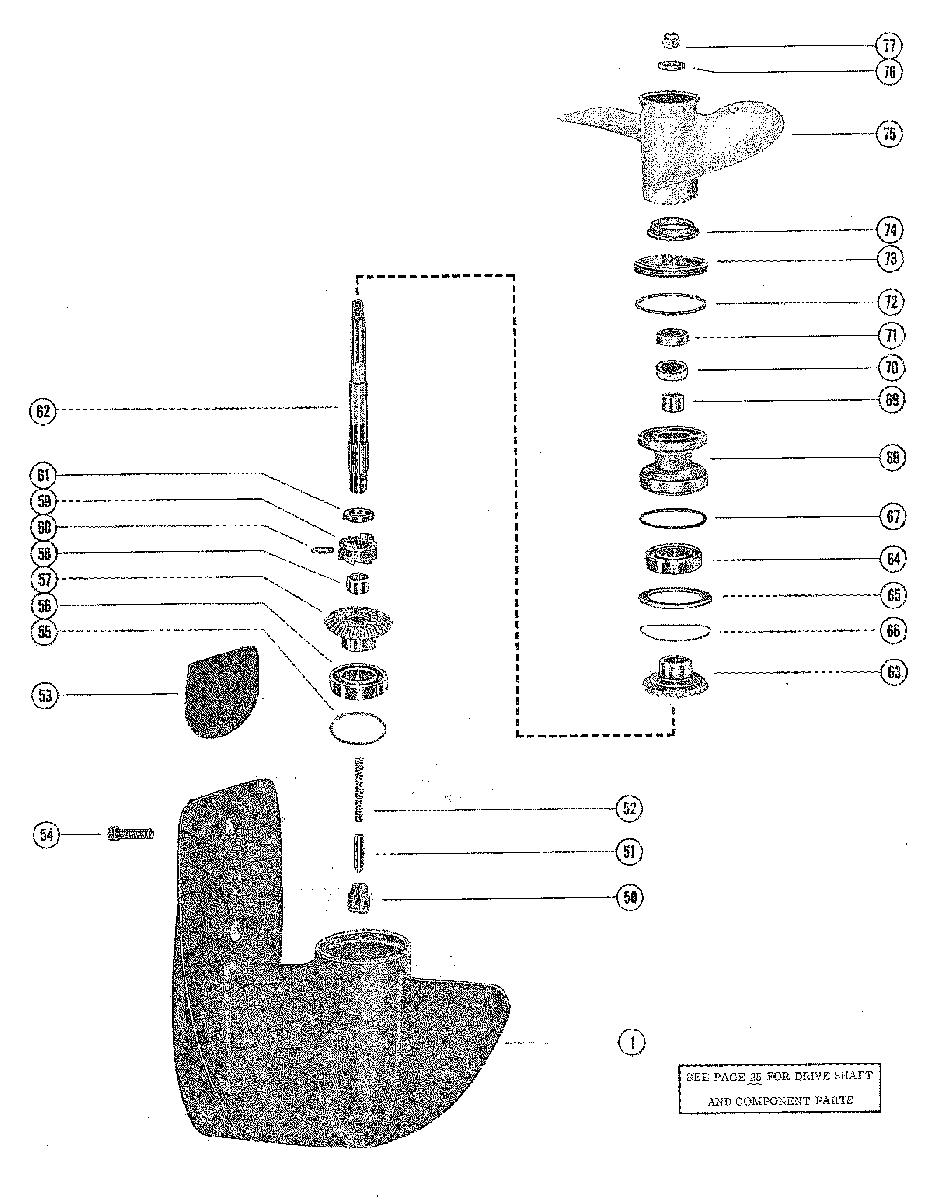

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 200 7012358 THRU 7098522
-
№АртикулНазвание
-
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#8GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#8 -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#8GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#8 -
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#10GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#10 -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#10GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#10 -
-1627-6006A3 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#12GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
- SERIAL GROUP#12 -
-1627-6006A4 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#12GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
- SERIAL GROUP#12 -
11627-6006A5 GEAR HOUSING ASSEMBLY
- SEE PAGE 26 FOR BREAKDOWN UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWGEAR HOUSING ASSEMBLY
- SEE PAGE 26 FOR BREAKDOWN UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
11627-6006A5 GEAR HOUSING ASSEMBLY
- SEE PAGE 26 FOR BREAKDOWN UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPGEAR HOUSING ASSEMBLY
- SEE PAGE 26 FOR BREAKDOWN UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
5058975 CAM, SHIFTCAM, SHIFT
-
5133438 FOLLOWER, CAMFOLLOWER, CAM
-
5224-88435 SPRING, CAM FOLLOWERSPRING, CAM FOLLOWER
-
5397-47820A1 PLATE ASSEMBLY, ANODIC - GEAR HOUSINGPLATE ASSEMBLY, ANODIC - GEAR HOUSING
-
5410-47819 SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")SCREW, ANODIC PLATE TO GEAR HOUSING (1 1/4")
-
5515-20788A1 SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)SHIM, BALL BEARING TO GEAR HOUSING (.002-3-5-10)
-
5630-25398 BEARING, BALL - FORWARD GEARBEARING, BALL - FORWARD GEAR
-
5743-45227A5 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
5831-28157 BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
5952-53518A1 RATCHET ASSEMBLY, SLIDING CLUTCHRATCHET ASSEMBLY, SLIDING CLUTCH
-
6017-53372 PIN, CROSS - RATDCHET TO PROPELLER SHAFTPIN, CROSS - RATDCHET TO PROPELLER SHAFT
-
6124-53373 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
6244-75366A2 PROPELLER SHAFT ASSEMBLY
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOWPROPELLER SHAFT ASSEMBLY
UNITED STATES 4580036 AND BELOW
AUSTRALIA 8043124 AND BELOW
BELGIUM 9137349 AND BELOW
CANADA 7089697 AND BELOW -
6244-75366A2 PROPELLER SHAFT ASSEMBLY
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UPPROPELLER SHAFT ASSEMBLY
UNITED STATES 4580037 AND UP
AUSTRALIA 8043125 AND UP
BELGIUM 9137350 AND UP
CANADA 7089698 AND UP -
6343-45229 REVERSE GEAR ASSEMBLYREVERSE GEAR ASSEMBLY
-
6430-25398 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
6512-33434 WASHER, THRUST - REVERSE GEAR
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWWASHER, THRUST - REVERSE GEAR
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
6571525 SLEEVE, THRUST - REVERSE GEAR
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPSLEEVE, THRUST - REVERSE GEAR
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
6615-33431A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
6725-33465 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
6833402T4 BEARING CARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWBEARING CARRIER ASSEMBLY
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
6872694T1 BEARING CARRIER ASSEMBLY
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPBEARING CARRIER ASSEMBLY
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
6931-28157 BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7026-66303 OIL SEAL, BEARING CARRIER (SPRING LOADED)OIL SEAL, BEARING CARRIER (SPRING LOADED)
-
7126-26805 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
7212-33432 WASHER, GEAR HOUSING COVER
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWWASHER, GEAR HOUSING COVER
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
7333410 COVER, GEAR HOUSING
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOWCOVER, GEAR HOUSING
UNITED STATES 4351589 AND BELOW
AUSTRALIA 8036049 AND BELOW
BELGIUM 9104813 AND BELOW
CANADA 7067847 AND BELOW -
7372710 COVER, GEAR HOUSING
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UPCOVER, GEAR HOUSING
UNITED STATES 4351590 AND UP
AUSTRALIA 8036050 AND UP
BELGIUM 9104814 AND UP
CANADA 7067848 AND UP -
7423-85964A1 COLLAR, GUIDE - PROPELLER SHAFT
PART OF PROPELLER SHAFT ASSEMBLYCOLLAR, GUIDE - PROPELLER SHAFT
PART OF PROPELLER SHAFT ASSEMBLY -
7548-33480A1 PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
- SHIPPED WITH ENGINE FROM FACTORY.PROPELLER ASSEMBLY (2 BLADE - ALUMINUM - 11" PITCH)
- SHIPPED WITH ENGINE FROM FACTORY. -
7548-34402A1 PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)PROPELLER ASSEMBLY (2 BLADE - BRONZE - 11" PITCH)
-
7548-86962A4 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 9" PITCH)
-
7548-37316A1 PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)PROPELLER ASSEMBLY (3 BLADE - ALUMINUM - 7" PITCH)
-
7548-65002A1 PROPELLER ASSEMBLY (2 BLADE - 11" PITCH) - NYLONPROPELLER ASSEMBLY (2 BLADE - 11" PITCH) - NYLON
-
--66607 HUB, THRUST (USE WITH NYLON PROP ONLY)HUB, THRUST (USE WITH NYLON PROP ONLY)
-
7611-64075A1 SPACER, SPLINE - PROPELLER SHAFTSPACER, SPLINE - PROPELLER SHAFT
-
7711-64075A1 NUT, PROPELLER RETAININGNUT, PROPELLER RETAINING
