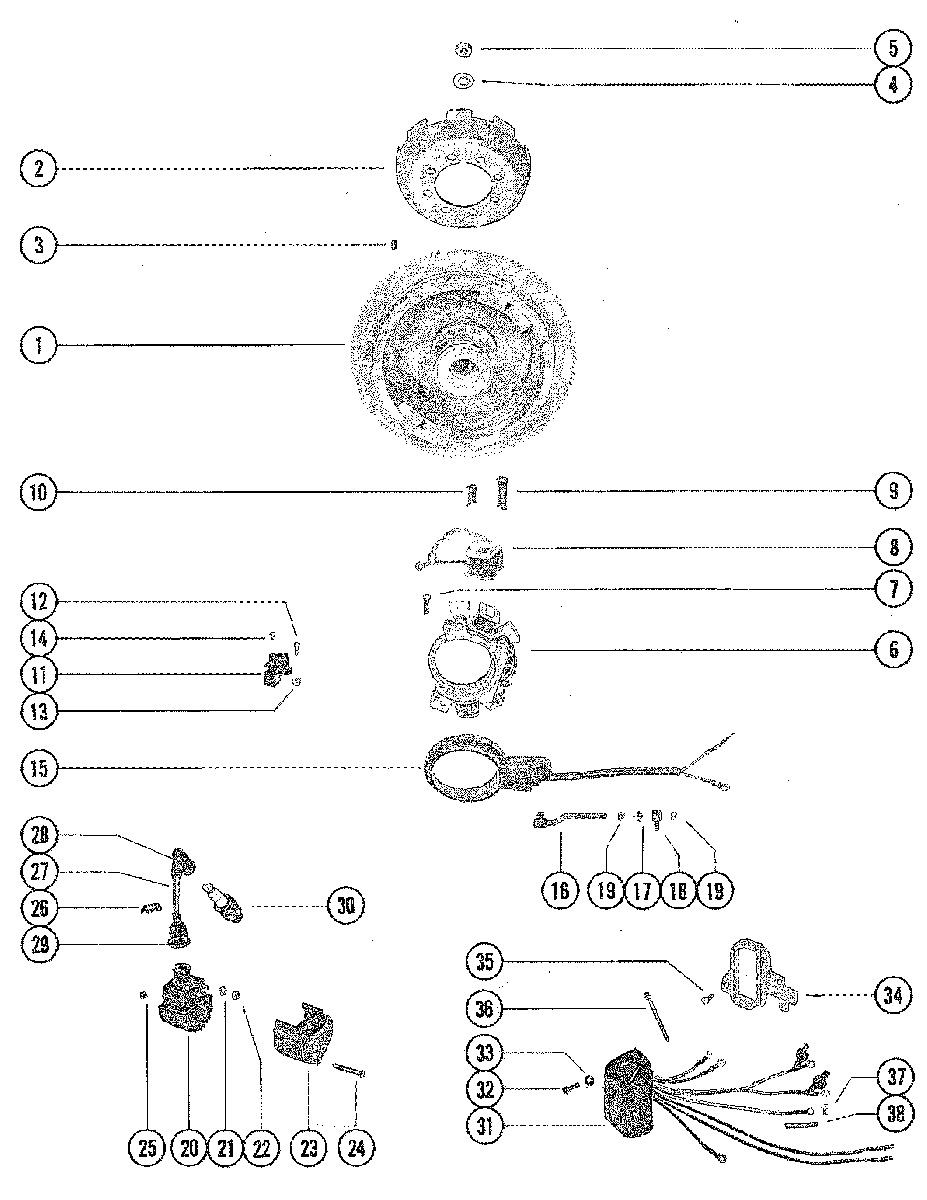

FLYWHEEL, IGNITION COIL, STATOR AND SWITCH BOX(GROUP NO. 15) для Mercury - 200 8006265 THRU 8045198
-
№АртикулНазвание
-
1244-6601A2 FLYWHEEL ASSEMBLY (MANUAL)FLYWHEEL ASSEMBLY (MANUAL)
-
1244-6118A4 FLYWHEEL ASSEMBLY (ELECTRIC)FLYWHEEL ASSEMBLY (ELECTRIC)
-
1244-6601A2 FLYWHEEL ASSEMBLY (BELGIUM)FLYWHEEL ASSEMBLY (BELGIUM)
-
250-65721 RATCHET ASSEMBLY, FLYWHEEL (MANUAL)RATCHET ASSEMBLY, FLYWHEEL (MANUAL)
-
328-20094 KEY, FLYWHEEL DRIVEKEY, FLYWHEEL DRIVE
-
412-65891 WASHER, FLYWHEEL NUTWASHER, FLYWHEEL NUT
-
511-22339 NUT, FLYWHEELNUT, FLYWHEEL
-
6339-5209A9 STATOR ASSEMBLYSTATOR ASSEMBLY
-
710-66707 SCREW, STATOR TO END CAP (7/8")SCREW, STATOR TO END CAP (7/8")
-
710-35400 SCREW, STATOR TO END CAP (3/8")SCREW, STATOR TO END CAP (3/8")
-
8339-6119A1 COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)COIL ASSEMBLY (5 1/2" AND 6 3/8" LEADS)
-
8339-6120A1 COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)COIL ASSEMBLY (1 3/4" AND 3 1/2" LEADS)
-
954-59538T CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1054-65927 CLIP, COIL RETAININGCLIP, COIL RETAINING
-
1186-85365 TERMINAL BLOCK, STATORTERMINAL BLOCK, STATOR
-
1210-38055 SCREW, TERMINAL BLOCK TO STATOR (5/8")SCREW, TERMINAL BLOCK TO STATOR (5/8")
-
1311-46438 NUT, TERMINAL BLOCK SCREWNUT, TERMINAL BLOCK SCREW
-
1410-22654 SCREW, LEADS TO TERMINAL BLOCK (3/8")SCREW, LEADS TO TERMINAL BLOCK (3/8")
-
1589312A3 HOUSING, TRIGGER
(Serial No. 4403787 and Up)HOUSING, TRIGGER
(Serial No. 4403787 and Up) -
1674454 SWIVEL, TRIGGER LINKSWIVEL, TRIGGER LINK
-
1712-30164 WASHER, THROTTLE LINKWASHER, THROTTLE LINK
-
1833973 SWIVEL, THROTTLE LINKSWIVEL, THROTTLE LINK
-
1911-859124 NUT, THROTTLE LINKNUT, THROTTLE LINK
-
20339-5288T2 COIL ASSEMBLY, IGNITION
(Serial No. 4403787 and Up)COIL ASSEMBLY, IGNITION
(Serial No. 4403787 and Up) -
2113-26996 LOCKWASHER, IGNITION COIL TERMINALLOCKWASHER, IGNITION COIL TERMINAL
-
2211-45076 NUT, IGNITION COIL TERMINALNUT, IGNITION COIL TERMINAL
-
2366355 COVER, IGNITION COILCOVER, IGNITION COIL
-
2410-72073 SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 3/4")SCREW, COIL COVER TO REAR SUPPORT BRACKET (3 3/4")
-
2511-20110 NUT, COIL COVER SCREWNUT, COIL COVER SCREW
-
2654676 RETAINER, HIGH TENSION LEADRETAINER, HIGH TENSION LEAD
-
2784-813715A1 LEAD ASSEMBLY, HIGH TENSIONLEAD ASSEMBLY, HIGH TENSION
-
2885-63709A1 PROTECTOR ASSEMBLY, SPARK PLUGPROTECTOR ASSEMBLY, SPARK PLUG
-
29332-2854T01 NIPPLE, IGNITION COILNIPPLE, IGNITION COIL
-
3033-97182Q SPARK PLUG (ACV#40FFK)
BELGIUM AND CANADA USE C-33-75939 SPARK PLUGSPARK PLUG (ACV#40FFK)
BELGIUM AND CANADA USE C-33-75939 SPARK PLUG -
31899883229 SWITCH BOX ASSEMBLYSWITCH BOX ASSEMBLY
-
3210-48409 SCREW, SWITCH BOX TO PLATE (5/8")SCREW, SWITCH BOX TO PLATE (5/8")
-
3312-56681 WASHER, SWITCH BOX SCREWWASHER, SWITCH BOX SCREW
-
3475899 PLATE, SWITCH BOXPLATE, SWITCH BOX
-
3510-98256 SCREW, SWITCH BOX PLATE ATTACHING (1/2")SCREW, SWITCH BOX PLATE ATTACHING (1/2")
-
3661990 STA-STRAPSTA-STRAP
-
3710-45218 SCREW, SWITCH BOX LEADS (3/8")SCREW, SWITCH BOX LEADS (3/8")
-
385790811 SLEEVE, SWITCH BOX LEADSSLEEVE, SWITCH BOX LEADS
