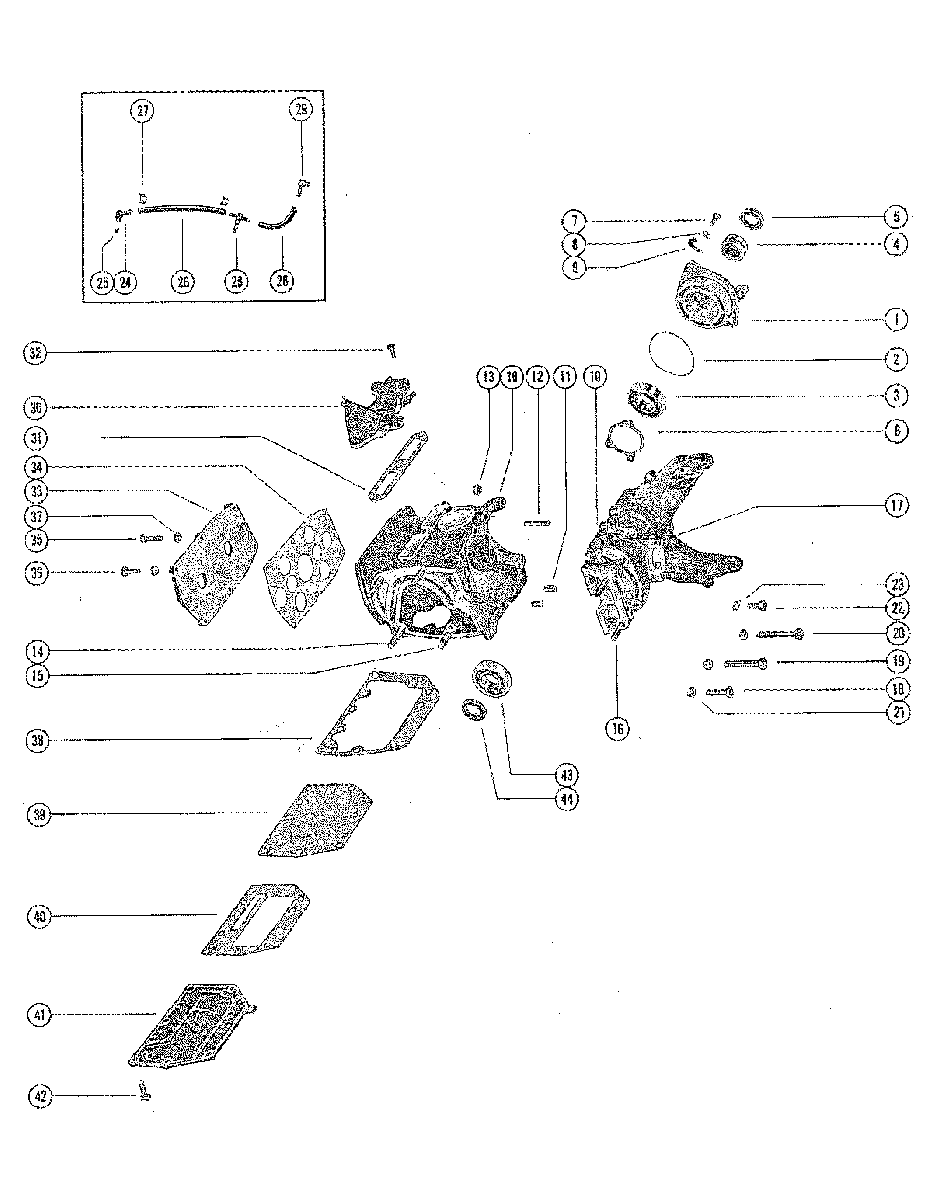

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 200 9016254 THRU 9157229

  • №
    Артикул
    Название
  • 1
    1155-5009A1 CRANKCASE TOP ASSEMBLY
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    CRANKCASE TOP ASSEMBLY
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    0 ₽
  • 1
    1163-6437A1 CRANKCASE TOP ASSEMBLY
    UNITED STATES 4403787 THRU 4580036
    AUSTRALIA 8039075 THRU 8043124
    BELGIUM 9122765 THRU 9137349
    CANADA 7077248 THRU 7089697
    CRANKCASE TOP ASSEMBLY
    UNITED STATES 4403787 THRU 4580036
    AUSTRALIA 8039075 THRU 8043124
    BELGIUM 9122765 THRU 9137349
    CANADA 7077248 THRU 7089697
    0 ₽
  • 1
    1163-6437A1 CRANKCASE TOP ASSEMBLY
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    CRANKCASE TOP ASSEMBLY
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    0 ₽
  • 2
    25-20081 "O" RING, CRANKCASE TOP
    "O" RING, CRANKCASE TOP
    220 ₽
  • 3
    30-63326T BEARING, BALL - CRANKCASE TOP (UPPER)
    BEARING, BALL - CRANKCASE TOP (UPPER)
    2 530 ₽
  • 4
    31-20594 BEARING, ROLLER - CRANKCASE TOP (UPPER)
    BEARING, ROLLER - CRANKCASE TOP (UPPER)
    0 ₽
  • 5
    26-66300 OIL SEAL, CRANKCASE TOP (UPPER)
    OIL SEAL, CRANKCASE TOP (UPPER)
    2 360 ₽
  • 6
    15-56191A1 SHIM, CRANKCASE TOP TO CYLINDER BLOCK (.002-3-5-10)
    SHIM, CRANKCASE TOP TO CYLINDER BLOCK (.002-3-5-10)
    0 ₽
  • 7
    10-24786 SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
    - SERIAL GROUP#14
    SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
    - SERIAL GROUP#14
    0 ₽
  • 8
    13-20202 LOCKWASHER, CRANKCASE TO TOP SCREW
    - SERIAL GROUP#14
    LOCKWASHER, CRANKCASE TO TOP SCREW
    - SERIAL GROUP#14
    0 ₽
  • 9
    54-61001 CLIP, UPPER END CAP SCREW
    - SERIAL GROUP#14
    CLIP, UPPER END CAP SCREW
    - SERIAL GROUP#14
    630 ₽
  • 7
    10-86750 SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
    - SERIAL GROUP#15
    SCREW, CRANKCASE TOP TO CYLINDER BLOCK (5/8")
    - SERIAL GROUP#15
    100 ₽
  • 8
    14-75670 TAB WASHER, CRANKCASE TOP SCREW
    - SERIAL GROUP#15
    TAB WASHER, CRANKCASE TOP SCREW
    - SERIAL GROUP#15
    0 ₽
  • 10
    848-6434A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 10
    848-6434A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4351590 THRU 4580036
    AUSTRALIA 8036050 THRU 8043124
    BELGIUM 9104814 THRU 9137349
    CANADA 7067848 THRU 7089697
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4351590 THRU 4580036
    AUSTRALIA 8036050 THRU 8043124
    BELGIUM 9104814 THRU 9137349
    CANADA 7067848 THRU 7089697
    0 ₽
  • 10
    848-6434A1 CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    0 ₽
  • 11
    17-23784 PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    PIN, DOWEL - CRANKCASE TO CYLINDER BLOCK
    290 ₽
  • 12
    16-65866 STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    STUD, CRANKCASE TO CYLINDER BLOCK (1 5/16")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    0 ₽
  • 13
    11-29250 NUT, CRANKCASE STUD
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    NUT, CRANKCASE STUD
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    180 ₽
  • 14
    16-65868 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    350 ₽
  • 14
    16-72743 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (2 1/8")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    0 ₽
  • 15
    16-68165 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING (1 5/8")
    0 ₽
  • 16
    16-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    STUD, CRANKCASE TO DRIVE SHAFT HOUSING (1 5/8")
    0 ₽
  • 17
    16-65865 STUD, CARBURETOR TO CRANKCASE (1 3/32")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    STUD, CARBURETOR TO CRANKCASE (1 3/32")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 17
    16-8M0034422 STUD, CARBURETOR TO CRANKCASE (1 3/32")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    STUD, CARBURETOR TO CRANKCASE (1 3/32")
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    2 320 ₽
  • 18
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 18
    10-26066 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4351590 THRU 4580036
    AUSTRALIA 8036050 THRU 8043124
    BELGIUM 9104814 THRU 9137349
    CANADA 7067848 THRU 7089697
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4351590 THRU 4580036
    AUSTRALIA 8036050 THRU 8043124
    BELGIUM 9104814 THRU 9137349
    CANADA 7067848 THRU 7089697
    0 ₽
  • 18
    10-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/8")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/8")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    140 ₽
  • 19
    10-26065 SCREW, CRANKCASE TO CYLINDER BLOCK (1"0)
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (1"0)
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 19
    10-21449 SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (2")
    UNITED STATES 4403786 AND BELOW
    AUSTRALIA 8039074 AND BELOW
    BELGIUM 9122764 AND BELOW
    CANADA 7077247 AND BELOW
    0 ₽
  • 19
    10-75700 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/8")
    UNITED STATES 4403787 THRU 4580036
    AUSTRALIA 8039075 THRU 8043124
    BELGIUM 9122765 THRU 9137349
    CANADA 7077248 THRU 7089697
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/8")
    UNITED STATES 4403787 THRU 4580036
    AUSTRALIA 8039075 THRU 8043124
    BELGIUM 9122765 THRU 9137349
    CANADA 7077248 THRU 7089697
    0 ₽
  • 19
    10-35385 SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    SCREW, CRANKCASE TO CYLINDER BLOCK (1 3/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    200 ₽
  • 20
    10-26132 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/2")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    0 ₽
  • 20
    10-67450 SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    SCREW, CRANKCASE TO CYLINDER BLOCK (2 1/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    260 ₽
  • 21
    11-29250 NUT, CRANKCASE SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    NUT, CRANKCASE SCREW
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    180 ₽
  • 22
    10-98260 SCREW, LOCK - CENTER MAIN BEARING (5/8")
    SCREW, LOCK - CENTER MAIN BEARING (5/8")
    100 ₽
  • 23
    14-20091 TAB WASHER, CENTER MAIN BEARING LOCK SCREW
    TAB WASHER, CENTER MAIN BEARING LOCK SCREW
    140 ₽
  • 24
    22-61295A5 ELBOW ASSEMBLY, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    ELBOW ASSEMBLY, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 3755884 AND BELOW
    AUSTRALIA 8013704 AND BELOW
    BELGIUM 9035128 AND BELOW
    CANADA 7024647 AND BELOW
    0 ₽
  • 25
    21-42657A3 CHECK VALVE ASSEMBLY
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CHECK VALVE ASSEMBLY
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    460 ₽
  • 24
    21-64871A1 ELBOW ASSEMBLY, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 3755885 AND UP
    AUSTRALIA 8013705 AND UP
    BELGIUM 9035129 AND UP
    CANADA 7024648 AND UP
    ELBOW ASSEMBLY, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 3755885 AND UP
    AUSTRALIA 8013705 AND UP
    BELGIUM 9035129 AND UP
    CANADA 7024648 AND UP
    0 ₽
  • 26
    32-892024122 HOSE, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    HOSE, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    4 230 ₽
  • 27
    54-56223 CLAMP, BLEED HOSE ATTACHING
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    CLAMP, BLEED HOSE ATTACHING
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    0 ₽
  • 28
    22-61559 TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    0 ₽
  • 28
    22-78917 TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    TEE, INJECTION
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    0 ₽
  • 29
    22-78915 ELBOW, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    ELBOW, BLEED DRAIN
    PART OF CYLINDER BLOCK AND CRANKCASE ASSEMBLY
    0 ₽
  • 30
    77362 COVER, TRANSFER PORT
    COVER, TRANSFER PORT
    0 ₽
  • 31
    27-279361 GASKET, TRANSFER PORT COVER
    GASKET, TRANSFER PORT COVER
    260 ₽
  • 32
    10-49668 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (3/4")
    100 ₽
  • 32
    10-24646 SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    SCREW, TRANSFER PORT COVER TO CYLINDER BLOCK (5/8")
    0 ₽
  • 33
    1022-3567 COVER, CYLINDER BLOCK
    COVER, CYLINDER BLOCK
    0 ₽
  • 34
    27-78410 GASKET, CYLINDER BLOCK COVER
    GASKET, CYLINDER BLOCK COVER
    570 ₽
  • 35
    10-24644 SCREW, COVER TO CYLINDER BLOCK (1 3/8")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    SCREW, COVER TO CYLINDER BLOCK (1 3/8")
    UNITED STATES 4580036 AND BELOW
    AUSTRALIA 8043124 AND BELOW
    BELGIUM 9137349 AND BELOW
    CANADA 7089697 AND BELOW
    140 ₽
  • 36
    10-21091 SCREW, COVER TO CYLINDER BLOCK (1 1/8")
    SCREW, COVER TO CYLINDER BLOCK (1 1/8")
    0 ₽
  • 37
    11-20184 NUT, CYLINDER BLOCK COVER SCREW
    NUT, CYLINDER BLOCK COVER SCREW
    120 ₽
  • 35
    10-76596 SCREW, COVER TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    SCREW, COVER TO CYLINDER BLOCK (1 1/4")
    UNITED STATES 4580037 AND UP
    AUSTRALIA 8043125 AND UP
    BELGIUM 9137350 AND UP
    CANADA 7089698 AND UP
    140 ₽
  • 36
    10-76630 SCREW, COVER TO CYLINDER BLOCK (1")
    SCREW, COVER TO CYLINDER BLOCK (1")
    170 ₽
  • 38
    27-78411 GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    GASKET, CYLINDER BLOCK TO BAFFLE PLATE
    290 ₽
  • 39
    39308 PLATE, BAFFLE - EXHAUST MANIFOLD
    PLATE, BAFFLE - EXHAUST MANIFOLD
    0 ₽
  • 40
    27-78409 GASKET, BAFFLE PLATE TO MANIFOLD COVER
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    GASKET, BAFFLE PLATE TO MANIFOLD COVER
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    610 ₽
  • 41
    88797 COVER, EXHAUST MANIFOLD
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    COVER, EXHAUST MANIFOLD
    UNITED STATES 4351589 AND BELOW
    AUSTRALIA 8036049 AND BELOW
    BELGIUM 9104813 AND BELOW
    CANADA 7067847 AND BELOW
    0 ₽
  • 41
    88797 COVER, EXHAUST MANIFOLD
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    COVER, EXHAUST MANIFOLD
    UNITED STATES 4351590 AND UP
    AUSTRALIA 8036050 AND UP
    BELGIUM 9104814 AND UP
    CANADA 7067848 AND UP
    0 ₽
  • 42
    10-28782 SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
    SCREW, MANIFOLD COVER TO CYLINDER BLOCK (7/8")
    220 ₽
  • 43
    30-63326T BEARING, BALL - CRANKCASE (LOWER)
    BEARING, BALL - CRANKCASE (LOWER)
    2 530 ₽
  • 44
    26-66302 OIL SEAL, CRANKCASE (LOWER)
    OIL SEAL, CRANKCASE (LOWER)
    1 550 ₽

Все узлы модели:
