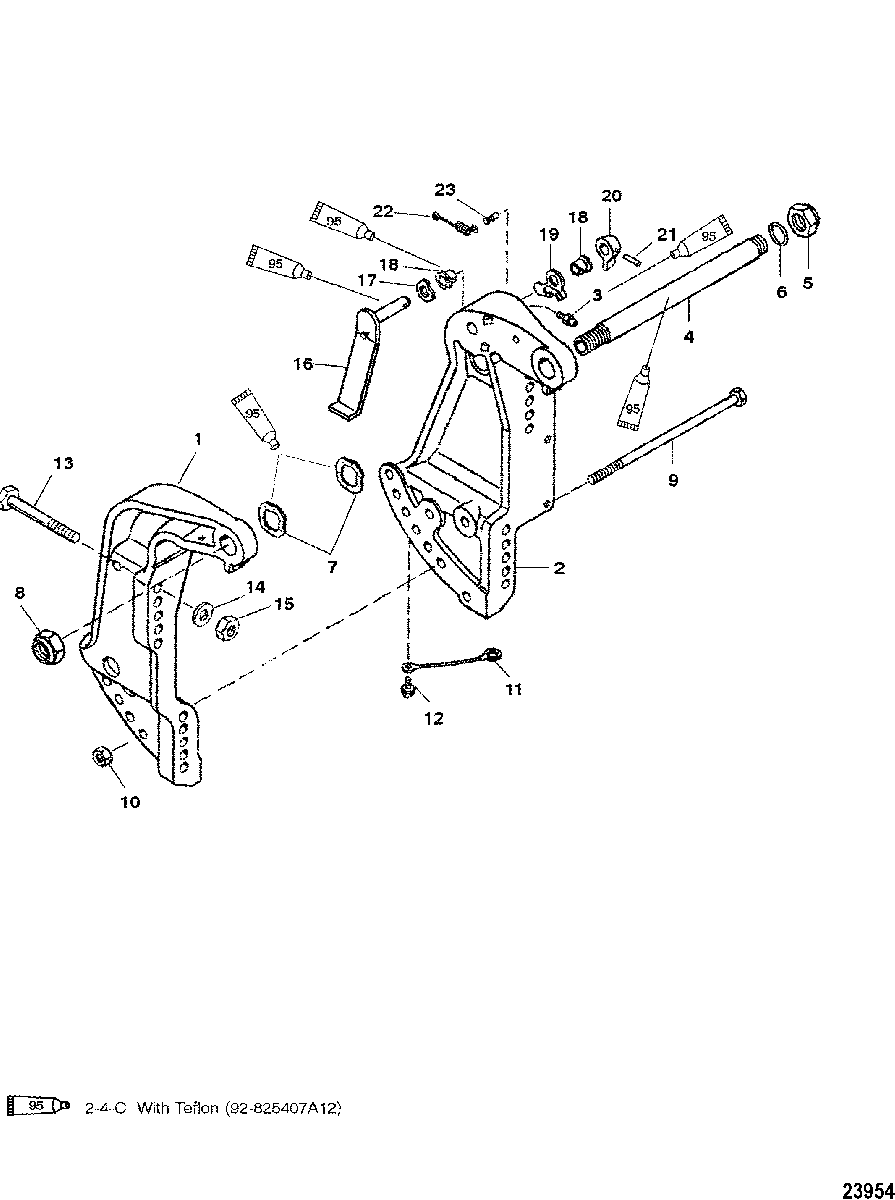

TRANSOM BRACKETS(S/N-0G589999 AND BELOW) для Mercury - 225 (3.0L CARB) 0D280813 THRU 0G760299
-
№АртикулНазвание
-
13401-8718F7 BRACKET, Transom
(STBD-BLACK)BRACKET, Transom
(STBD-BLACK) -
13401-8718F8 BRACKET, Transom
(STBD-GRAY)BRACKET, Transom
(STBD-GRAY) -
13401-8718F11 BRACKET, Transom
(STBD-WHITE)BRACKET, Transom
(STBD-WHITE) -
23400-8716A8 BRACKET ASSEMBLY, Transom
(PORT-BLACK)BRACKET ASSEMBLY, Transom
(PORT-BLACK) -
23400-8716A9 BRACKET ASSEMBLY, Transom
(PORT-GRAY)BRACKET ASSEMBLY, Transom
(PORT-GRAY) -
23400-8716A11 BRACKET ASSEMBLY, Transom
(PORT-WHITE)BRACKET ASSEMBLY, Transom
(PORT-WHITE) -
322-98727 FITTING, Grease (PORT)FITTING, Grease (PORT)
-
4826125A1 TILT TUBETILT TUBE
-
511-826135 NUT, (1.00-14) Brass/Nickel PlateNUT, (1.00-14) Brass/Nickel Plate
-
625-45711 O-RING, (.612 x .103)O-RING, (.612 x .103)
-
713-88750 WASHERWASHER
-
811-826164 NUT, (.875-14)NUT, (.875-14)
-
910-96930A1 BOLT ASSEMBLYBOLT ASSEMBLY
-
1011-23161 NUT, (.375-24)NUT, (.375-24)
-
1188238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
1210-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1310-677551 SCREW, (.500-20 x 4.500)SCREW, (.500-20 x 4.500)
-
1412-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
1511-91962 NUT, (.500-20)NUT, (.500-20)
-
168M0115104 LEVER ASSEMBLYLEVER ASSEMBLY
-
1713-99611 WAVE WASHERWAVE WASHER
-
1823-65830 NYLINERNYLINER
-
19814207 STOPSTOP
-
2099633 KNOBKNOB
-
2117-99615 PIN, GroovePIN, Groove
-
2224-99622 SPRINGSPRING
-
2317-99604 PIN, GroovePIN, Groove
