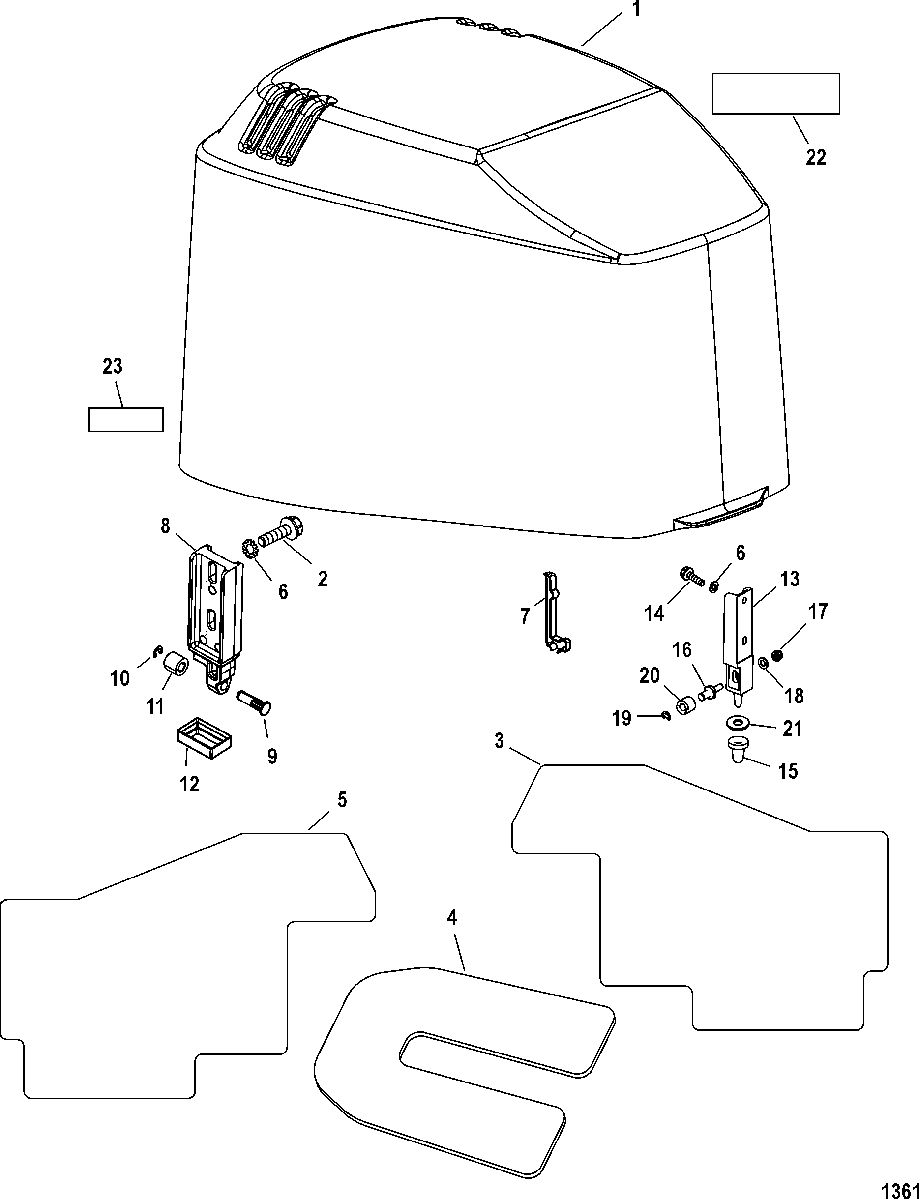

Top Cowl для Mercury - 225 (3.0L EFI) SEAPRO 0T801000 THRU 1B417701
-
№АртикулНазвание
-
14001-880012T1 TOP COWL ASSEMBLY
(Black)TOP COWL ASSEMBLY
(Black) -
14001-880012T36 TOP COWL ASSEMBLY
(Silver)TOP COWL ASSEMBLY
(Silver) -
210-82130030 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3880014A02 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
5NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
613-93702 WASHER, (.250 External Star)WASHER, (.250 External Star)
-
7826639T COVERCOVER
-
8850682A06 HOOK ASSEMBLY, Rear LatchHOOK ASSEMBLY, Rear Latch
-
9NSS NOT SOLD SEPARATE, PinNOT SOLD SEPARATE, Pin
-
1053-8237951 RING, RetainingRING, Retaining
-
11815263 ROLLERROLLER
-
1225-850685T02 GROMMET
SN# 0T962422 & BelowGROMMET
SN# 0T962422 & Below -
1225-850685T02 GROMMET
SN# 0T962423 & UpGROMMET
SN# 0T962423 & Up -
138M0036792 BRACKET, FrontBRACKET, Front
-
1410-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
15815477 BUMPER, LatchBUMPER, Latch
-
168155381 PIN, RollPIN, Roll
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1812-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
2112-87161 WASHERWASHER
-
22NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-37-8M0114986 DECAL SET
(Mercury 200 EFI-3L)(2004/2005)DECAL SET
(Mercury 200 EFI-3L)(2004/2005) -
-37-8M0114986 DECAL SET
(Mercury 200 EFI 3L)(2006)DECAL SET
(Mercury 200 EFI 3L)(2006) -
-37-8M0114987 DECAL SET
(3L Seapro)DECAL SET
(3L Seapro) -
-37-8M0114986 DECAL SET
(Mercury 225 EFI-Long)(2004/2005)DECAL SET
(Mercury 225 EFI-Long)(2004/2005) -
-37-8M0114986 DECAL SET
(Mercury 225 EFI-Long)(2006)DECAL SET
(Mercury 225 EFI-Long)(2006) -
-37-8M0114987 DECAL SET
(Mercury 225 EFI X-Long/XX-Long)(Blue)(2004/2005)DECAL SET
(Mercury 225 EFI X-Long/XX-Long)(Blue)(2004/2005) -
-37-8M0114986 DECAL SET
(Mercury 225 EFI X-Long/XX-Long)(2006)DECAL SET
(Mercury 225 EFI X-Long/XX-Long)(2006) -
-37-8M0114987 DECAL SET
(Mercury 250 Long)(Blue)(2004/2005)DECAL SET
(Mercury 250 Long)(Blue)(2004/2005) -
-37-809167A06 DECAL SET
(Mercury 250 Long)(2006)DECAL SET
(Mercury 250 Long)(2006) -
-37-8M0114986 DECAL SET
(Mercury 250 X-Long)(Red)(2004/2005)DECAL SET
(Mercury 250 X-Long)(Red)(2004/2005) -
-37-8M0069508 DECAL SET
(Mercury 250 X-Long)(2006)DECAL SET
(Mercury 250 X-Long)(2006) -
-37-8M0065134 DECAL SET
(3L Marathon)DECAL SET
(3L Marathon) -
-37-827438A03 DECAL SET
(Mariner 225 Long)DECAL SET
(Mariner 225 Long) -
-37-883284A03 DECAL SET
(Mariner 225 X-Long)DECAL SET
(Mariner 225 X-Long) -
-37-809168A03 DECAL SET
(Mariner 250)DECAL SET
(Mariner 250) -
-37-8M0065092 DECAL SET
(Tracker 225)DECAL SET
(Tracker 225)
