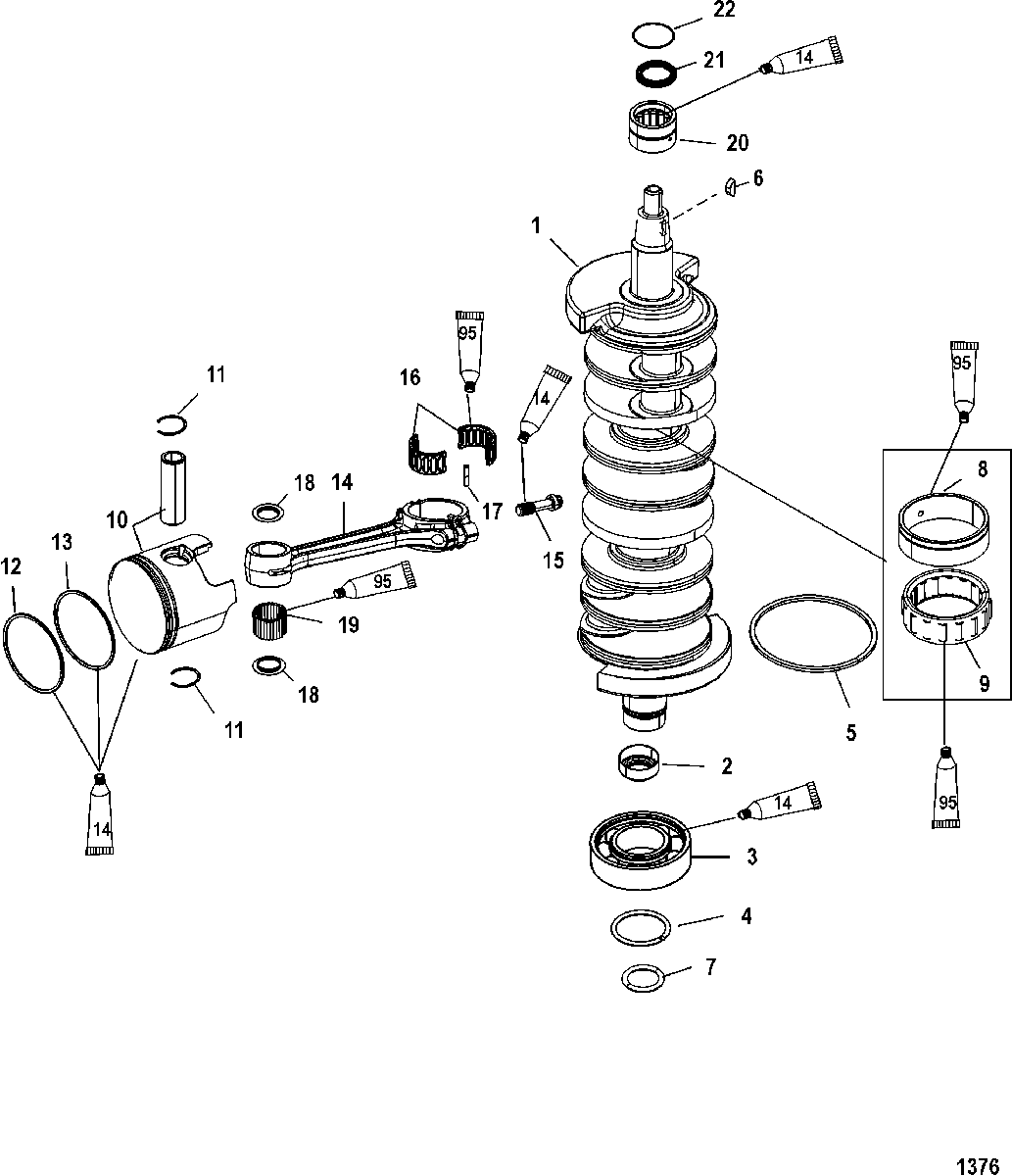

CRANKSHAFT, PISTONS AND CONNECTING RODS для Mercury - 225 (3.0L EFI) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
1482-9784A11 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
2NSS NOT SOLD SEPARATE, Wear SleeveNOT SOLD SEPARATE, Wear Sleeve
-
330-67923T BEARING, Ball (LOWER)BEARING, Ball (LOWER)
-
453-67446 RINGRING
-
539-843198T01 RINGRING
-
628-91800 KEY, WoodruffKEY, Woodruff
-
725-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
831-88270A02 RACE ASSEMBLYRACE ASSEMBLY
-
9NSS NOT SOLD SEPARATE, Needle Roller BearingNOT SOLD SEPARATE, Needle Roller Bearing
-
10700-858295T14 PISTON
(STBD-STANDARD)PISTON
(STBD-STANDARD) -
10700-858294T14 PISTON
(PORT-STANDARD)PISTON
(PORT-STANDARD) -
10700-878572A2 PISTON ASSEMBLY
(STARBOARD - .015 O/S)PISTON ASSEMBLY
(STARBOARD - .015 O/S) -
10700-878571A2 PISTON ASSEMBLY
(PORT - .015 O/S)PISTON ASSEMBLY
(PORT - .015 O/S) -
10700-878574A2 PISTON ASSEMBLY
(STARBOARD - .030 O/S)PISTON ASSEMBLY
(STARBOARD - .030 O/S) -
10700-878573A2 PISTON ASSEMBLY
(PORT - .030 O/S)PISTON ASSEMBLY
(PORT - .030 O/S) -
1140-841202 RINGRING
-
1239-858772A12 RING SET, Piston
(STANDARD)RING SET, Piston
(STANDARD) -
1239-875252A12 RING SET, Piston
(.015 O/S)RING SET, Piston
(.015 O/S) -
1239-875257A12 RING SET, Piston
(.030 O/S)RING SET, Piston
(.030 O/S) -
13NSS NOT SOLD SEPARATE, Piston Ring (LOWER)NOT SOLD SEPARATE, Piston Ring (LOWER)
-
14600-8M0125869 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1510-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1631-844338A01 BEARING/CAGE KITBEARING/CAGE KIT
-
17NSS NOT SOLD SEPARATE, Needle Roller BearingNOT SOLD SEPARATE, Needle Roller Bearing
-
1812-88263 THRUST WASHERTHRUST WASHER
-
1929-88258001 NEEDLE, Roller BearingNEEDLE, Roller Bearing
-
2031-816773A2 BEARING ASSEMBLY (UPPER)BEARING ASSEMBLY (UPPER)
-
2126-859093 SEALSEAL
-
2225-823683 O-RING, (1.989 x .070)O-RING, (1.989 x .070)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-883892A07 POWERHEAD ASSEMBLY
(225) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(225) SN# 0T598999 & Below -
-883892A07 POWERHEAD ASSEMBLY
(225) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(225) SN# 0T599000 & Up -
-883893A07 POWERHEAD ASSEMBLY
(3L Work) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(3L Work) SN# 0T598999 & Below -
-883893A07 POWERHEAD ASSEMBLY
(3L Work) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(3L Work) SN# 0T599000 & Up -
-883894A07 POWERHEAD ASSEMBLY
(250) SN# 0T598999 & BelowPOWERHEAD ASSEMBLY
(250) SN# 0T598999 & Below -
-883894A07 POWERHEAD ASSEMBLY
(250) SN# 0T599000 & UpPOWERHEAD ASSEMBLY
(250) SN# 0T599000 & Up -
-891823A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
