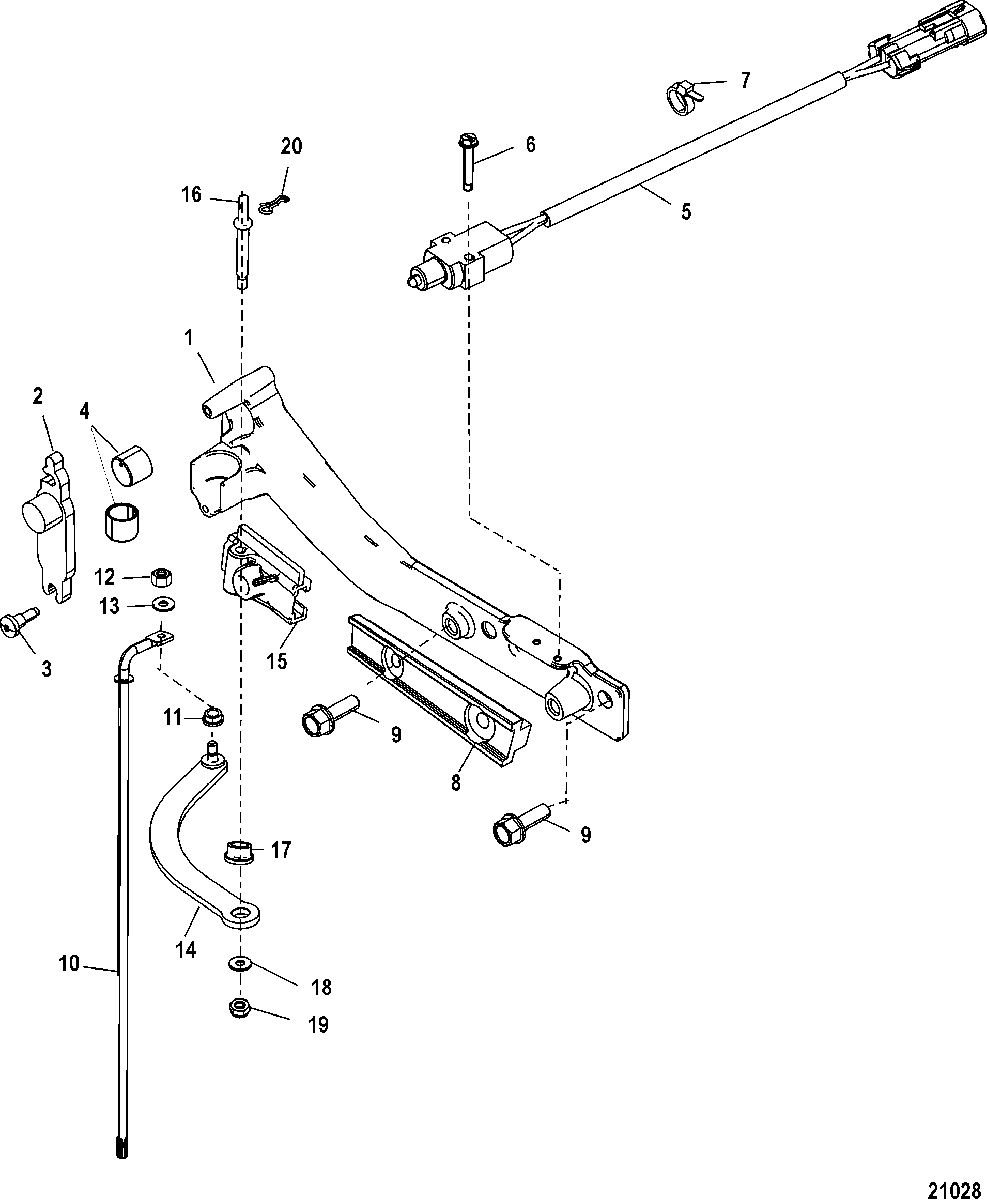

Shift Linkage для Mercury - 225 (3.0L EFI) 1B504989 & Up
-
№АртикулНазвание
-
1899080T01 BRACKET ASSEMBLY, AnchorBRACKET ASSEMBLY, Anchor
-
2824016 LATCHLATCH
-
310-42975 DRIVE SCREWDRIVE SCREW
-
4824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
587-8M0052939 SWITCHSWITCH
-
610-82470620 SCREW, (M3.5 x 20)SCREW, (M3.5 x 20)
-
754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
88M0033943 SHIFT RAILSHIFT RAIL
-
98M0006893 SCREW, (M8 x 25 MM)SCREW, (M8 x 25 MM)
-
108M0026171 SHIFT SHAFT, Upper
LongSHIFT SHAFT, Upper
Long -
108M0026172 SHIFT SHAFT, Upper
X LongSHIFT SHAFT, Upper
X Long -
108M0026173 SHIFT SHAFT, Upper
XX LongSHIFT SHAFT, Upper
XX Long -
1123-892263 BUSHINGBUSHING
-
1211-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1312-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
14899083 LINK, ShiftLINK, Shift
-
158M0085621 SLIDE, ShiftSLIDE, Shift
-
168M0000793 PIN, Shift LinkPIN, Shift Link
-
1723-896551 BUSHINGBUSHING
-
1812-69056 WASHER, (.255 x .620 x .030) Stainless SteelWASHER, (.255 x .620 x .030) Stainless Steel
-
1911-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
208M0001157 PIN, Bow Tie ClipPIN, Bow Tie Clip
