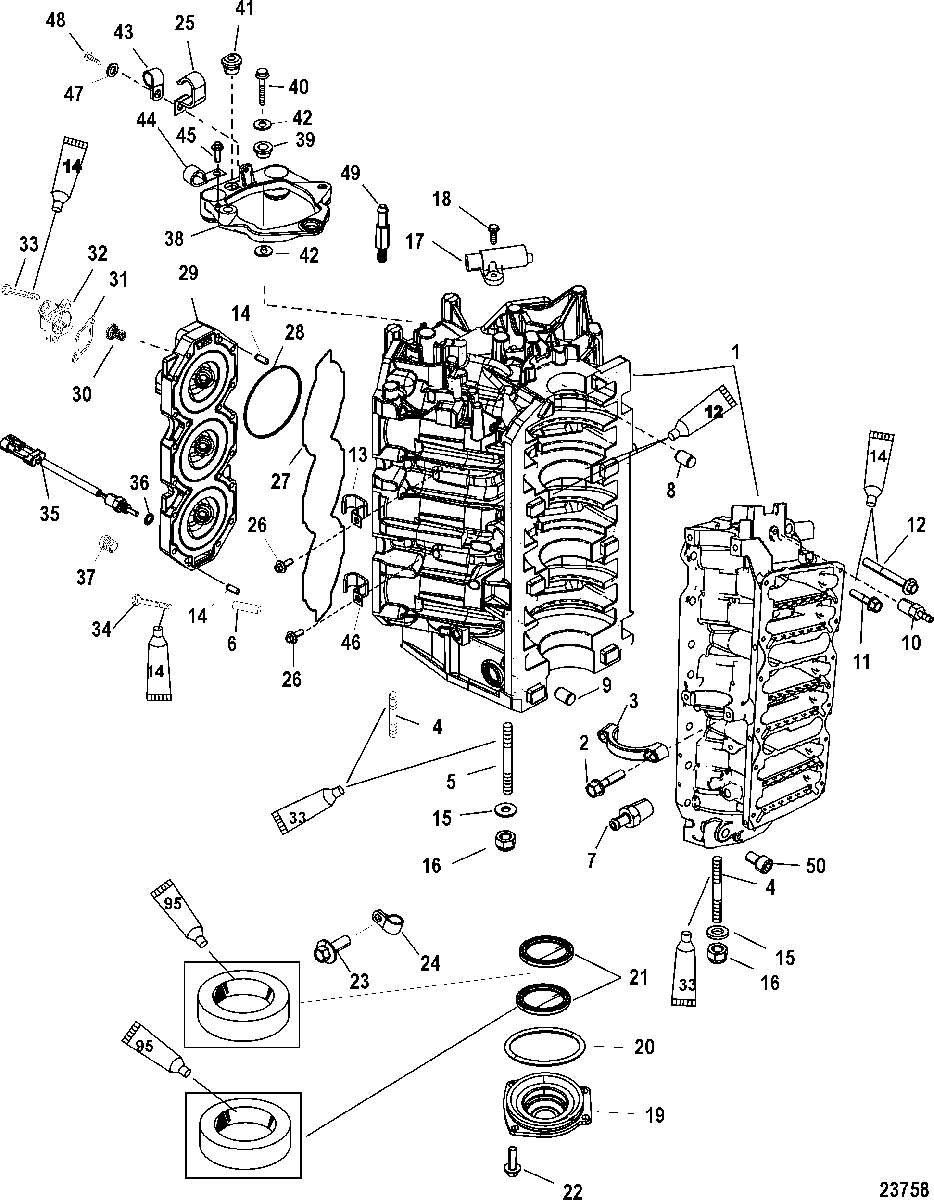

Cylinder Block and End Cap для Mercury - 225 (DFI) 3.0L 1B417702 THRU 1B504988
-
№АртикулНазвание
-
1885-899162A05 CYLINDER BLOCK ASSEMBLY
(200)CYLINDER BLOCK ASSEMBLY
(200) -
1885-899162A06 CYLINDER BLOCK ASSEMBLY
(225)CYLINDER BLOCK ASSEMBLY
(225) -
210-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
38M0111325 BRACKETBRACKET
-
416-903509 STUD, (M10 x 1.5 x 64)STUD, (M10 x 1.5 x 64)
-
516-8154431 STUD, (M10 x 1.5 x 155)STUD, (M10 x 1.5 x 155)
-
68248577 DEFLECTORDEFLECTOR
-
721-8781051 CHECK VALVECHECK VALVE
-
817-8M0036405 PINPIN
-
917-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
1022-8245021 CONNECTORCONNECTOR
-
1110-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1210-82446180 SCREW, (M10 x 80)SCREW, (M10 x 80)
-
1354-65292 J CLIPJ CLIP
-
1417-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
1512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
1611-4013610 NUT, (M10) Stainless SteelNUT, (M10) Stainless Steel
-
178M0082988 SENSORSENSOR
-
1810-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
191171-9787A4 END CAP ASSEMBLYEND CAP ASSEMBLY
-
2025-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
2126-8308981 SEALSEAL
-
2210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
2310-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
2454-858902 CLAMPCLAMP
-
2554-65292 J CLIPJ CLIP
-
2610-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
27818574 SEALSEAL
-
28884391 SEALSEAL
-
29900-858485T07 CYLINDER HEAD, Starboard
(Starboard)CYLINDER HEAD, Starboard
(Starboard) -
29900-858483T07 CYLINDER HEAD, Port
(PortCYLINDER HEAD, Port
(Port -
308M0057307 THERMOSTAT, 54 Degree C/130 Degree FTHERMOSTAT, 54 Degree C/130 Degree F
-
3127-8503181 GASKETGASKET
-
32887601002 COVER, Thermostat
(Port)COVER, Thermostat
(Port) -
32887602002 COVER, Thermostat
(Starboard)COVER, Thermostat
(Starboard) -
3310-82130025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
3410-8M0045380 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
35885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
3625-896699 O-RING, (1.78 mm x .08 mm)O-RING, (1.78 mm x .08 mm)
-
3722-328022 PLUG, Pipe (.125-27) BrassPLUG, Pipe (.125-27) Brass
-
38857186T02 PLATE ASSEMBLYPLATE ASSEMBLY
-
3923-855729 MOUNTMOUNT
-
4010-82130145 SCREW, (M10 x 45)SCREW, (M10 x 45)
-
4125-19565002 GROMMETGROMMET
-
4212-855725 WASHERWASHER
-
4354-858424 CLAMPCLAMP
-
4454-858951 J CLIPJ CLIP
-
4510-82130012 SCREW, (M6 x 12)SCREW, (M6 x 12)
-
4654-8M0005663 J CLIPJ CLIP
-
4712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
4810-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4917-8405101 PINPIN
-
5010-82494810 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
-27-832934A00 GASKET SET, PowerheadGASKET SET, Powerhead
-
-854198A07 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-877869A07 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225)
