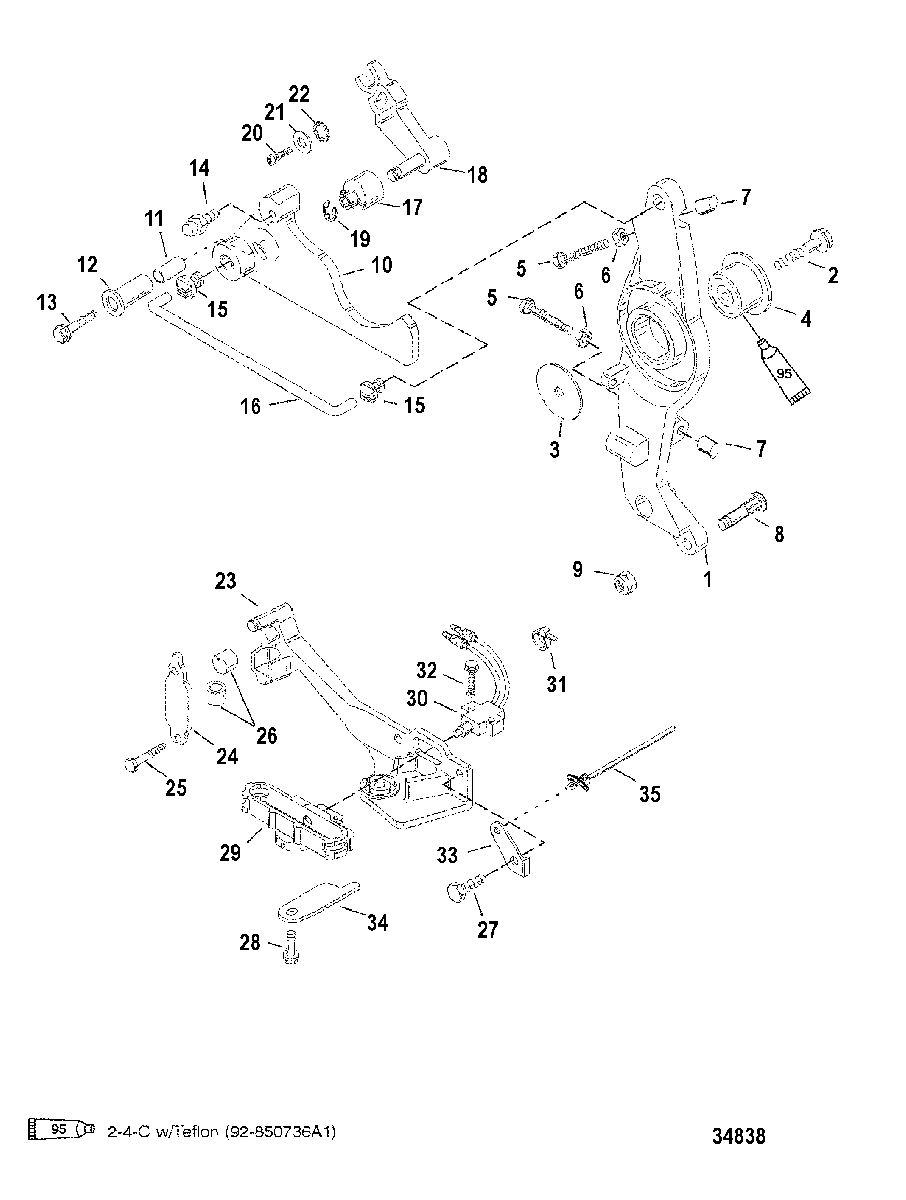

Throttle Linkage для Mercury - 225 (DFI) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
18M0040987 LEVER, Throttle ControlLEVER, Throttle Control
-
210-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
312-36042 WASHERWASHER
-
423-821113 BUSHINGBUSHING
-
510-40124 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
611-400212 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
742942 CAPCAP
-
842927 INSERTINSERT
-
911-401386 NUT, (M6)NUT, (M6)
-
10850382A3 CAMCAM
-
1130-856896 BEARINGBEARING
-
1223-856895 BUSHINGBUSHING
-
1310-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
148235694 BALL, ThreadedBALL, Threaded
-
1523-932481 BUSHINGBUSHING
-
168524353 LINKLINK
-
1767748 ROLLERROLLER
-
18850286A03 ROLLER, ThrottleROLLER, Throttle
-
1953-8237951 RING, RetainingRING, Retaining
-
2010-40056107 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
2112-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
2213-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
23824010T05 BRACKETBRACKET
-
24824016 LATCHLATCH
-
2510-42975 DRIVE SCREWDRIVE SCREW
-
26824015 CUP, Barrel RetainerCUP, Barrel Retainer
-
2710-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
2810-82155025 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
298M0039052 GUIDE, RollerGUIDE, Roller
-
3087-8M0052931 SWITCHSWITCH
-
3154-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
3210-82470620 SCREW, (M3.5 x 20)SCREW, (M3.5 x 20)
-
338568331 BRACKETBRACKET
-
34856879 BRACKETBRACKET
-
3554-856840 TIE STRAP, (5.20 Inches)TIE STRAP, (5.20 Inches)
