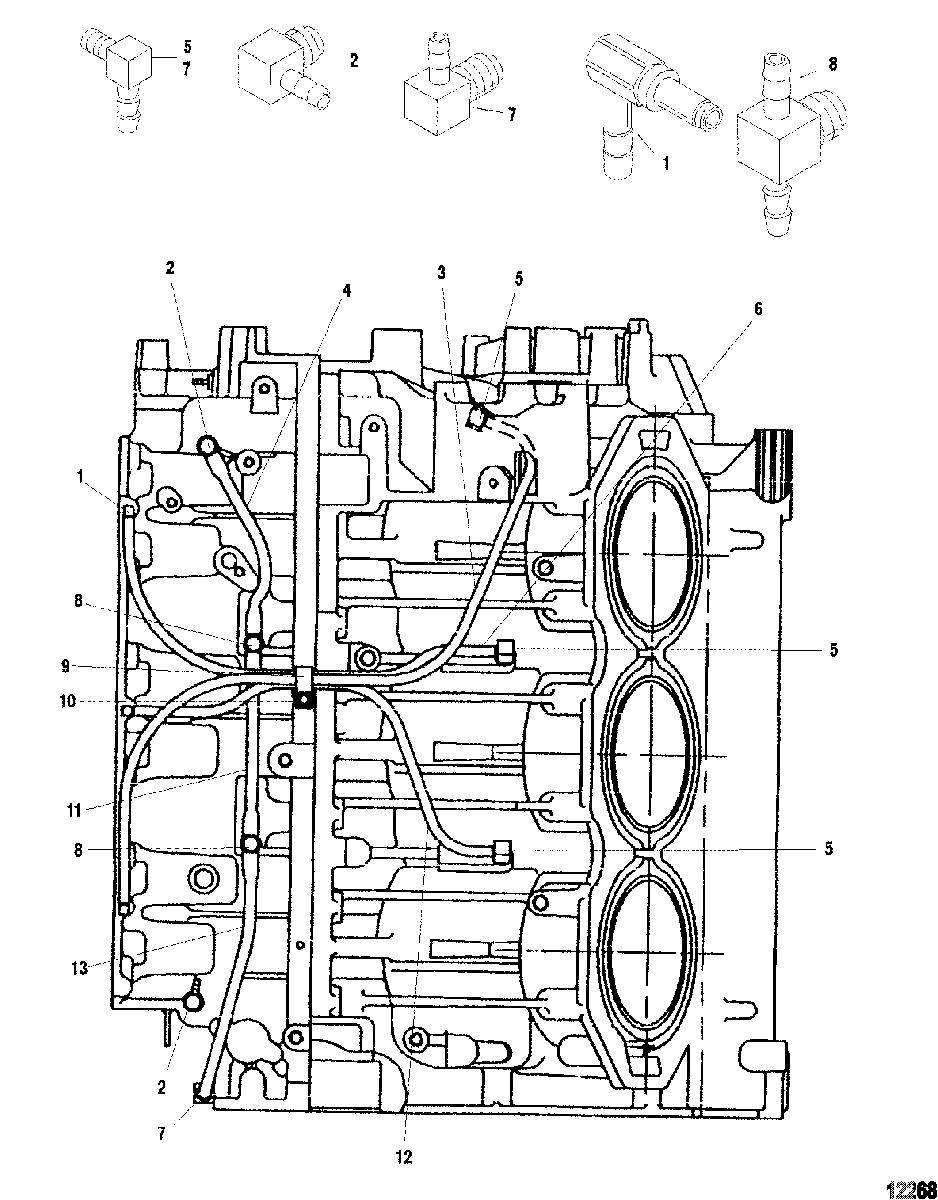

Port Center Main Oiling System для Mercury - 225 (DFI) 0G960500 THRU 0T178499
-
№АртикулНазвание
-
122-151333 ELBOWELBOW
-
222-887801 FITTING, Elbow 90 Degree (.0625-27)FITTING, Elbow 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 20.50 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 20.50 Inch Length)
-
432-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 5.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 5.00 Inch Length)
-
521-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
632-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 13.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 13.00 Inch Length)
-
721-8282182 CHECK VALVECHECK VALVE
-
821-8582362 CHECK VALVECHECK VALVE
-
954-23567 CLIPCLIP
-
1010-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1132-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 4.75 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 4.75 Inch Length)
-
1232-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 11.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 11.00 Inch Length)
-
1332-8M0054152 TUBING, (36.00 Inches Bulk) (Cut to 9.00 Inch Length)TUBING, (36.00 Inches Bulk) (Cut to 9.00 Inch Length)
-
-854198R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200) -
-854199R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Have No Casting Number) -
-877869R00 POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)POWERHEAD ASSEMBLY
(225) (Cylinder Heads Casting Number 900-858485C1/C2 Or 900-858483C1/C2)
