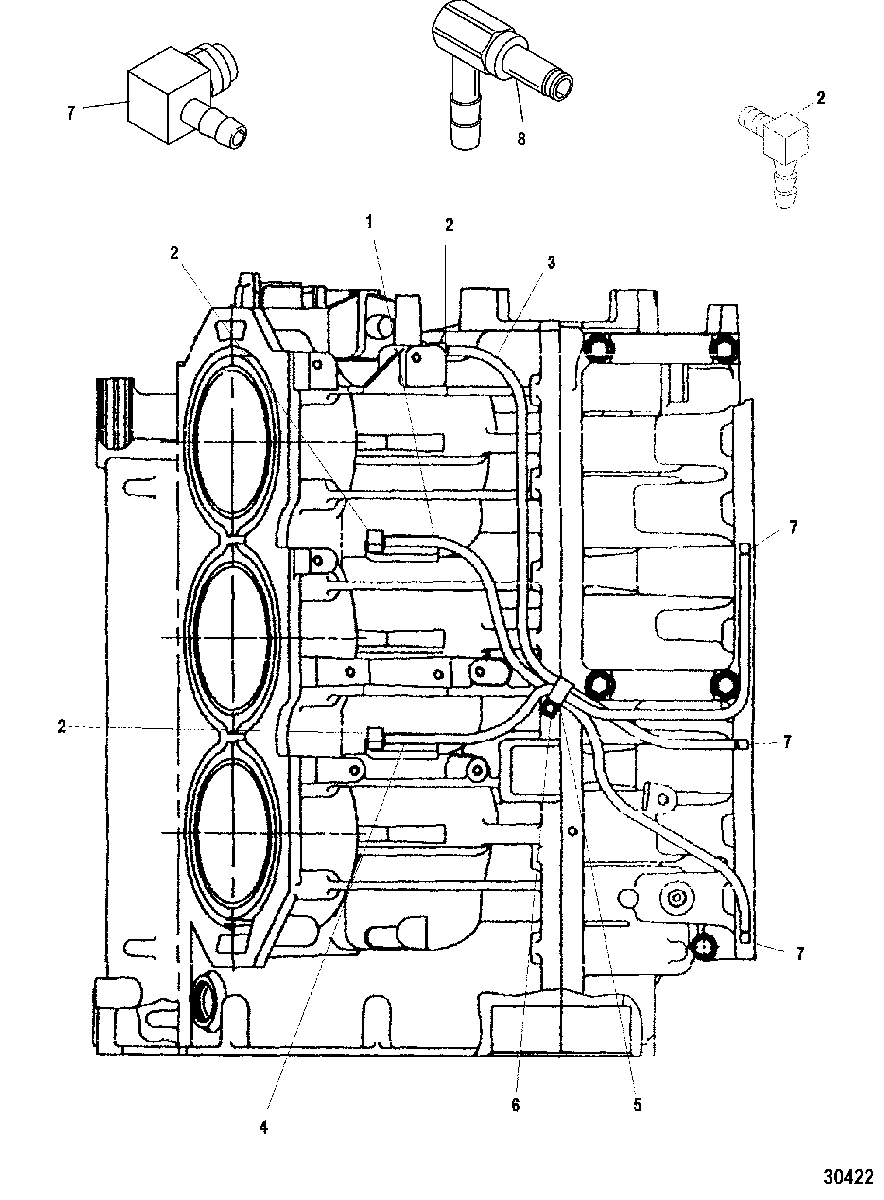

STARBOARD CENTER MAIN OILING SYSTEM для Mercury - 225 (DFI) 0T178500 THRU 0T598999
-
№АртикулНазвание
-
132-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 15-1/2 IN.TUBING, (36.00 Inches Bulk), Cut to 15-1/2 IN.
-
221-8592352 CHECK VALVE, 90 Degree (.0625-27)CHECK VALVE, 90 Degree (.0625-27)
-
332-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 16-1/2 IN.TUBING, (36.00 Inches Bulk), Cut to 16-1/2 IN.
-
432-8M0054152 TUBING, (36.00 Inches Bulk), Cut to 15 IN.TUBING, (36.00 Inches Bulk), Cut to 15 IN.
-
554-23567 CLIPCLIP
-
610-48408 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
722-887801 FITTING, Elbow 90 Degree (.0625-27)
SN# 0T409000 & UpFITTING, Elbow 90 Degree (.0625-27)
SN# 0T409000 & Up -
822-151333 FITTING
SN# 0T408999 & BelowFITTING
SN# 0T408999 & Below -
-877869A01 POWERHEAD ASSEMBLY
(225)POWERHEAD ASSEMBLY
(225) -
-854198R01 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
