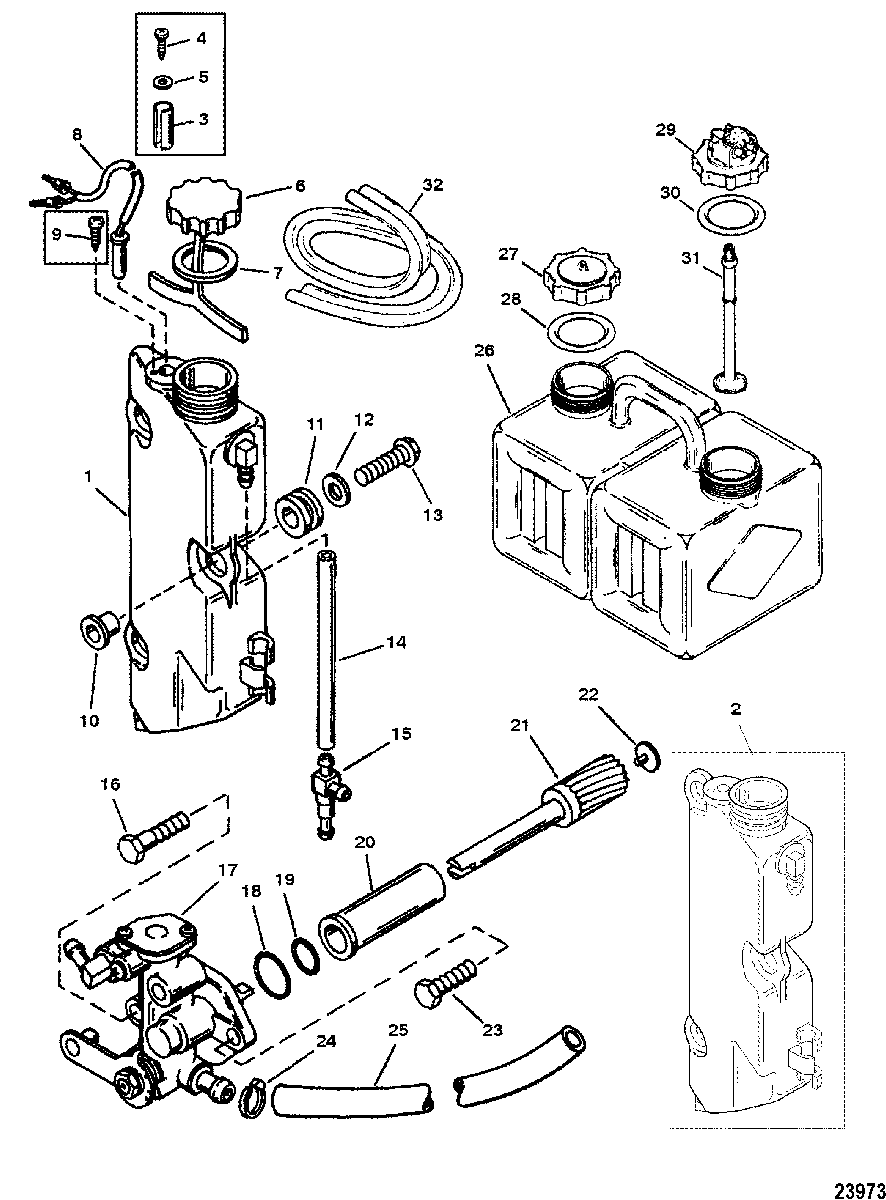

OIL INJECTION COMPONENTS для Mercury - 225 SEAPRO (3.0L CARB) 0G245605 THRU 0G760299
-
№АртикулНазвание
-
11270-818456A1 TANK, Oil
(USE W/O SPACER - REF/ #3) SN# 0G437999 & BelowTANK, Oil
(USE W/O SPACER - REF/ #3) SN# 0G437999 & Below -
11270-818456A1 TANK ASSEMBLY, Oil
SN# 0G437999 & BelowTANK ASSEMBLY, Oil
SN# 0G437999 & Below -
21270-830889A1 TANK ASSEMBLY, Oil
SN# 0G438000 & UpTANK ASSEMBLY, Oil
SN# 0G438000 & Up -
323-8260841 SPACERSPACER
-
410-58376 SCREW, (.164-18 x .375)SCREW, (.164-18 x .375)
-
512-72761 WASHER, (.203 x .562 x .060) Stainless SteelWASHER, (.203 x .562 x .060) Stainless Steel
-
636-814449A3 CAP ASSEMBLY
SN# 0G437999 & BelowCAP ASSEMBLY
SN# 0G437999 & Below -
636-814449A3 CAP ASSEMBLY
SN# 0G438000 & UpCAP ASSEMBLY
SN# 0G438000 & Up -
727-42999T GASKETGASKET
-
887-12886A6 SWITCH ASSEMBLY
SN# 0G437999 & BelowSWITCH ASSEMBLY
SN# 0G437999 & Below -
887-12886A7 SWITCH ASSEMBLY
SN# 0G438000 & UpSWITCH ASSEMBLY
SN# 0G438000 & Up -
910-12896 SCREW, (#8-18 x .310)
(USE W/O SPACER - REF/ #3)SCREW, (#8-18 x .310)
(USE W/O SPACER - REF/ #3) -
1023-19064 BUSHINGBUSHING
-
1125-825380001 GROMMETGROMMET
-
1212-56720 WASHER, (.330 x .750 x .060) Stainless SteelWASHER, (.330 x .750 x .060) Stainless Steel
-
1310-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1432-8M0108355 HOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G437999 & BelowHOSE, (57.00 Inches Bulk) (10 IN.)
SN# 0G437999 & Below -
1432-8M0108355 HOSE, (57.00 Inches Bulk) (8 IN.)
SN# 0G438000 & UpHOSE, (57.00 Inches Bulk) (8 IN.)
SN# 0G438000 & Up -
1522-424254 FITTINGFITTING
-
1610-82104530 SCREW (30MM)SCREW (30MM)
-
17815536T1 PUMP, OilPUMP, Oil
-
1825-11379 O-RINGO-RING
-
1925-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
2023-817631 BEARING, Driven GearBEARING, Driven Gear
-
2143-430204 GEAR, DrivenGEAR, Driven
-
22816974 BEARING, ThrustBEARING, Thrust
-
2310-82104520 SCREW, (M5 x 20) (20MM)SCREW, (M5 x 20) (20MM)
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2532-82381455 TUBING (8-1/2 IN.)TUBING (8-1/2 IN.)
-
261257-87421 TANKTANK
-
2736-43298A2 CAP ASSEMBLYCAP ASSEMBLY
-
2825-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
29816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
3025-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
3132-99802 TUBETUBE
-
3232-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
