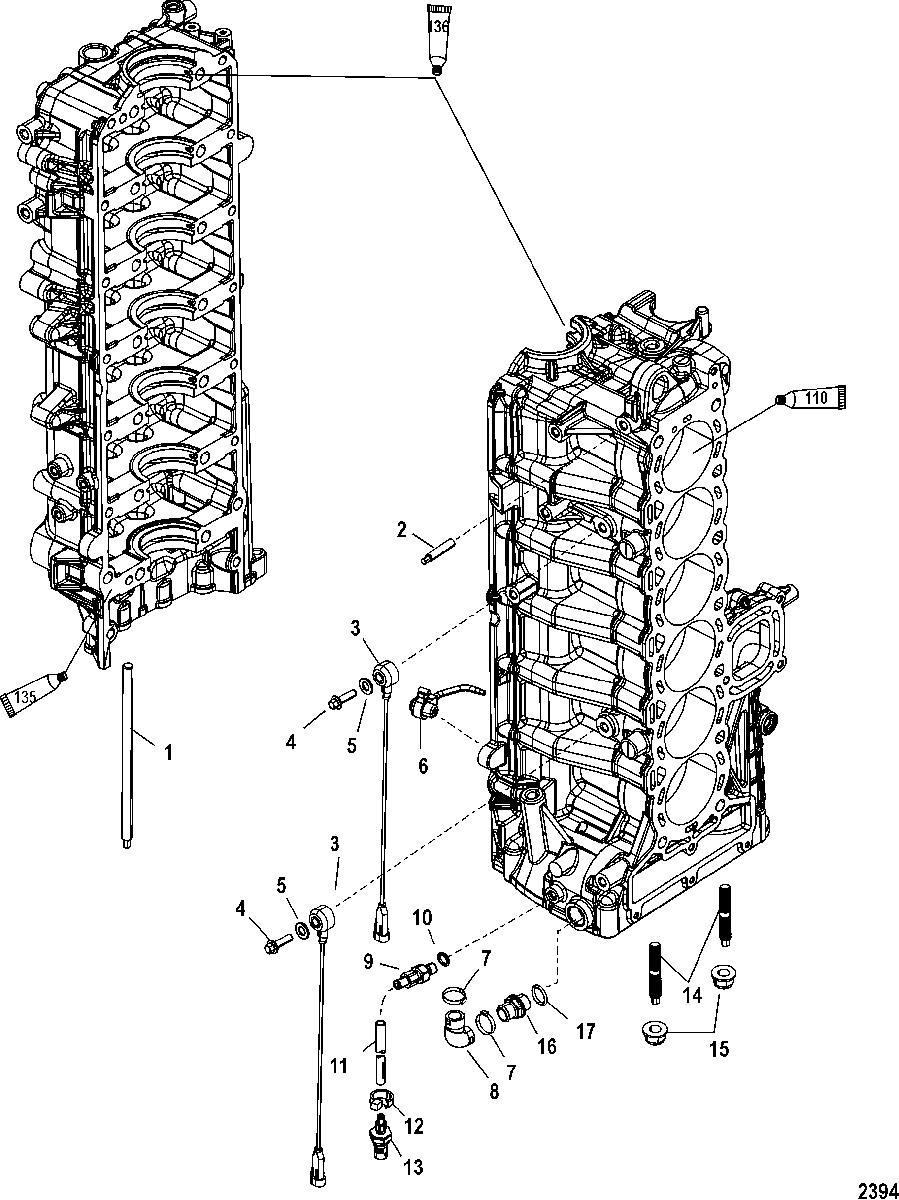

Port Cylinder Block Components для Mercury - 225 VERADO (4-STROKE)(6 CYL.) 0T980000 THRU 1B226999
-
№АртикулНазвание
-
116-8M0022158 STUDSTUD
-
216-8M0022162 STUDSTUD
-
38M6003194 SENSOR ASSEMBLY, KnockSENSOR ASSEMBLY, Knock
-
410-8M0103830 SCREW, (M10 x 35)SCREW, (M10 x 35)
-
512-4002319 WASHERWASHER
-
6884268A1 JET ASSEMBLY, OilJET ASSEMBLY, Oil
-
754-888988008 CLAMP, (34.6 mm)CLAMP, (34.6 mm)
-
832-885544002 HOSEHOSE
-
922-896094A01 FITTING ASSEMBLYFITTING ASSEMBLY
-
1025-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
1132-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches
SN# 1B074143 & BelowTUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 21.5 Inches
SN# 1B074143 & Below -
1132-85978571 TUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 29 Inches
SN# 1B074144 & UpTUBING, (52.00 Inches Bulk), To Water Pressure Sensor - Cut to 29 Inches
SN# 1B074144 & Up -
1254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
13881879T26 SENSOR ASSEMBLY, Water Pressure
SN# 1B074143 & BelowSENSOR ASSEMBLY, Water Pressure
SN# 1B074143 & Below -
13881879T26 SENSOR ASSEMBLY, Pressure, Water Pressure
SN# 1B074144 & UpSENSOR ASSEMBLY, Pressure, Water Pressure
SN# 1B074144 & Up -
1416-8M0000274 STUD, (M8 x 49)STUD, (M8 x 49)
-
1511-826365 NUT, (M8)NUT, (M8)
-
1622-885517A05 FITTING ASSEMBLY
SN# 1B074143 & BelowFITTING ASSEMBLY
SN# 1B074143 & Below -
1622-885517A05 FITTING ASSEMBLY
SN# 1B074144 & UpFITTING ASSEMBLY
SN# 1B074144 & Up -
1725-892077 O-RINGO-RING
-
-27-880552A07 GASKET SET, PowerheadGASKET SET, Powerhead
-
-61-895247R06 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
