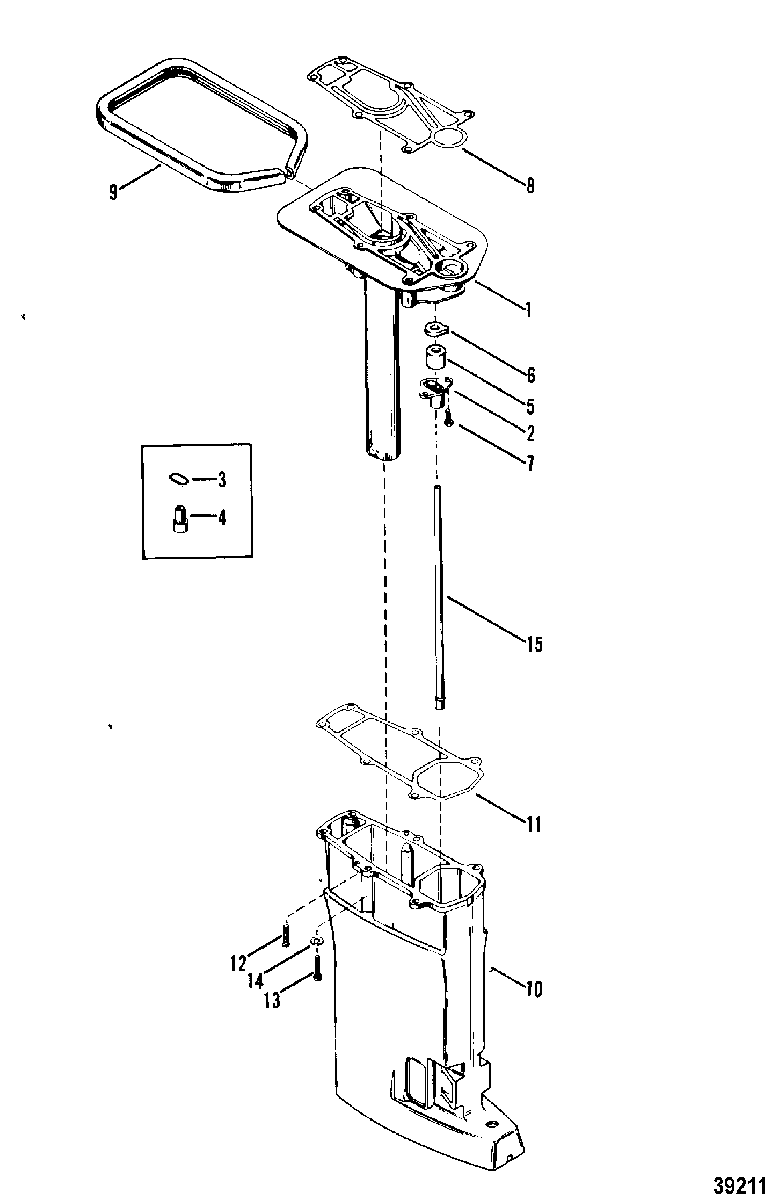

DRIVESHAFT HOUSING ASSEMBLY для Mercury - 25 (2 CYL.) 7166928 THRU 7207857
-
№АртикулНазвание
-
199702A7 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
296248A1 HOUSING, WATER TUBE
USED WITH REF. #3HOUSING, WATER TUBE
USED WITH REF. #3 -
325-36390 O-RING, WATER TUBE HOUSINGO-RING, WATER TUBE HOUSING
-
485164 SEAL, WATER TUBE
USED WITH REF. #3SEAL, WATER TUBE
USED WITH REF. #3 -
296248A1 HOUSING ASSEMBLY, WATER TUBE
NOT USED WITH REF. #3HOUSING ASSEMBLY, WATER TUBE
NOT USED WITH REF. #3 -
526-25329 SEAL, WATER TUBE
NOT USED WITH REF. #3SEAL, WATER TUBE
NOT USED WITH REF. #3 -
623-889715 SPACER, WATER TUBE
NOT USED WITH REF. #3SPACER, WATER TUBE
NOT USED WITH REF. #3 -
710-400035 SCREW, (M5 x 16), HOUSING TO ADAPTOR PLATESCREW, (M5 x 16), HOUSING TO ADAPTOR PLATE
-
827-41670006 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
9158662 SEAL, Adaptor PlateSEAL, Adaptor Plate
-
101588-8747A1 HOUSING ASSEMBLY, Driveshaft
SHORT SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & BelowHOUSING ASSEMBLY, Driveshaft
SHORT SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below -
101591-8749A1 HOUSING ASSEMBLY, Driveshaft
LONG SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & BelowHOUSING ASSEMBLY, Driveshaft
LONG SHAFT SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below -
101588-8747A1 HOUSING ASSEMBLY
SHORT SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & UpHOUSING ASSEMBLY
SHORT SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up -
101591-8749A1 HOUSING ASSEMBLY
LONG SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & UpHOUSING ASSEMBLY
LONG SHAFT SN# USA-6055408/BEL-9340566/CAN-7186768 & Up -
1127-85109 GASKET, DRIVESHAFT HOUSING
SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & BelowGASKET, DRIVESHAFT HOUSING
SN# USA-6055407/AUS-8074217/BEL-9340565/CAN-7186767 & Below -
1127-433374 GASKET, DRIVESHAFT HOUSING
SN# USA-6055408/BEL-9340566/CAN-7186768 & UpGASKET, DRIVESHAFT HOUSING
SN# USA-6055408/BEL-9340566/CAN-7186768 & Up -
1210-400035 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
1310-1993870 SCREW (60MM)SCREW (60MM)
-
1412-4002317 WASHER, DRIVESHAFT HOUSING SCREWWASHER, DRIVESHAFT HOUSING SCREW
-
1532-85116 TUBE, Water
SHORT SHAFTTUBE, Water
SHORT SHAFT -
1532-86292 TUBE, Water
LONG SHAFTTUBE, Water
LONG SHAFT -
-27-85168A80 GASKET SETGASKET SET
Все узлы модели:
- CARBURETOR ASSEMBLY
- CLAMP BRACKET ASSEMBLY
- COWLS
- CRANKSHAFT, PISTONS AND FLYWHEEL
- CYLINDER BLOCK AND COVER
- • DRIVESHAFT HOUSING ASSEMBLY
- ELECTRIC COMPONENTS(ELECTRIC)
- ELECTRICAL COMPONENTS(BELGIUM ENGINES)
- FUEL FILTER ASSEMBLY
- GEAR HOUSING(DRIVESHAFT)
- GEAR HOUSING(PROPELLER SHAFT)
- IGNITION COMPONENTS
- MISCELLANEOUS PARTS/ACCESSORIES
- STARTER ASSEMBLY, MANUAL
- STEERING HANDLE ASSEMBLY(MANUAL)
- SWIVEL BRACKET ASSEMBLY
- THROTTLE AND SHIFT LINKAGE(ELECTRIC)
- THROTTLE AND SHIFT LINKAGE(MANUAL)
