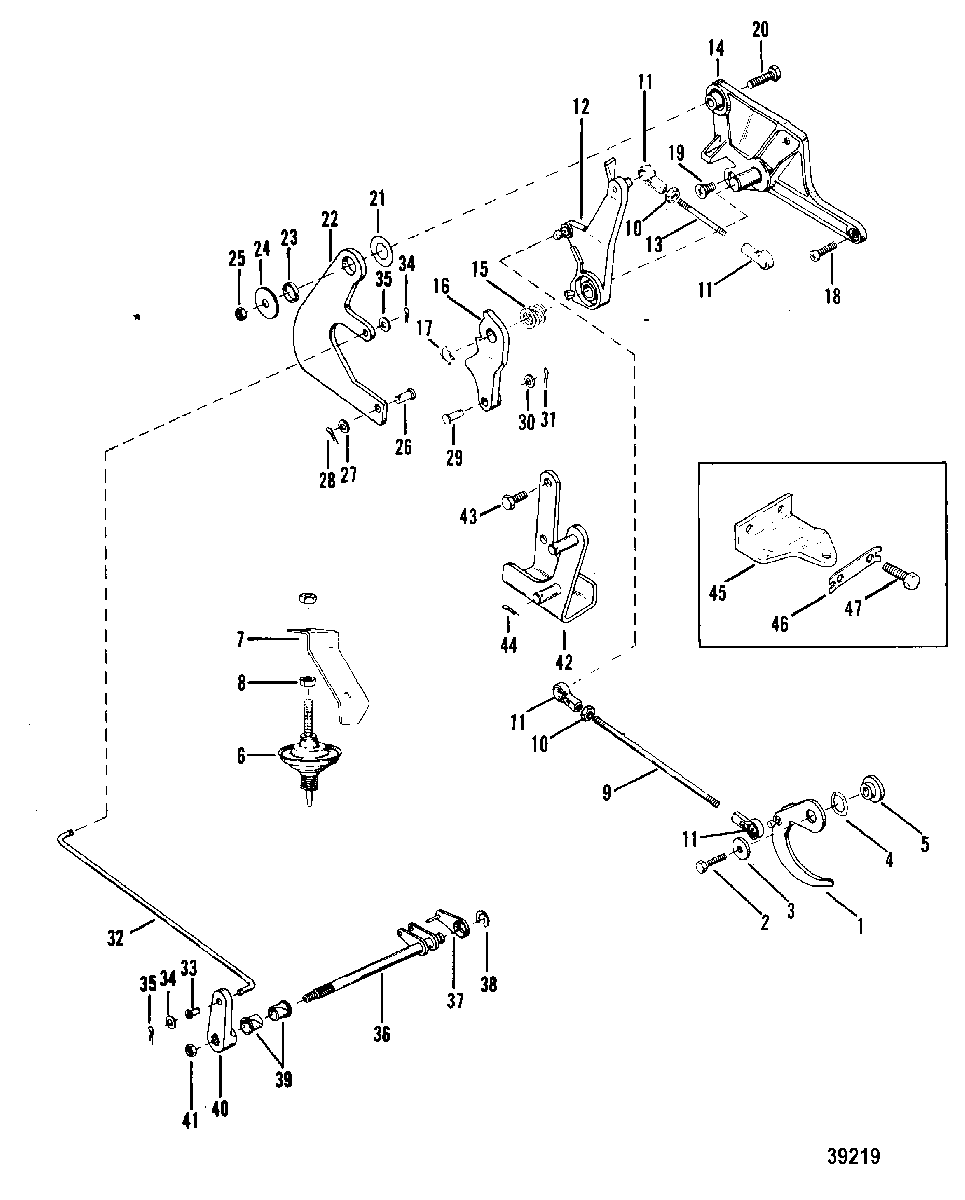

THROTTLE AND SHIFT LINKAGE(ELECTRIC) для Mercury - 25 (2 CYL.) 8073158 & Up
-
№АртикулНазвание
-
187997A1 CAM, Throttle
BC1A CARBURETORCAM, Throttle
BC1A CARBURETOR -
196096 CAM, Throttle
BC1B/BC1C CARBURETORCAM, Throttle
BC1B/BC1C CARBURETOR -
210-400035 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, (.312-24), DASHPOT TERMINALNUT, (.312-24), DASHPOT TERMINAL
-
998463A2 ROD ASSEMBLY, ThrottleROD ASSEMBLY, Throttle
-
1011-68219 NUT, (#10-32) Stainless Steel, THROTTLE RODNUT, (#10-32) Stainless Steel, THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
1292730 LEVER, CONTROLLEVER, CONTROL
-
13817429 TIMING RODTIMING ROD
-
1444299 PLATFOM, CONTROLPLATFOM, CONTROL
-
1524-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
1695034 LEVER, ACTUATINGLEVER, ACTUATING
-
1753-46250 RING, RetainingRING, Retaining
-
1810-40019108 SCREW, (M5 x 20), CONTROL PLATFORMSCREW, (M5 x 20), CONTROL PLATFORM
-
1910-40037126 SCREW, CONTROL PLATFORM (13MM)SCREW, CONTROL PLATFORM (13MM)
-
2010-40007128 SCREW, (M6 x 20), SHIFT LEVER TO PLATFORMSCREW, (M6 x 20), SHIFT LEVER TO PLATFORM
-
2112-95093 WASHER, SHIFT LEVER TO PLATFORMWASHER, SHIFT LEVER TO PLATFORM
-
2295035 LEVER, SHIFTLEVER, SHIFT
-
2323-95091 SLEEVE, SHIFT LEVER TO PLATFORMSLEEVE, SHIFT LEVER TO PLATFORM
-
2412-35280 WASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER SCREWWASHER, (.255 x .620 x .030) Stainless Steel, SHIFT LEVER SCREW
-
2511-401386 NUT, (M6), SHIFT LEVER SCREWNUT, (M6), SHIFT LEVER SCREW
-
2617-95029 PIN, SHIFT LEVERPIN, SHIFT LEVER
-
2712-71055 WASHER, SHIFT LEVER PINWASHER, SHIFT LEVER PIN
-
2818-210711 COTTER PIN, SHIFT LEVER PINCOTTER PIN, SHIFT LEVER PIN
-
2917-95784 PIN, ACTUATING LEVERPIN, ACTUATING LEVER
-
3012-71055 WASHER, ACTUATING LEVER PINWASHER, ACTUATING LEVER PIN
-
3118-210711 COTTER PIN, ACTUATING LEVER PINCOTTER PIN, ACTUATING LEVER PIN
-
3295025 SHIFT LINKSHIFT LINK
-
3323-96202 BUSHING, NYLON - SHIFT LINKBUSHING, NYLON - SHIFT LINK
-
3412-89302 WASHER, (.203 x .406 x .040), SHIFT LINKWASHER, (.203 x .406 x .040), SHIFT LINK
-
3518-210711 COTTER PIN, SHIFT LINKCOTTER PIN, SHIFT LINK
-
3695027A6 SHIFT SHAFT ASSEMBLY, HORIZONTALSHIFT SHAFT ASSEMBLY, HORIZONTAL
-
3795023 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3853-95019 RING, Retaining, LEVER TO SHIFT SHAFTRING, Retaining, LEVER TO SHIFT SHAFT
-
3923-60762 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
4017724A1 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
4111-401385 NUT, (M5), SHIFT SHAFTNUT, (M5), SHIFT SHAFT
-
4295033 BRACKET, REMOTE CONTROLBRACKET, REMOTE CONTROL
-
4310-4000327 SCREW, (M6 x 14), REMOTE CONTROL BRACKETSCREW, (M6 x 14), REMOTE CONTROL BRACKET
-
4418-210711 COTTER PIN, REMOTE CONTROL CABLESCOTTER PIN, REMOTE CONTROL CABLES
-
4596186A2 BRACKET ASSEMBLY, ATTACHINGBRACKET ASSEMBLY, ATTACHING
-
4696201 STRAP, KeySTRAP, Key
-
4710-1993325 SCREW, (M10 x 25), BRACKETSCREW, (M10 x 25), BRACKET
