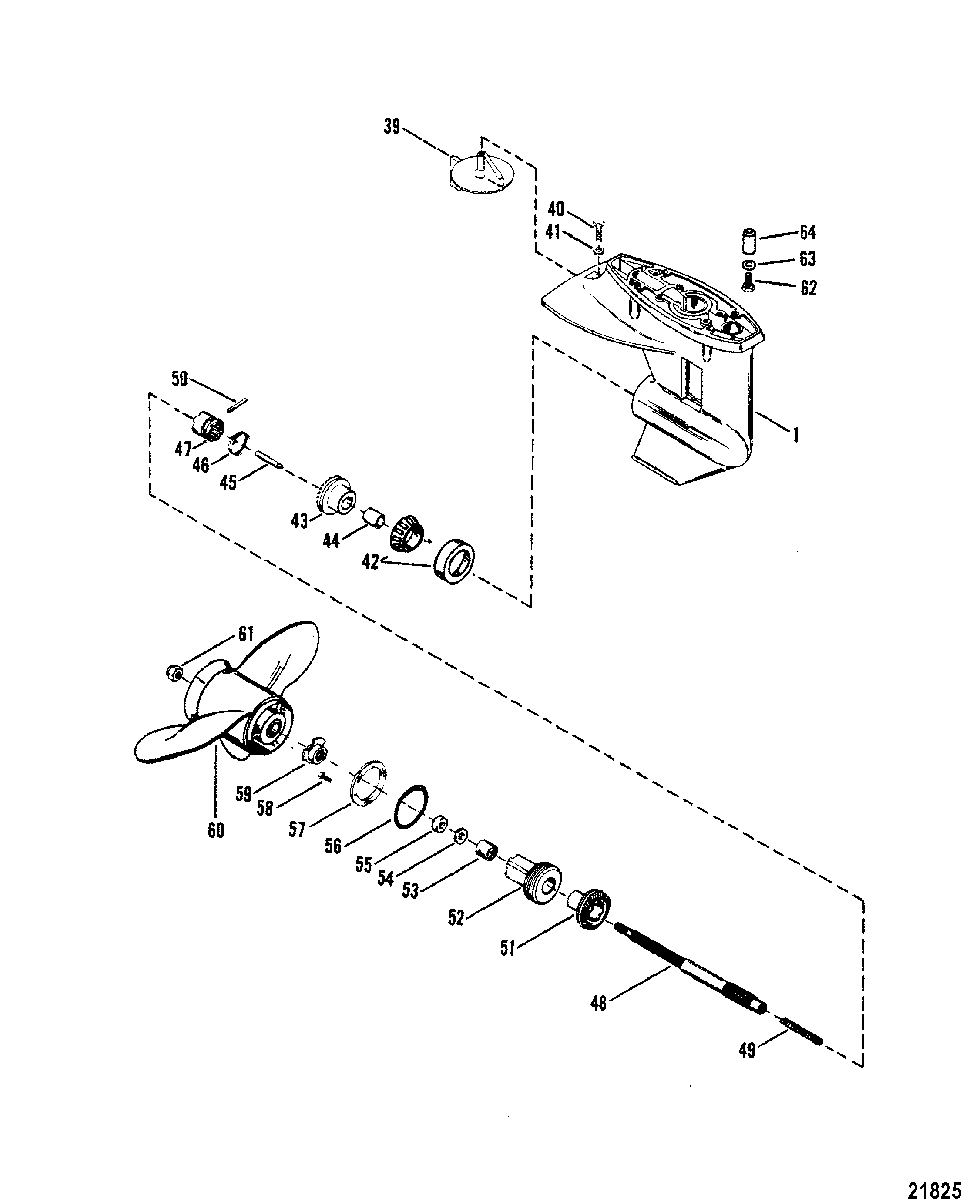

Gear Housing, Propeller Shaft для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0B238464 THRU 0G044026
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY (SHORT) (BLACK)GEAR HOUSING ASSEMBLY (SHORT) (BLACK)
-
-1665-8669T14 GEAR HOUSING ASSEMBLY (LONG) (BLACK)GEAR HOUSING ASSEMBLY (LONG) (BLACK)
-
-1665-8669T13 GEAR HOUSING ASSEMBLY (SHORT) (GRAY)GEAR HOUSING ASSEMBLY (SHORT) (GRAY)
-
-1665-8669T14 GEAR HOUSING ASSEMBLY (LONG) (GRAY)GEAR HOUSING ASSEMBLY (LONG) (GRAY)
-
-1665-8669A23 GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)GEAR HOUSING ASSEMBLY (SHORT) (TRACKER)
-
-1665-8669A24 GEAR HOUSING ASSEMBLY (LONG) (TRACKER)GEAR HOUSING ASSEMBLY (LONG) (TRACKER)
-
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Black (BLACK)GEAR HOUSING ASSEMBLY, Basic-Black (BLACK)
-
11600-8M0083538 GEAR HOUSING ASSEMBLY, Basic-Gray (GRAY)GEAR HOUSING ASSEMBLY, Basic-Gray (GRAY)
-
11665-8669A39 GEAR HOUSING ASSEMBLY (TRACKER)GEAR HOUSING ASSEMBLY (TRACKER)
-
3997-98432Q6 TRIM TABTRIM TAB
-
4010-4000354 SCREW, (M8 x 30), TRIM TABSCREW, (M8 x 30), TRIM TAB
-
4112-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
4231-8M0103470 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
4343-44213T1 GEAR ASSEMBLY, ForwardGEAR ASSEMBLY, Forward
-
4423-85557 BUSHINGBUSHING
-
4585094 FOLLOWER, CamFOLLOWER, Cam
-
4624-38114 SPRINGSPRING
-
4752-41040T CLUTCH (NO STAMPING)CLUTCH (NO STAMPING)
-
4752-41040T1 CLUTCH (STAMPED 52-41040--1)CLUTCH (STAMPED 52-41040--1)
-
4844-8166231 PROPELLER SHAFTPROPELLER SHAFT
-
4924-88680 SPRINGSPRING
-
5017-8M0020999 PINPIN
-
5143-99542T GEAR, ReverseGEAR, Reverse
-
5299906T1 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
5331-21739 BEARING, RollerBEARING, Roller
-
5426-41132 SEAL, Oil (INNER)SEAL, Oil (INNER)
-
5526-41131 SEAL, Oil (OUTER)SEAL, Oil (OUTER)
-
5625-85549 O-RINGO-RING
-
5787293 PLATEPLATE
-
5810-90883 SCREW, (M5 x 16)SCREW, (M5 x 16)
-
59851281 THRUST HUB ASSEMBLYTHRUST HUB ASSEMBLY
-
6048-19640A40 PROPELLERPROPELLER
-
6048-19638A40 PROPELLER (SEA PRO/MARATHON 25/SUPER 15)PROPELLER (SEA PRO/MARATHON 25/SUPER 15)
-
6111-88228 PROP NUTPROP NUT
-
6111-4013812 NUT (SEA PRO/MARATHON 25/SUPER 15)NUT (SEA PRO/MARATHON 25/SUPER 15)
-
6210-4000378 SCREW, (M10 x 35) Stainless SteelSCREW, (M10 x 35) Stainless Steel
-
6312-43328 WASHERWASHER
-
6423-41589 SPACER (USE WHERE APPLICABLE)SPACER (USE WHERE APPLICABLE)
-
-27-41499A88 GASKET SETGASKET SET
-
-26-85090A2 SEAL KITSEAL KIT
