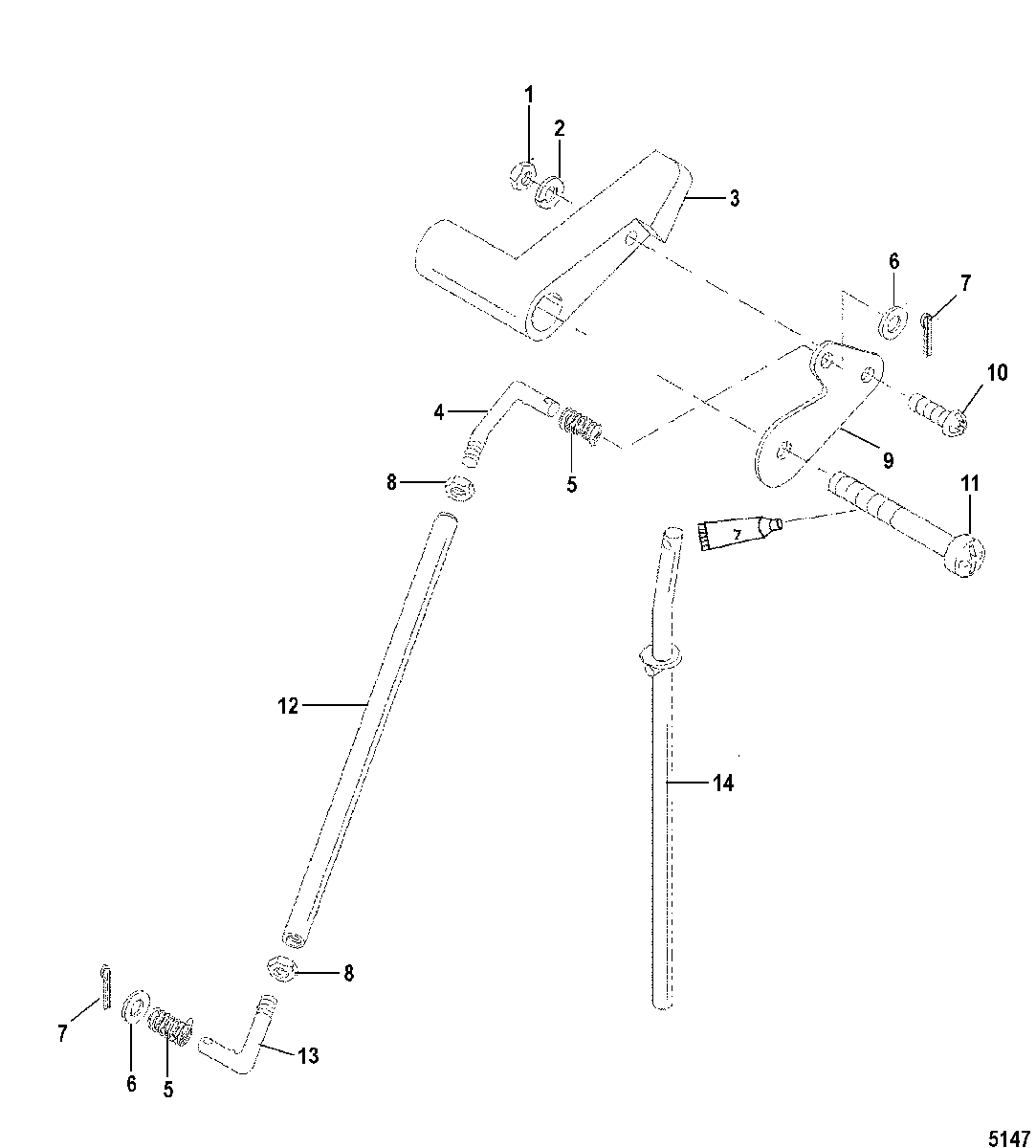

Jet Linkage для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 0P017000 THRU 0P325499
-
№АртикулНазвание
-
111-87599 NUTNUT
-
213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
38239522 SHIFT HANDLESHIFT HANDLE
-
4828251 ROD ENDROD END
-
524-828252 SPRINGSPRING
-
612-846673 WASHER, (.265 x .500 x .060) Stainless SteelWASHER, (.265 x .500 x .060) Stainless Steel
-
718-56206 COTTER PINCOTTER PIN
-
811-29598 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
9828253 LEVER, ShiftLEVER, Shift
-
1010-828254 SCREW, (#10-32 x .750)SCREW, (#10-32 x .750)
-
1110-828255 SCREW, (#10-32 x 2.50)SCREW, (#10-32 x 2.50)
-
12828256 SHIFT RODSHIFT ROD
-
13828257 ROD ENDROD END
-
14828258 TILT LATCH RODTILT LATCH ROD
