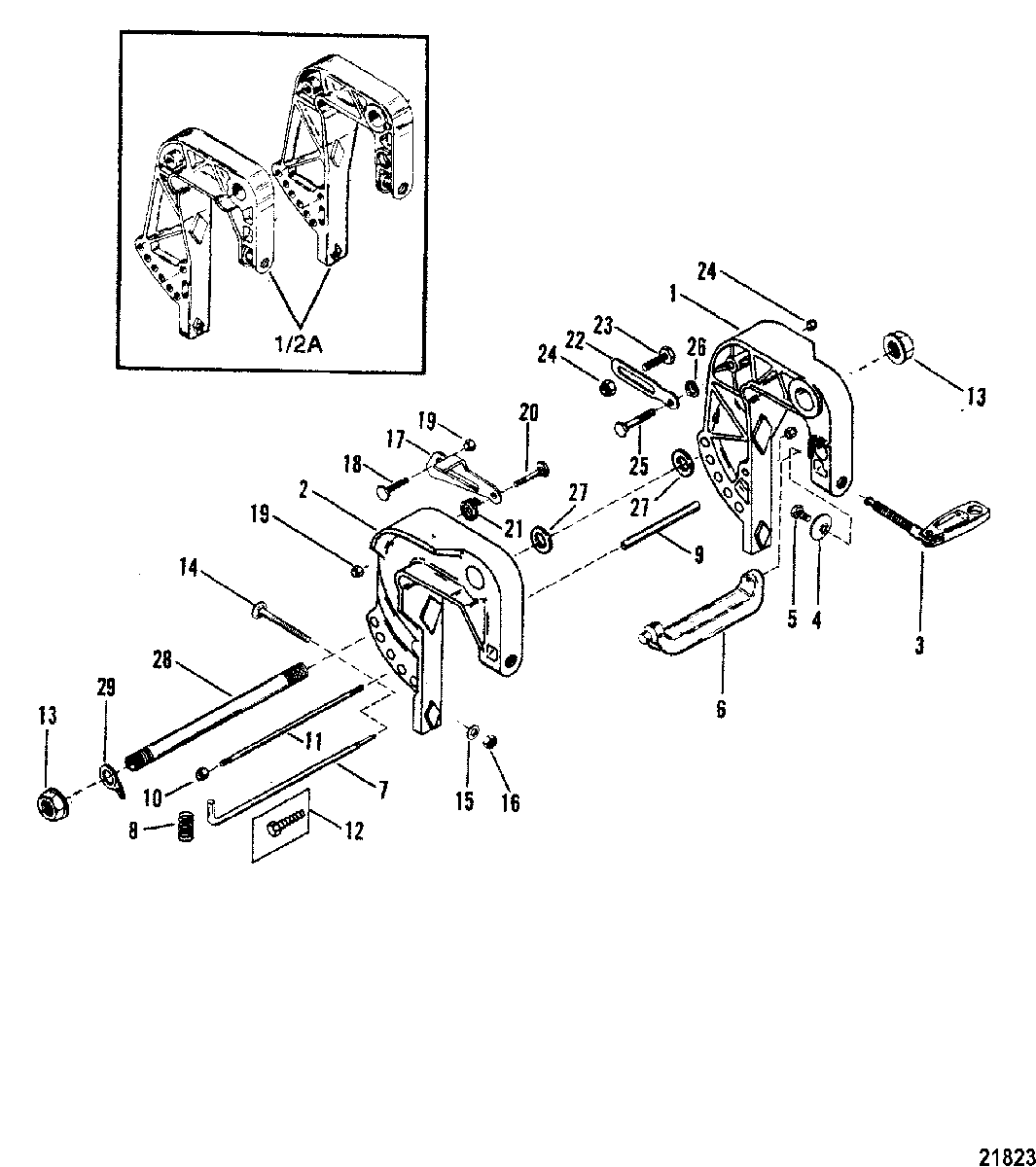

Clamp Bracket Assembly для Mercury - 25, 25 SEA PRO, SUPER 15 (2 CYL.) 9507381 THRU 9807908
-
№АртикулНазвание
-
1/2A1497-8794A5 BRACKET ASSEMBLY, Transom (PORT/STBD.) (BLACK)
6 HOLEBRACKET ASSEMBLY, Transom (PORT/STBD.) (BLACK)
6 HOLE -
1/2A1497-8794A6 BRACKET ASSEMBLY, Transom (PORT/STBD.) (GRAY)
6 HOLEBRACKET ASSEMBLY, Transom (PORT/STBD.) (GRAY)
6 HOLE -
11497-8794A7 BRACKET ASSEMBLY, Transom (PORT) (BLACK)
(5 Hole Stud Attaching)BRACKET ASSEMBLY, Transom (PORT) (BLACK)
(5 Hole Stud Attaching) -
21497-8796A5 BRACKET ASSEMBLY, Transom (STBD.) (BLACK)
(5 Hole Stud Attaching)BRACKET ASSEMBLY, Transom (STBD.) (BLACK)
(5 Hole Stud Attaching) -
11497-8794A7 BRACKET ASSEMBLY, Transom (PORT)(GRAY)
(5 Hole Stud Attaching)BRACKET ASSEMBLY, Transom (PORT)(GRAY)
(5 Hole Stud Attaching) -
21497-8796A6 BRACKET ASSEMBLY, Transom (STBD.)(GRAY)
(5 Hole Stud Attaching)BRACKET ASSEMBLY, Transom (STBD.)(GRAY)
(5 Hole Stud Attaching) -
11497-8794A9 BRACKET ASSEMBLY, Transom (PORT) (BLACK)
(5 Hole Screw Attaching)BRACKET ASSEMBLY, Transom (PORT) (BLACK)
(5 Hole Screw Attaching) -
21497-8796A7 BRACKET ASSEMBLY, Transom (STBD.) (BLACK)
(5 Hole Screw Attaching)BRACKET ASSEMBLY, Transom (STBD.) (BLACK)
(5 Hole Screw Attaching) -
11497-8794A9 BRACKET ASSEMBLY, Transom (PORT)(GRAY)
(5 Hole Screw Attaching)BRACKET ASSEMBLY, Transom (PORT)(GRAY)
(5 Hole Screw Attaching) -
21497-8796A7 BRACKET ASSEMBLY, Transom (STBD.)(GRAY)
(5 Hole Screw Attaching)BRACKET ASSEMBLY, Transom (STBD.)(GRAY)
(5 Hole Screw Attaching) -
11497-8794A9 BRACKET ASSEMBLY, Transom (PORT) (TRACKER)BRACKET ASSEMBLY, Transom (PORT) (TRACKER)
-
21497-8796A7 BRACKET ASSEMBLY, Transom (STBD.) (TRACKER)BRACKET ASSEMBLY, Transom (STBD.) (TRACKER)
-
310-92767A1 THUMB SCREW ASSEMBLY, (14 mm)THUMB SCREW ASSEMBLY, (14 mm)
-
310-92767A3 THUMB SCREW ASSEMBLY, (16 mm)THUMB SCREW ASSEMBLY, (16 mm)
-
412-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
510-768042 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
641042 HANDLE, CARRYINGHANDLE, CARRYING
-
717-99929A1 PIN ASSEMBLY, Tilt
USE WITH 6 HOLE BRACKETPIN ASSEMBLY, Tilt
USE WITH 6 HOLE BRACKET -
717-56373A2 PIN ASSEMBLY, Tilt
USE WITH 5 HOLE BRACKETPIN ASSEMBLY, Tilt
USE WITH 5 HOLE BRACKET -
824-92995 SPRING
USE WITH 5 HOLE BRACKETSPRING
USE WITH 5 HOLE BRACKET -
923-41041 SPACER
STUD ATTACHINGSPACER
STUD ATTACHING -
1011-400213 NUT, (M8) Stainless Steel
STUD ATTACHINGNUT, (M8) Stainless Steel
STUD ATTACHING -
1116-99928 STUD
STUD ATTACHINGSTUD
STUD ATTACHING -
923-818538 SPACER
SCREW ATTACHINGSPACER
SCREW ATTACHING -
1210-4000333 SCREW, (M6 x 40)
SCREW ATTACHINGSCREW, (M6 x 40)
SCREW ATTACHING -
1311-93164 NUT, (.875), TILT TUBENUT, (.875), TILT TUBE
-
1410-814945 SCREW, (.312-18 x 3.500) Stainless Steel, CLAMP BRACKET TO TRANSOMSCREW, (.312-18 x 3.500) Stainless Steel, CLAMP BRACKET TO TRANSOM
-
1512-67981 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-815848 NUT, (.312), CLAMP BRACKET BOLTNUT, (.312), CLAMP BRACKET BOLT
-
1796965 LEVER, TILT STOP - STARBOARD STARLEVER, TILT STOP - STARBOARD STAR
-
1810-41523 SCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), LEVER TO SWIVEL BRACKET
-
1911-826709109 NUT, (.250-28), TILT STOP LEVER SCREWNUT, (.250-28), TILT STOP LEVER SCREW
-
2010-41524 SCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKETSCREW, (.250-28 x 1.75), LEVER TO CLAMP BRACKET
-
2124-44581 SPRING, TILT STOP LEVER SCREWSPRING, TILT STOP LEVER SCREW
-
2290901 STRAP, TILT STOP - PORT SIDESTRAP, TILT STOP - PORT SIDE
-
2310-41523 SCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKETSCREW, (.250-28 x 1.00), STRAP TO SWIVEL BRACKET
-
2411-826709109 NUT, (.250-28), TILT STOP STRAP SCREWNUT, (.250-28), TILT STOP STRAP SCREW
-
2510-41524 SCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKETSCREW, (.250-28 x 1.75), STRAP TO CLAMP BRACKET
-
2613-31030 WAVE WASHER, TILT STOP STRAP SCREWWAVE WASHER, TILT STOP STRAP SCREW
-
2712-71421 WASHER, Nylon, TILT TUBE (NYLON)WASHER, Nylon, TILT TUBE (NYLON)
-
288M0035075 TILT TUBETILT TUBE
-
2954-8M0085928 CLIP, SAFETYCLIP, SAFETY
