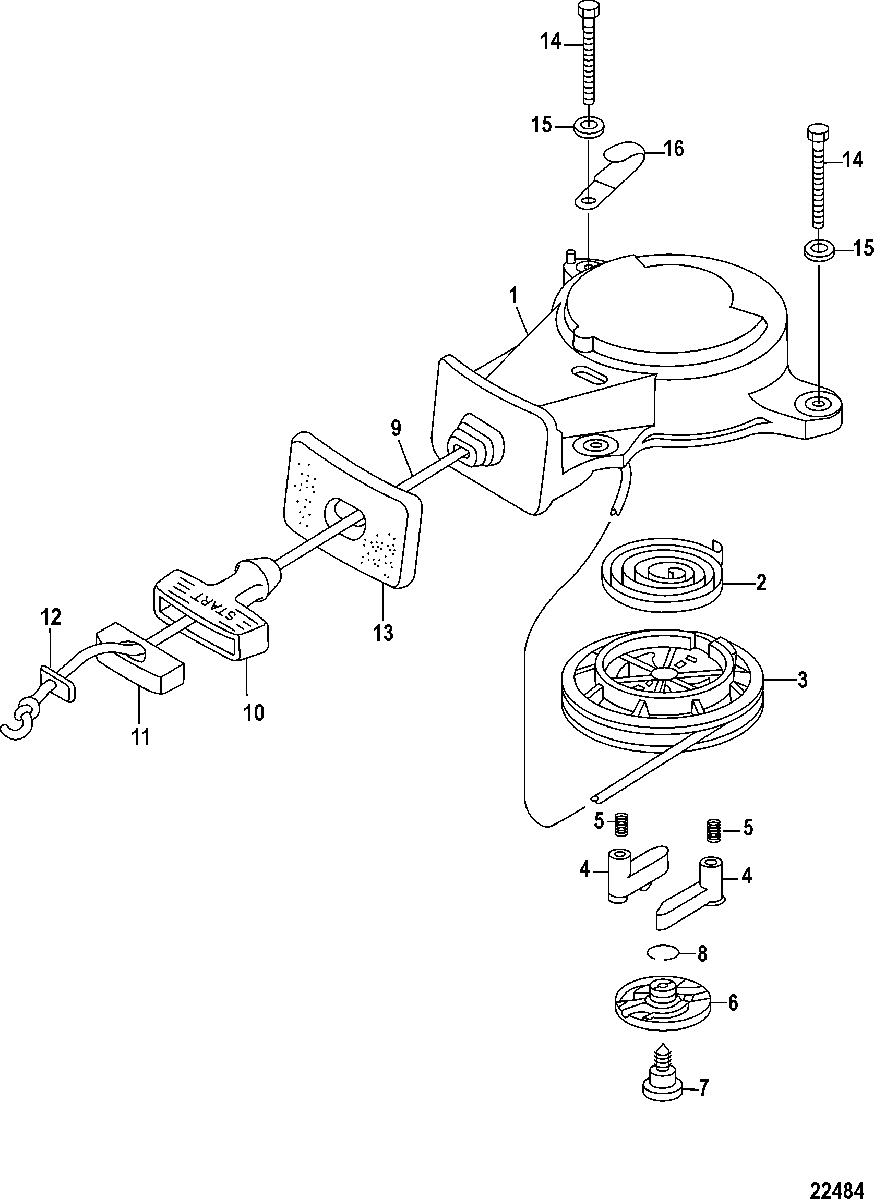

Recoil Starter для Mercury - 2.5 (4-STROKE) Carb 0R131842 & Up
-
№АртикулНазвание
-
1898103T61 STARTER ASSEMBLY, RecoilSTARTER ASSEMBLY, Recoil
-
224-898101316 SPRINGSPRING
-
3898101317 REELREEL
-
4898101318 RATCHETRATCHET
-
524-898101319 SPRING, ReturnSPRING, Return
-
6898101320 PLATE, FrictionPLATE, Friction
-
710-898101321 SCREWSCREW
-
824-898101322 SPRING, FrictionSPRING, Friction
-
950-8M0110703 ROPEROPE
-
10898101324 HANDLE, StarterHANDLE, Starter
-
11898101325 ANCHOR, RopeANCHOR, Rope
-
12898101366 PLATE, Rope AnchorPLATE, Rope Anchor
-
138M0138706 SEAL, StarterSEAL, Starter
-
1410-898101327 SCREWSCREW
-
1512-953921 WASHERWASHER
-
1654-803563005 CLAMPCLAMP
-
-37-898103193 DECAL, InterferanceDECAL, Interferance
