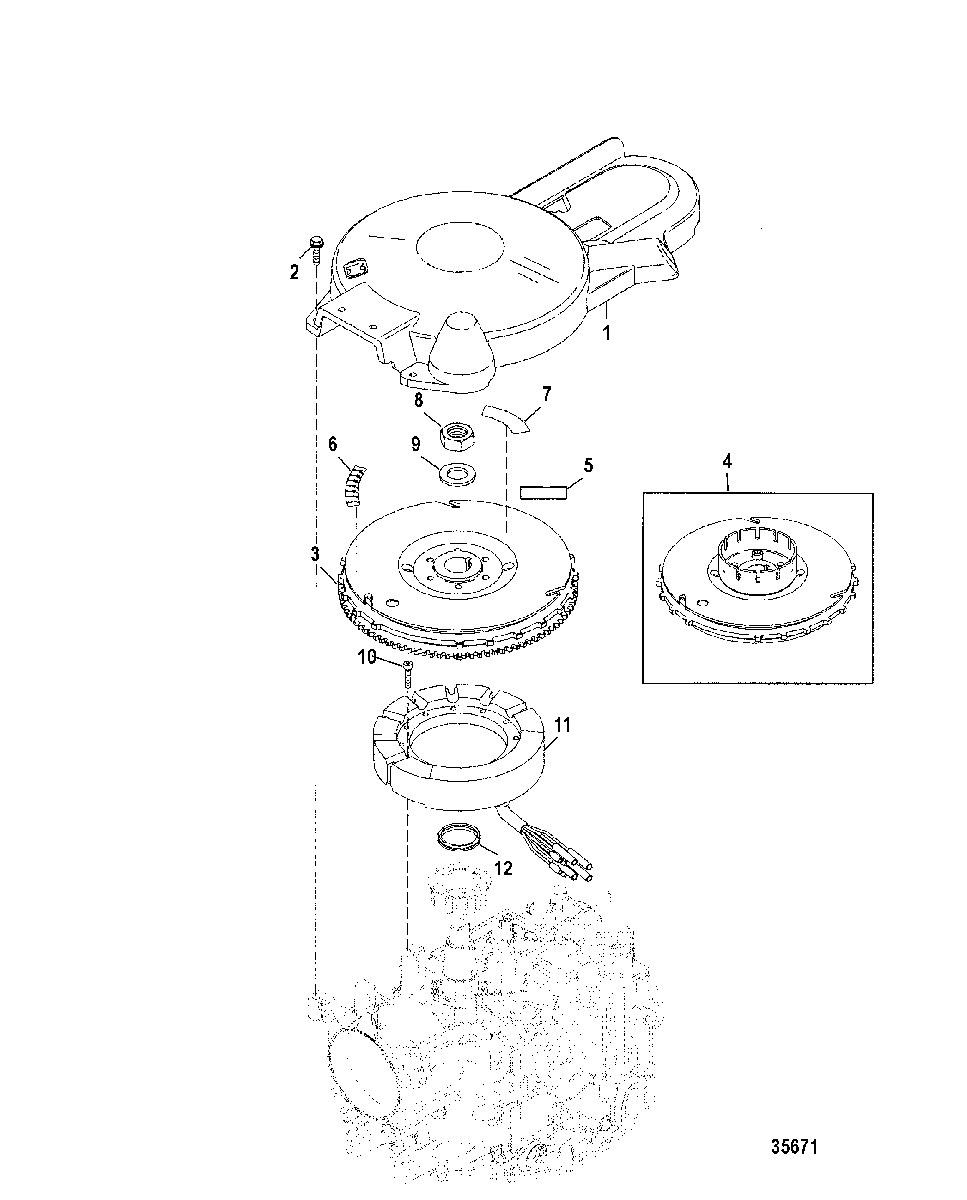

Flywheel для Mercury - 25 (4-STROKE) 0G590000 THRU 0G760299
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVER
ELECTRICFLYWHEEL COVER
ELECTRIC -
210-8248326 SCREW, (M6 x 25)
ELECTRICSCREW, (M6 x 25)
ELECTRIC -
3284-832010T32 FLYWHEEL
ELECTRICFLYWHEEL
ELECTRIC -
4200-8M0118174 FLYWHEEL
MANUALFLYWHEEL
MANUAL -
5NSS NOT SOLD SEPARATE, Decal-Warning-Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel
-
6NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
7NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
811-893789 NUTNUT
-
912-893762 WASHERWASHER
-
1010-4007325 SCREW, (M5 x 25)
MANUALSCREW, (M5 x 25)
MANUAL -
11398-852386T8 STATOR
MANUALSTATOR
MANUAL -
1010-4013930 SCREW, (M5 x 30)
ELECTRICSCREW, (M5 x 30)
ELECTRIC -
11398-852387T9 STATOR
ELECTRICSTATOR
ELECTRIC -
12834838 LOAD RINGLOAD RING
