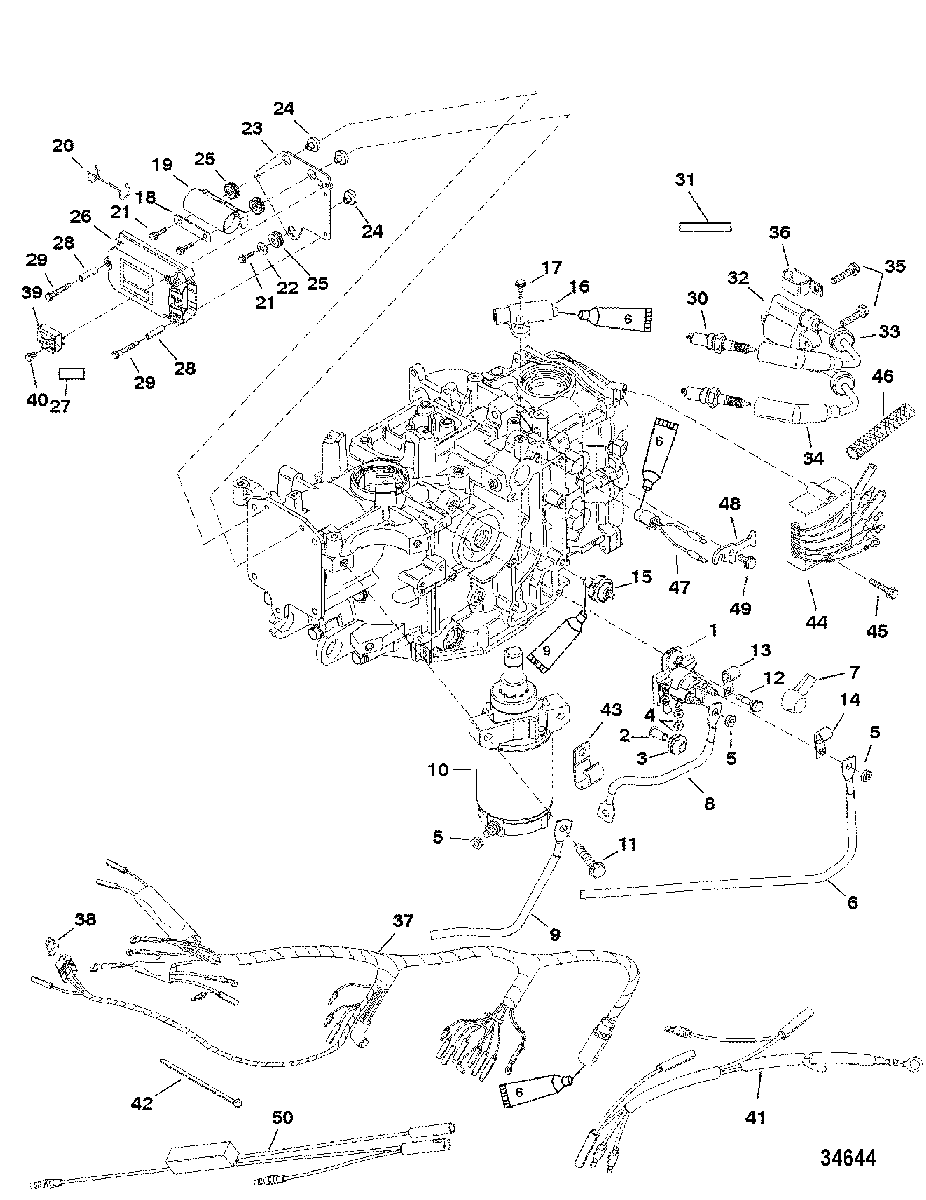

Electrical Components(S/N-0G960499 and Below) для Mercury - 25 (4-STROKE) 0P017000 THRU 0P153499
-
№АртикулНазвание
-
189-850187T1 SOLENOID ASSEMBLY
ElectricSOLENOID ASSEMBLY
Electric -
223-818968 BUSHING
ElectricBUSHING
Electric -
325-818967 GROMMET
ElectricGROMMET
Electric -
411-26419 NUT, (#8-32) Brass
ElectricNUT, (#8-32) Brass
Electric -
511-94330 NUT, (.250-20) Brass
ElectricNUT, (.250-20) Brass
Electric -
684-88439A9 CABLE ASSEMBLY, Battery - Positive
ElectricCABLE ASSEMBLY, Battery - Positive
Electric -
785-79695T BOOT, Insulator - Black
ElectricBOOT, Insulator - Black
Electric -
884-93388A13 CABLE ASSEMBLY
ElectricCABLE ASSEMBLY
Electric -
984-88439A4 CABLE ASSEMBLY, Battery - Negative
ElectricCABLE ASSEMBLY, Battery - Negative
Electric -
1050-893886T STARTER MOTOR ASSEMBLY
ElectricSTARTER MOTOR ASSEMBLY
Electric -
1110-40011153 SCREW, (M8 x 45) Stainless Steel
ElectricSCREW, (M8 x 45) Stainless Steel
Electric -
1110-40011149 SCREW, (M8 x 25) Stainless Steel
ManualSCREW, (M8 x 25) Stainless Steel
Manual -
1210-82684430 SCREW, (M6 x 30)
ElectricSCREW, (M6 x 30)
Electric -
1210-8248324 SCREW, (M6 x 16)
ManualSCREW, (M6 x 16)
Manual -
1354-65292 J CLIP
ElectricJ CLIP
Electric -
1454-54457 J CLIP
ManualJ CLIP
Manual -
1587-8M0098207 PRESSURE SWITCHPRESSURE SWITCH
-
168M0082988 SENSORSENSOR
-
1710-40011107 SCREW, (M5 x 16) Stainless SteelSCREW, (M5 x 16) Stainless Steel
-
18856040 BRACKET
ElectricBRACKET
Electric -
19856836001 RETAINER
ElectricRETAINER
Electric -
2092753 RETAINER
ElectricRETAINER
Electric -
2110-82129125 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
2212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
23856837 PLATEPLATE
-
2423-826618 BUSHINGBUSHING
-
2525-834985 GROMMETGROMMET
-
2687843304S ECM, Engine Control ModuleECM, Engine Control Module
-
2737-881865 DECAL, Caution, Start In GearDECAL, Caution, Start In Gear
-
2823-8539201 BUSHINGBUSHING
-
2910-82129140 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
3033-827858Q SPARK PLUG, NGK-DPR6EA-9SPARK PLUG, NGK-DPR6EA-9
-
31NSS NOT SOLD SEPARATE, Decal-Coil IdentificationNOT SOLD SEPARATE, Decal-Coil Identification
-
32339-859738T1 COIL ASSEMBLY, IgnitionCOIL ASSEMBLY, Ignition
-
3325-82069M GROMMETGROMMET
-
3484-825102A1 HIGH TENSION LEADHIGH TENSION LEAD
-
3510-82684430 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
3654-28700 CLAMPCLAMP
-
3784-850167A7 HARNESS ASSEMBLY, Engine Wiring
ManualHARNESS ASSEMBLY, Engine Wiring
Manual -
3784-830279A7 HARNESS ASSEMBLY, Engine Wiring
ElectricHARNESS ASSEMBLY, Engine Wiring
Electric -
3888-812619 FUSE, Yellow - 20 Ampere
ElectricFUSE, Yellow - 20 Ampere
Electric -
39828054 COVER, Fuse
ElectricCOVER, Fuse
Electric -
4010-82129110 SCREW, (M6 x 10)
ElectricSCREW, (M6 x 10)
Electric -
4184-852375A6 HARNESS ASSEMBLY, Extension
Electric HandleHARNESS ASSEMBLY, Extension
Electric Handle -
4254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
4354-47483 J CLIP
ManualJ CLIP
Manual -
44883071T REGULATOR, Voltage
ElectricREGULATOR, Voltage
Electric -
4510-8248329 SCREW, (M6 x 40)
ElectricSCREW, (M6 x 40)
Electric -
4623-82459612 OVERSLEEVE
ElectricOVERSLEEVE
Electric -
4713536A12 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
488533071 RETAINERRETAINER
-
4910-40011126 SCREW, (M6 x 13) Stainless SteelSCREW, (M6 x 13) Stainless Steel
-
5017461A7 HORN DRIVER ASSEMBLY
Manual - Use where ApplicableHORN DRIVER ASSEMBLY
Manual - Use where Applicable -
-61-854236T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
