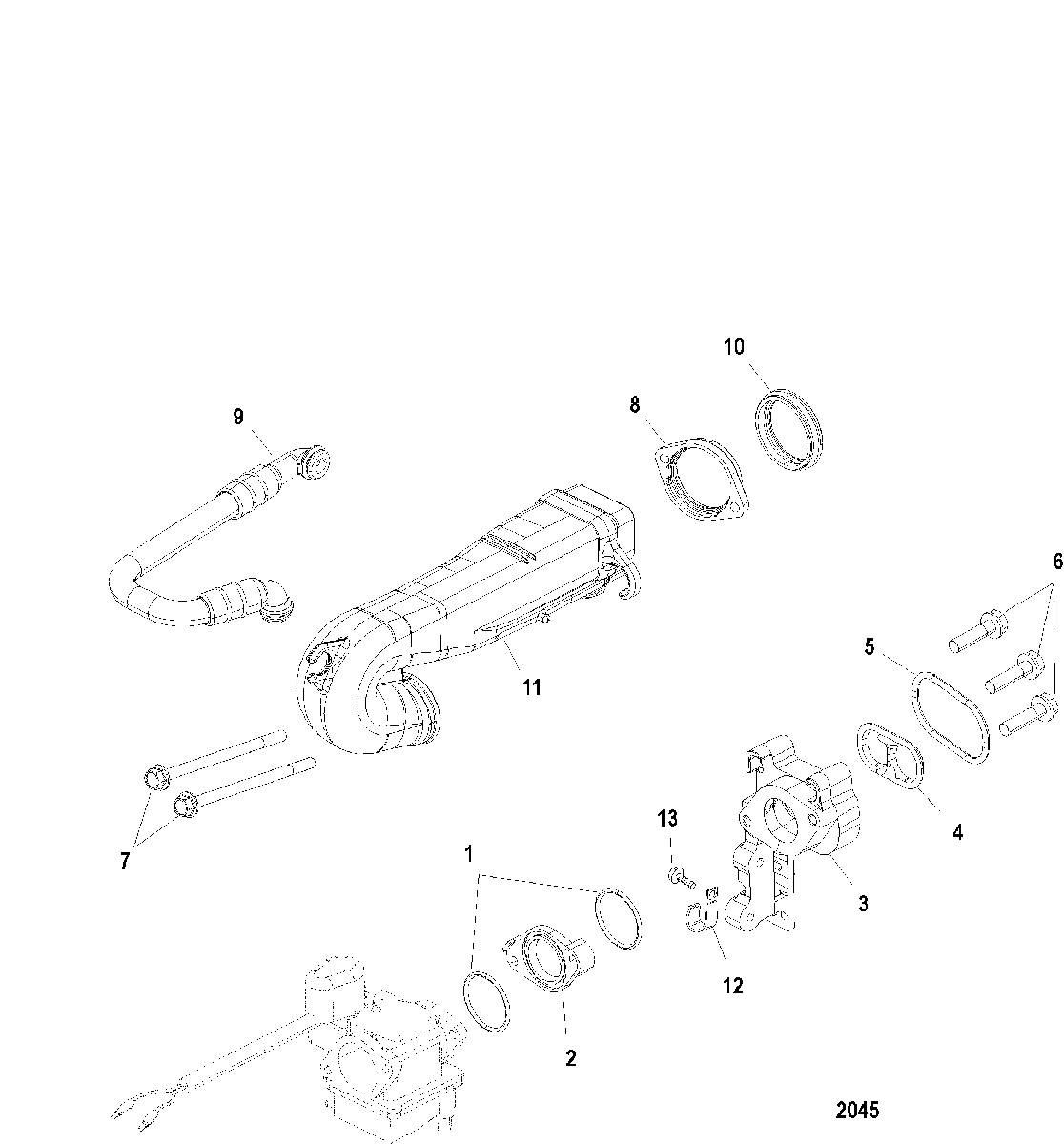

Intake для Mercury - 25 (4-STROKE) 0T409000 THRU 1B344298
-
№АртикулНазвание
-
125-33466 O-RINGO-RING
-
28536451 ISOLATOR, CarburetorISOLATOR, Carburetor
-
3830277F01 DIFFUSER
SN# USA-0T800999/BEL-0P267999 & BelowDIFFUSER
SN# USA-0T800999/BEL-0P267999 & Below -
3830277F01 DIFFUSER
SN# USA-0T801000/BEL-0P268000 & UpDIFFUSER
SN# USA-0T801000/BEL-0P268000 & Up -
4855219 INSERTINSERT
-
5878431 SEALSEAL
-
610-8248326 SCREW, (M6 x 25 MM)SCREW, (M6 x 25 MM)
-
710-821704100 SCREW, M6 x 100SCREW, M6 x 100
-
8855838 CLAMPCLAMP
-
932-854787A1 HOSE ASSEMBLY, Breather, To Breather CoverHOSE ASSEMBLY, Breather, To Breather Cover
-
10855837 SEALSEAL
-
11832011A2 INTAKE ASSEMBLY, AirINTAKE ASSEMBLY, Air
-
1254-28700 CLAMPCLAMP
-
1310-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
-27-830270A02 GASKET SETGASKET SET
