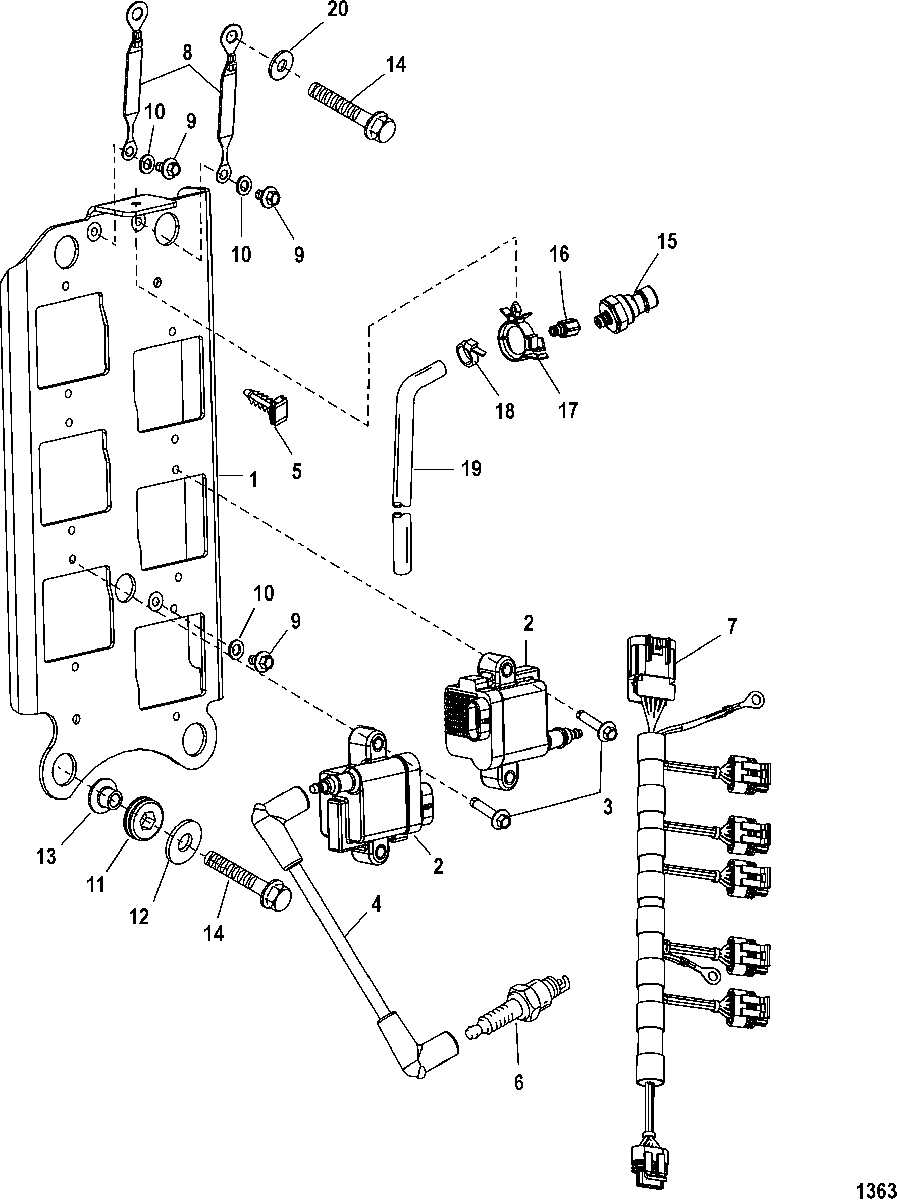

COIL PLATE для Mercury - 250 (3.0L EFI) 0T409000 THRU 0T800999
-
№АртикулНазвание
-
1850295T2 PLATE, Coil MountingPLATE, Coil Mounting
-
2300-8M0077471 COIL KITCOIL KIT
-
310-82129130 SCREW, (M6 x 30)SCREW, (M6 x 30)
-
484-881908T CABLE SETCABLE SET
-
554-828991T CLIPCLIP
-
633-941 SPARK PLUGSPARK PLUG
-
784-882757T1 HARNESS ASSEMBLY, CoilHARNESS ASSEMBLY, Coil
-
-879346A51 HARNESS ASSEMBLY, 5 PinHARNESS ASSEMBLY, 5 Pin
-
884-858414A1 CABLE ASSEMBLY, BraidedCABLE ASSEMBLY, Braided
-
910-82129110 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
1012-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1125-833155 GROMMETGROMMET
-
1212-4002318 WASHERWASHER
-
1323-8502341 BUSHINGBUSHING
-
1410-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
15881879A7 SENSOR KIT, (0-50 PSI)SENSOR KIT, (0-50 PSI)
-
1622-892403 FITTINGFITTING
-
1754-883066 CLIP, (.865)CLIP, (.865)
-
1854-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1932-85978571 TUBING, (44.00 Inches Bulk) (Cut to 18 Inches)TUBING, (44.00 Inches Bulk) (Cut to 18 Inches)
-
2012-36001 WASHERWASHER
