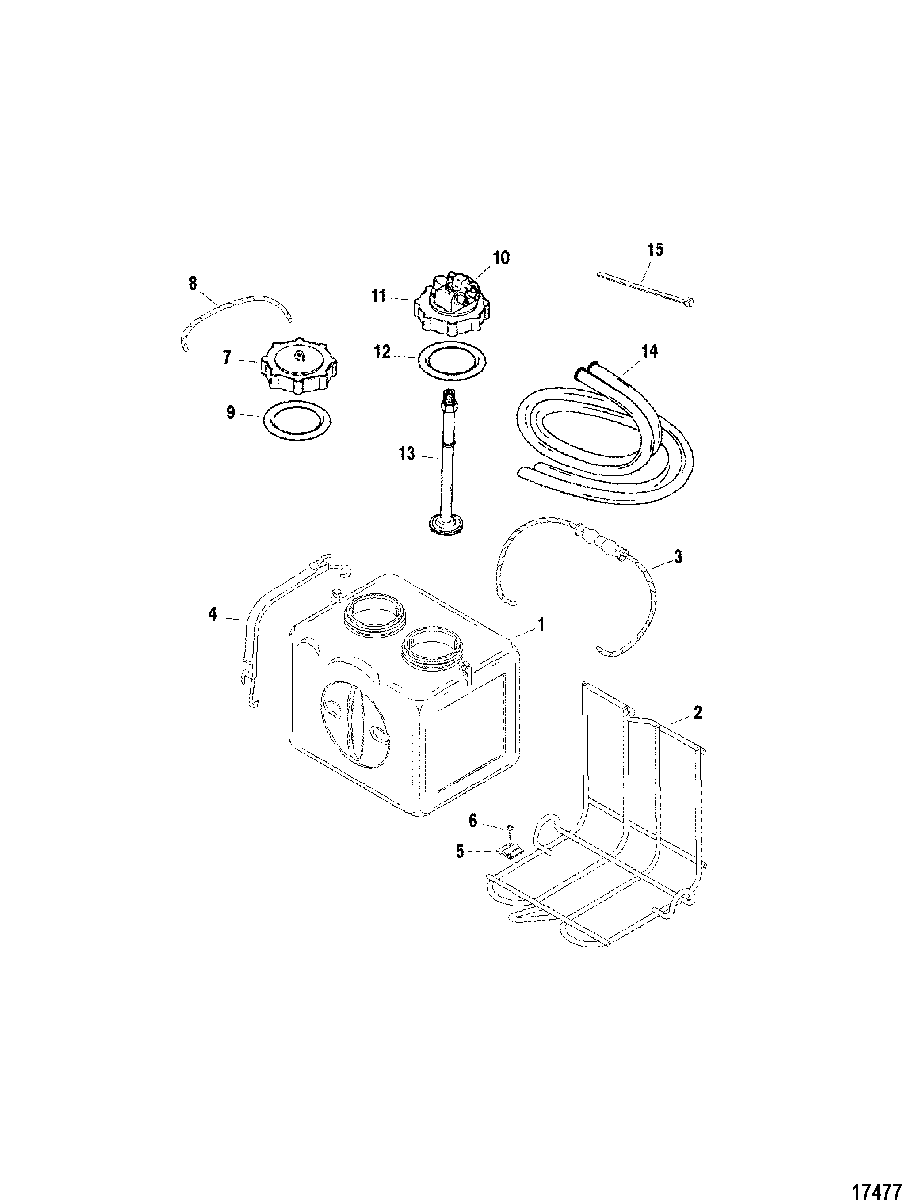

Reservoir Kit-Remote Oil(15943A1) для Mercury - 250 (3.0L EFI) 1B417702 THRU 1B504988
-
№АртикулНазвание
-
-15943A1 RESERVOIR KIT, OilRESERVOIR KIT, Oil
-
115943A1 TANK ASSEMBLY, Oil (1.8 Gallon Tank)TANK ASSEMBLY, Oil (1.8 Gallon Tank)
-
2NSS NOT SOLD SEPARATE, BRACKET, Tank Mount
(Also sold with Bracket Kit Below)NOT SOLD SEPARATE, BRACKET, Tank Mount
(Also sold with Bracket Kit Below) -
3NSS NOT SOLD SEPARATE, HANDLE/ROPENOT SOLD SEPARATE, HANDLE/ROPE
-
-824954A1 BRACKET KIT, Oil Reservoir Hold Down
(Includes ref. 2)BRACKET KIT, Oil Reservoir Hold Down
(Includes ref. 2) -
412323A1 CORD/HOOK KITCORD/HOOK KIT
-
512320 BRACKET, Hold DownBRACKET, Hold Down
-
610-79968 SCREW, (#12-11 x .750)SCREW, (#12-11 x .750)
-
736-43298A2 CAP ASSEMBLY, Oil ReservoirCAP ASSEMBLY, Oil Reservoir
-
8NSS NOT SOLD SEPARATE, CORDNOT SOLD SEPARATE, CORD
-
925-11332 O-RING, (2.225 x .210), CapO-RING, (2.225 x .210), Cap
-
10816190A4 HOUSING ASSEMBLY, AdapterHOUSING ASSEMBLY, Adapter
-
1136-43298A2 CAP ASSEMBLY, Housing AdaptorCAP ASSEMBLY, Housing Adaptor
-
1225-11332 O-RING, (2.225 x .210)O-RING, (2.225 x .210)
-
1332-99802 TUBE, Oil Pick UpTUBE, Oil Pick Up
-
1432-99439 HOSE, (114.00 Inches)HOSE, (114.00 Inches)
-
1554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
